23 Click Save Part Family. Stay in the Part Builder environment for the next
exercise.
To continue this tutorial, go to

Exercise 4: Finalizing the Part

In this exercise, you will add the final model and size parameters that will
allow the part geometry to be modified in AutoCAD Civil 3D.
For more information, see the AutoCAD Civil 3D Help topic Understanding
Part Builder.
This exercise continues from
(page 717)
1 Continue from the previous exercise in the Part Builder environment.
Click the View tab

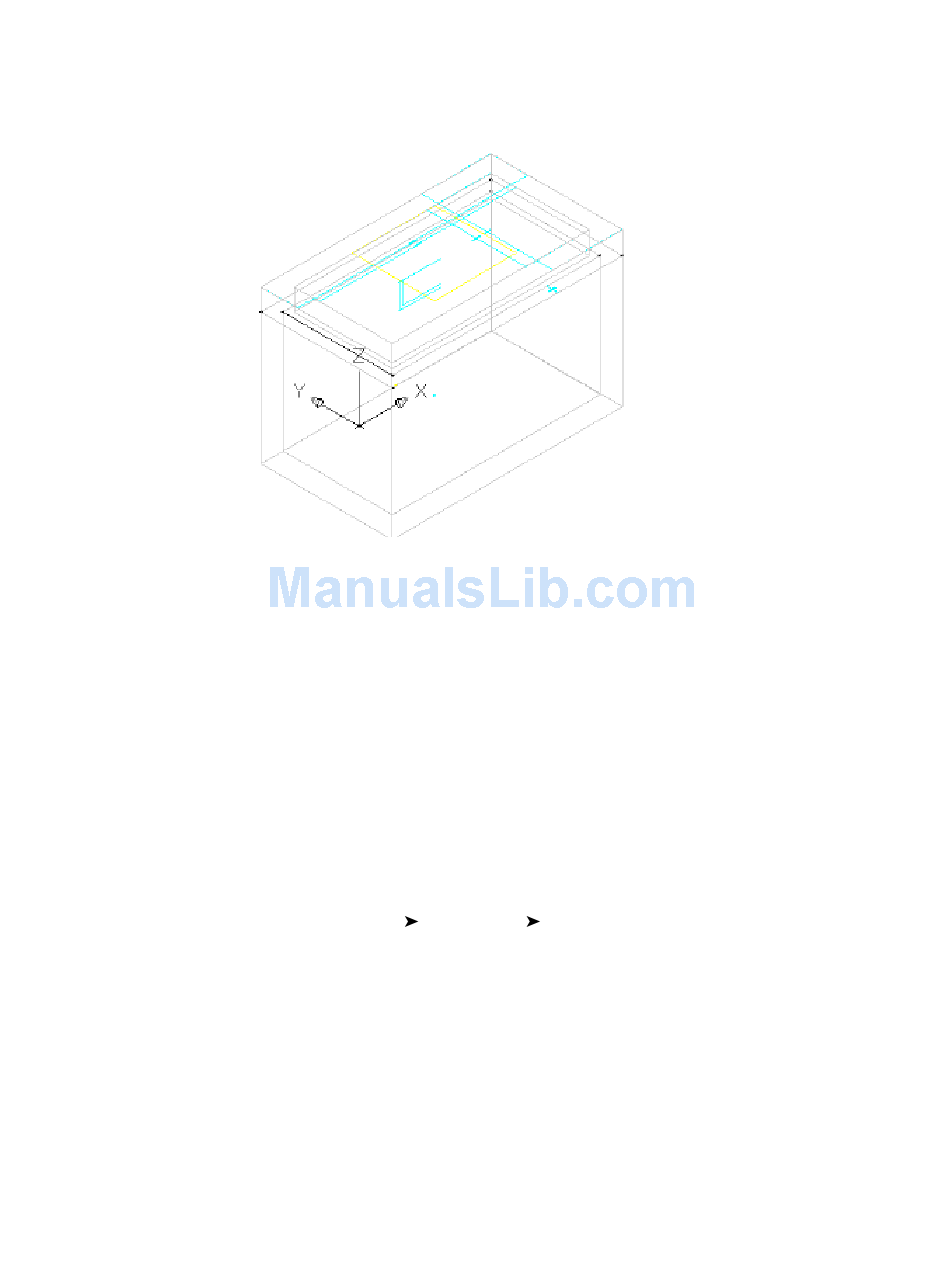

the Size Parameters that will be available in AutoCAD Civil 3D with the
actual dimensions of the Top Section. This view makes it easier to perform
the next few steps.
728 | Chapter 18 Part Builder Tutorials
Exercise 4: Finalizing the Part
Exercise 3: Defining the Vault Box Geometry
Views panel SW Isometric. Next you will link
(page 728).
