2 In the Move To Site dialog box, make sure that the Destination Site is set
to <None>.
3 Click OK.

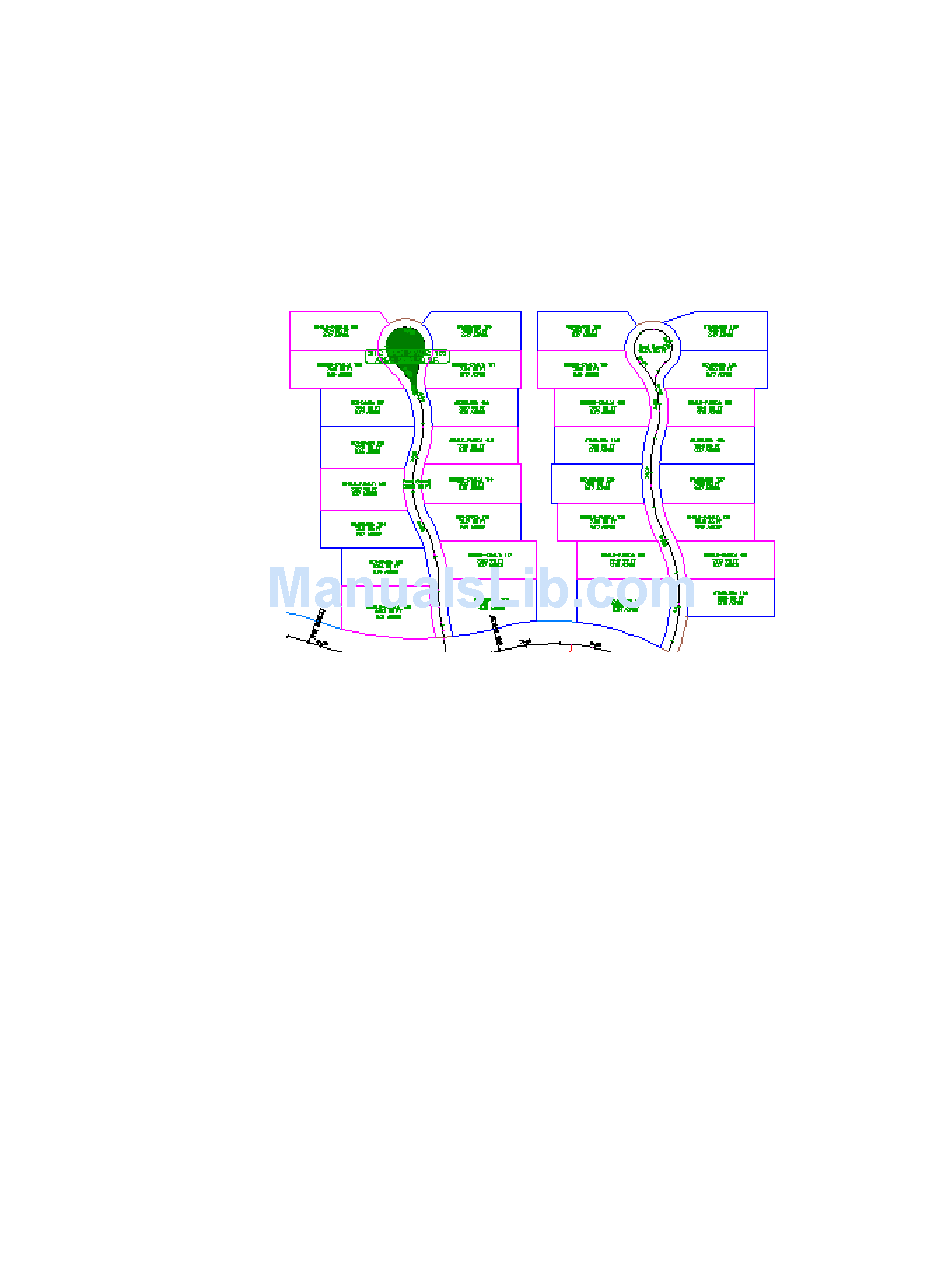

Notice that in Toolspace on the Prospector tab, Alignment - (4) has moved
to the top-level Alignments collection. In the drawing window, the parcel
label and hatching has been removed from the cul-de-sac center island.
Further Exploration: Repeat the preceding steps to move Alignment - (3)
to the top-level Alignments collection.
4 Close Parcel-1E.dwg.
To continue to the next tutorial, go to

Tutorial: Editing Parcel Data

This tutorial demonstrates two ways of resizing a parcel by moving a lot line.
The tools that you use to edit a parcel lot line depends on whether the lot line
is attached.
An attached lot line is a parcel segment that was created with the slide angle,
slide direction, and swing line precise sizing tools on the Parcel Layout Tools
toolbar. You can use the slide angle, slide direction, and swing line precise
Editing Parcel Data (page 361).
