X Offset: -0.1000
8 Click OK.

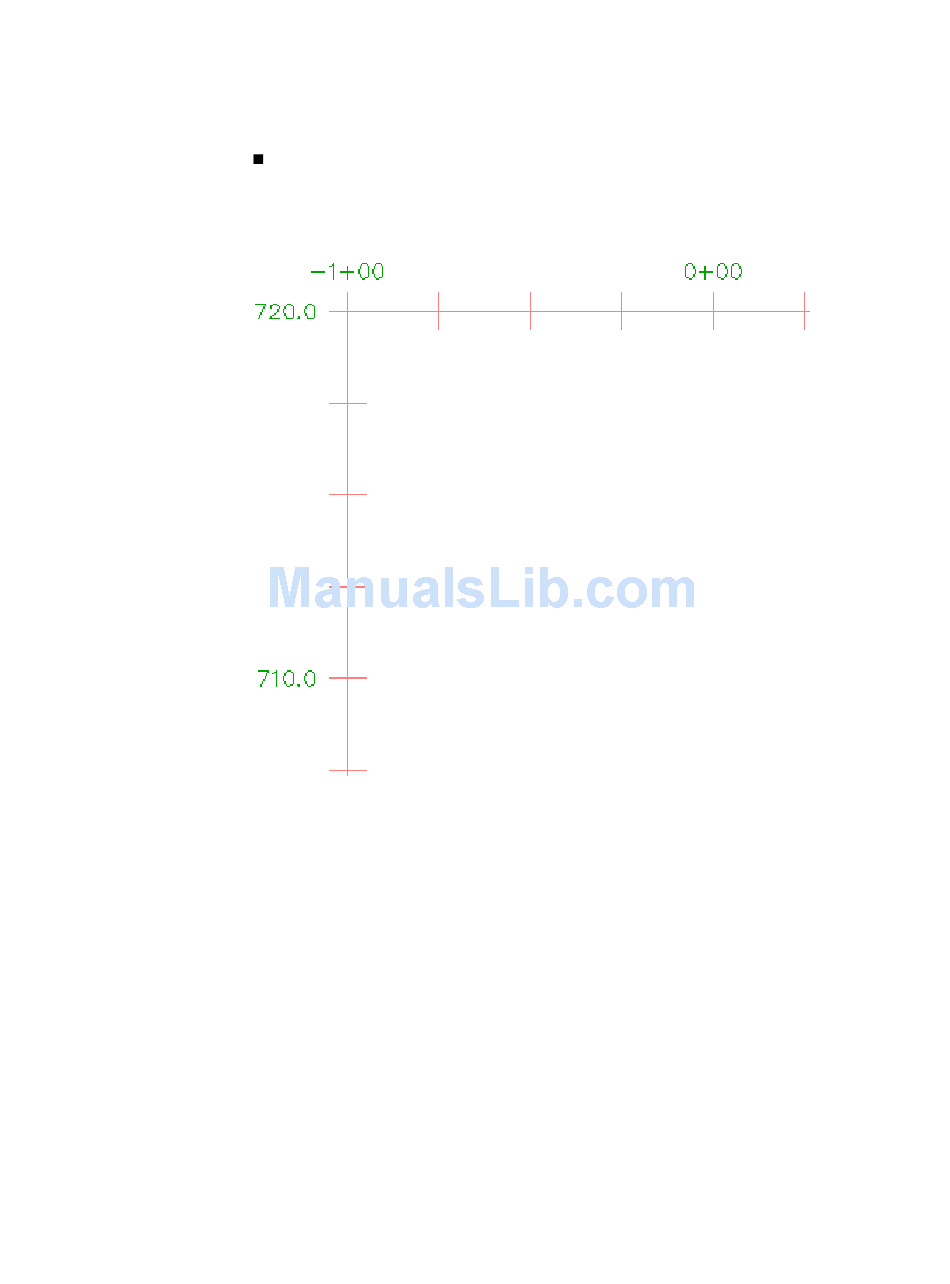

The ticks are longer, and the elevation labels move to the left.
Further exploration: Experiment with the other settings in the Major Tick
Details area. Make the same changes you made in the previous steps to
the right axis.
To continue this tutorial, go to
Profiles (page 310).

Exercise 2: Adding Hatch Patterns Between Profiles

In this exercise, you will illustrate the cut and fill regions along an alignment
by applying hatch patterns between the surface and layout profiles.
310 | Chapter 9 Profiles Tutorials
