Add a daylight subassembly
1 In the drawing, pan to the left side of the ShoulderExtendSubbase.
2 In the tool palette, click the Daylight tab.
3 Right-click DaylightStandard. Click Help. Review the diagram and
Behavior section to better understand the cut and fill daylighting
behaviors.
4 In the tool palette, click
5 In the drawing, click the marker point at the outside edge of the
ShoulderExtendSubbase subassembly to add the daylight slopes for cut
and fill.
Mirror the subassemblies to the right side of the baseline
1 Press Esc to exit subassembly placement mode.
2 In the drawing, zoom out until you see the entire assembly. On the
left-hand side of the assembly, select the daylight, shoulder, and lane
subassemblies. Right click. Click Mirror.
3 Click the marker point at the top-right edge of the median subassembly
to draw a mirror of the daylight, shoulder, and lane subassemblies.
The Mirror command creates a mirror image of the selected subassemblies.
All the subassembly parameters, except for the Side parameter, are
retained.
NOTE The parameters of the mirrored subassemblies are not dynamically
linked. If you change a parameter value for a subassembly on one side of the
assembly baseline, the change will not be applied to the opposite side.

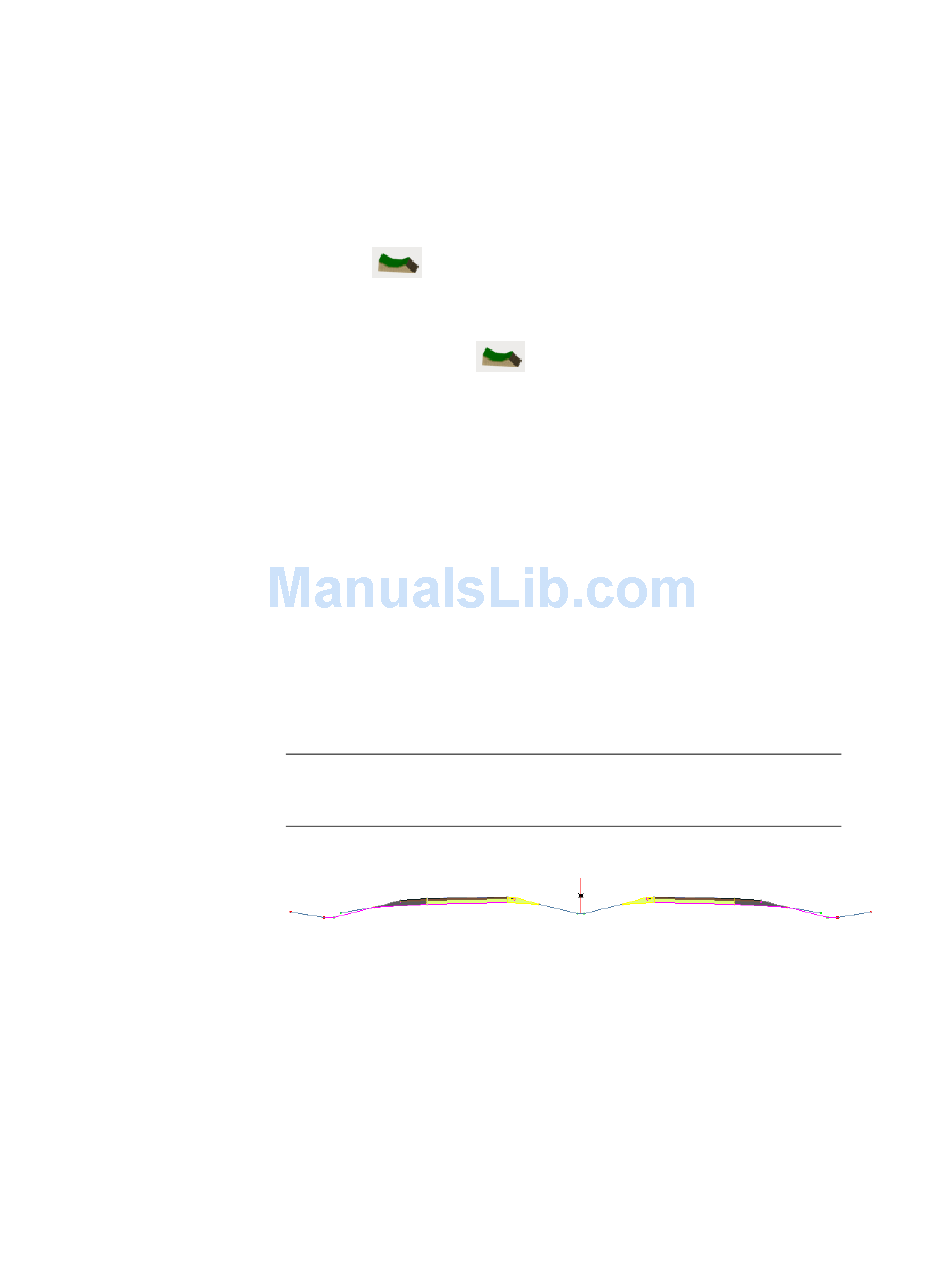

The finished assembly looks like this:
To continue this tutorial, go to
(page 476).
Exercise 1: Creating a Divided Highway Assembly | 475
DaylightStandard.
Exercise 2: Creating a Divided Highway Corridor
