Exercise 2: Editing A Figure - Autodesk CIVIL3D - CIVILDESIGNCOMP 2007 SLM CD Tutorials Manual

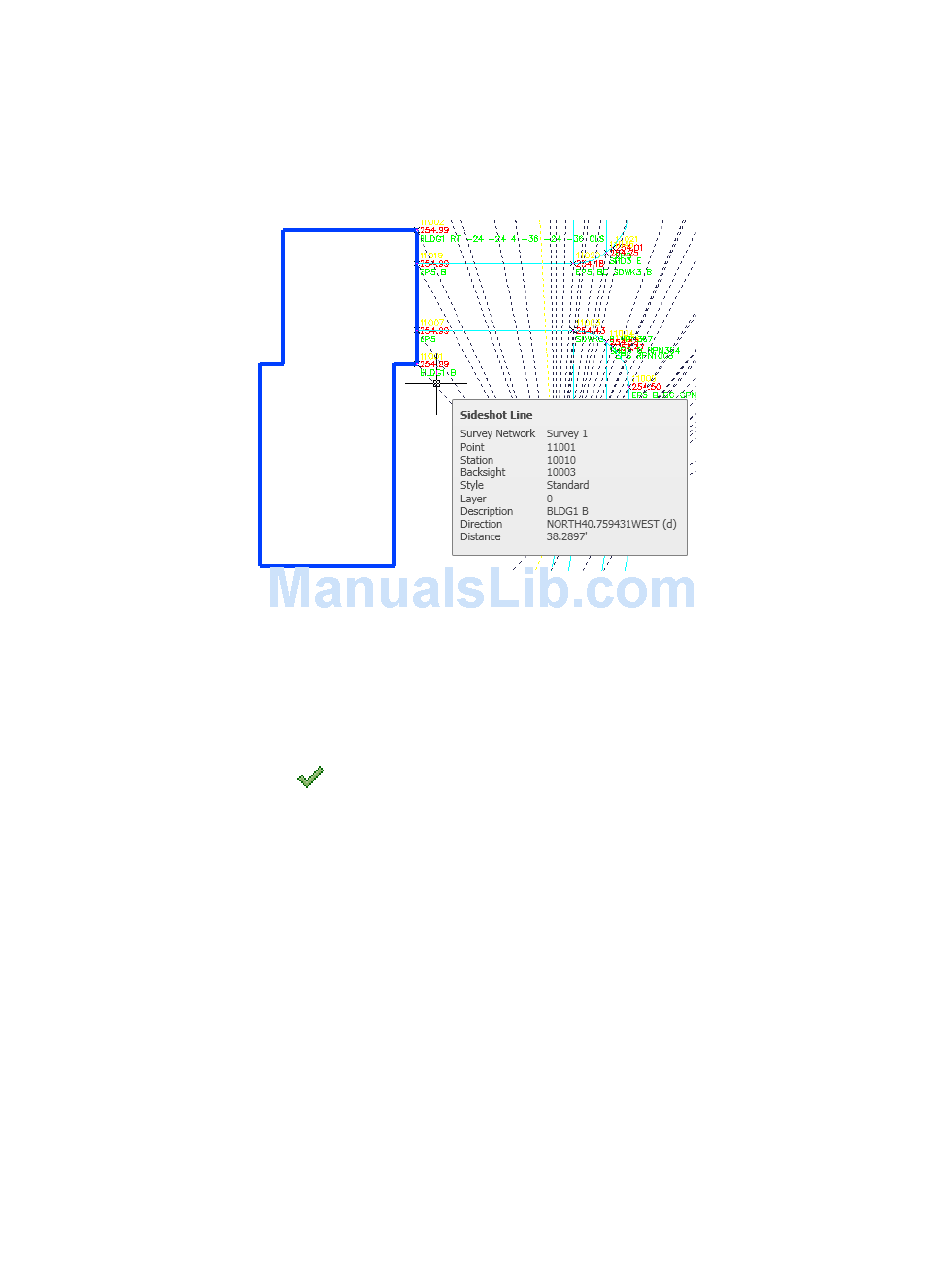

3 In the drawing window, hover your cursor over one of the survey network
components extending from BLDG1. Notice that the properties for the
network object are displayed in the tooltip.
4 Right-click the network object. Click Browse To Survey Network.
In Toolspace, on the Survey tab, the survey network is selected. The survey
data for the survey network is displayed in the list view.
5 Ctrl+click one of the survey network components shown in the previous
image. Right-click. Click Browse To Survey Data.
The related setup is highlighted the Observations Editor vista.
6 Click
To continue this tutorial, go to

Exercise 2: Editing a Figure

In this exercise, you will edit a figure to change its display in the drawing.
For more information, see the AutoCAD Civil 3D Help topic Editing Figures.
This exercise continues from
146 | Chapter 6 Survey Tutorials
to dismiss the Observations Editor vista.
Exercise 2: Editing a Figure
Exercise 1: Viewing Survey Data
(page 146).
(page 144).
