5 Click
6 In the Profile View Style dialog box, examine the contents of the various
tabs to see the many settings that can be included in a style definition.
For example, on the Title Annotation tab, you can change the format
and location of the profile view title. On the Display tab, you can turn
various parts of the profile view on and off.
7 Click Cancel, and then click OK to close the Profile View Properties dialog
box.
8 Zoom out so you can see both profile views.
When you applied the Major Grids style, which includes grid padding
above and below the profile, PV- (1) enlarged to overlap PV- (2).

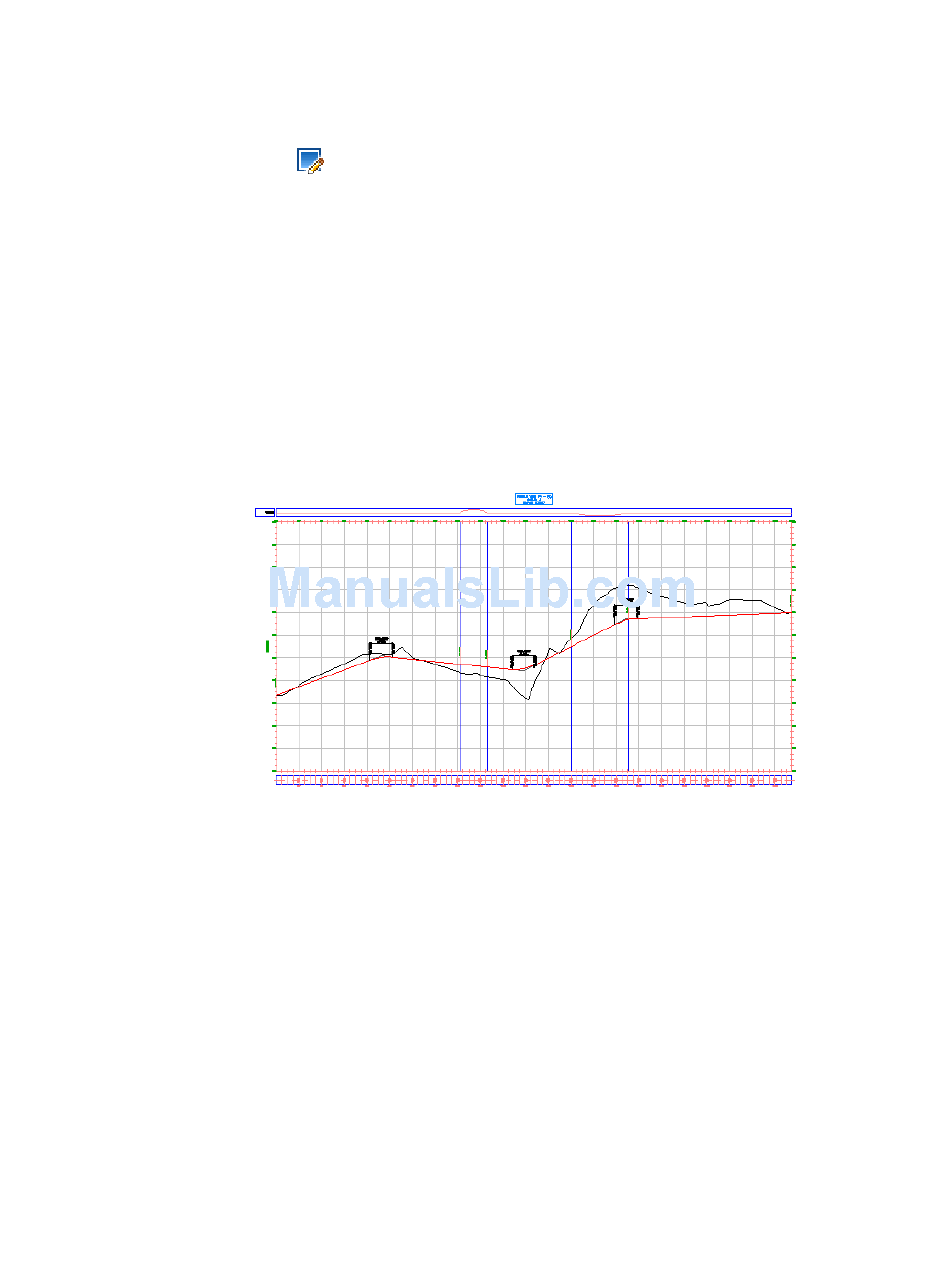

9 Click PV- (2) and move it up above the title block for PV- (1).
Now you will edit the Major Grids profile view style to add consistent
grid padding, clip the profile view grid, and modify the appearance of
the ticks along the axis.
Modify the grid in the profile view style
1 Click the PV - (1) grid to select the profile view. Right-click. Click Edit
Profile View Style.
2 In the Profile View Style dialog box, on the Grid tab, under Grid Padding,
change the padding of all four axes to 1.0000.
3 Click Apply.
306 | Chapter 9 Profiles Tutorials
Edit Current Selection.
