Autodesk CIVIL3D - CIVILDESIGNCOMP 2007 SLM CD Tutorials Manual page 388

This exercise continues from
Line (page 368).

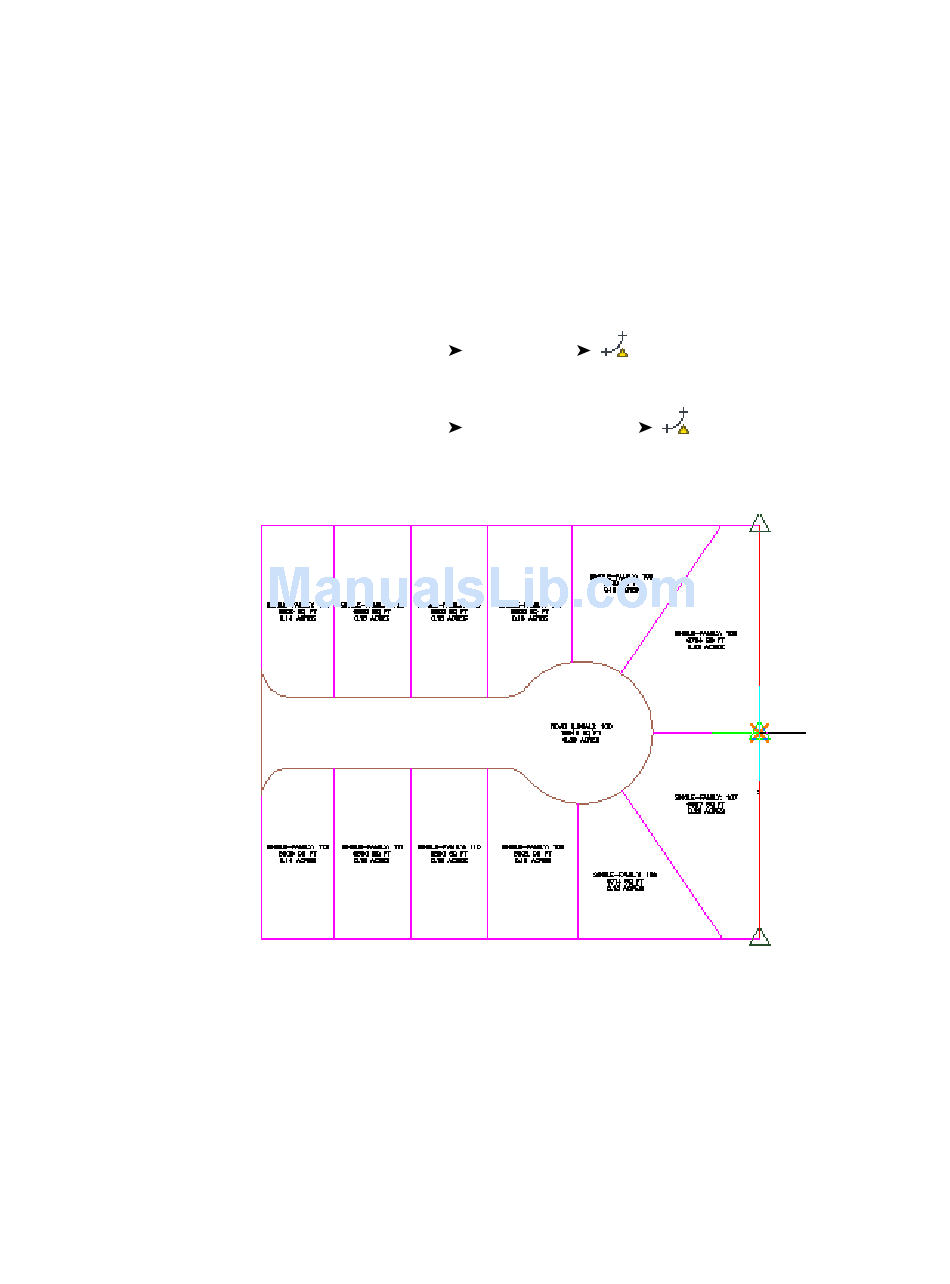

Add a point of intersection to a parcel lot line
1 Open Parcel-2C.dwg, which is located in the
819).
2 Select the back lot line that is shared by parcels 105 and 106.
3 Click Parcel Segment tab
The Edit Geometry panel is displayed in the ribbon.
4 Click Parcel Segment tab
5 Snap to the intersection of the back lot line and the lot line that separates
parcels 105 and 106. Click to insert a point of intersection.
6 Press Enter to accept the default elevation of 0.
7 Press Esc twice to end the command.
376 | Chapter 10 Parcels Tutorials
Exercise 2: Swinging One End of a Parcel Lot
tutorial drawings folder
Modify panel
Edit Geometry panel
(page
Edit Geometry.
Insert PI.
