For more information, see the AutoCAD Civil 3D Help topic Understanding
Part Builder.
This exercise continues from
1 Make sure that you have closed the Part Builder environment from the
previous exercise.
2 In the AutoCAD Civil 3D window, click Quick Access toolbar
Open. Navigate to the
Part Builder-3a.dwg. This drawing contains a simple sanitary sewer pipe
network.
3 In the Toolspace Settings tab, expand Pipe Networks
then right- click Sanitary Sewer and then click Edit.
4 Click the Structures tab. Right-click Sanitary Sewer and then click Add
Part Family.
5 Check the box next to Vault 5106-LA with Top 5106-TL3-332. Click OK.
The part family is added to the parts list.
6 Right-click Vault 5106-LA with Top 5106-TL3332, and then click Add
Part Size. Note the new part size that has been included.
7 Click OK to add a single part size with the default values. Expand Vault
5106-LA with Top 5106-TL3-332. Note the new part size that has been
included.

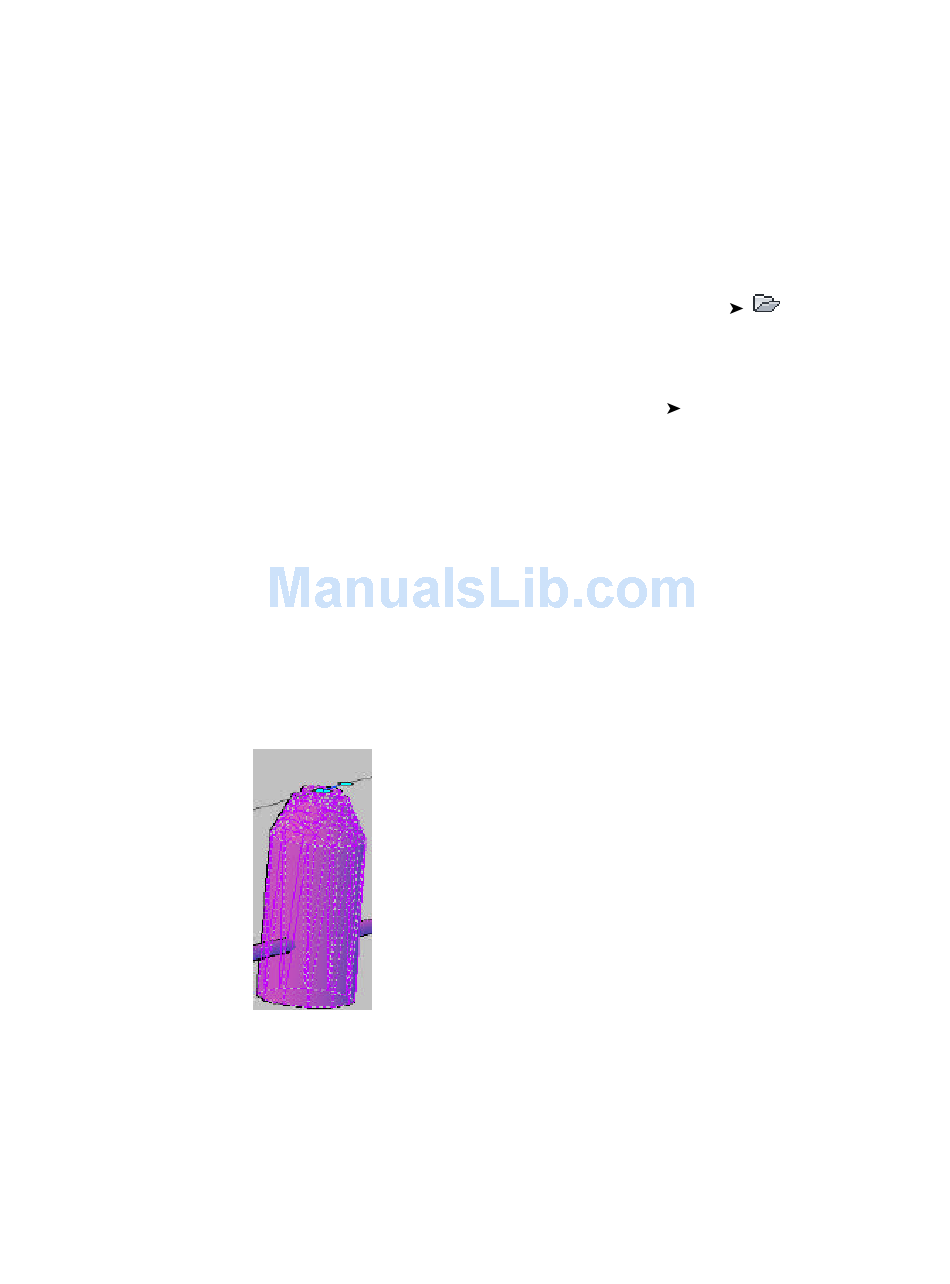

8 Click OK. Click the sanitary sewer manhole in any of the drawing views.
Right-click and then click Swap Part.
736 | Chapter 18 Part Builder Tutorials
Exercise 4: Finalizing the Part
tutorial drawings folder (page 819). Open the drawing
(page 728).
Parts Lists, and
