For more information, see the AutoCAD Civil 3D Help topic Breaklines.
This exercise continues from
64).
Display the source polylines and change the surface style
NOTE This exercise uses the drawing you created in the previous exercises, or you
can open Surface-1B.dwg from the
1 Click Home tab
_EG_BREAKLINES layer, click

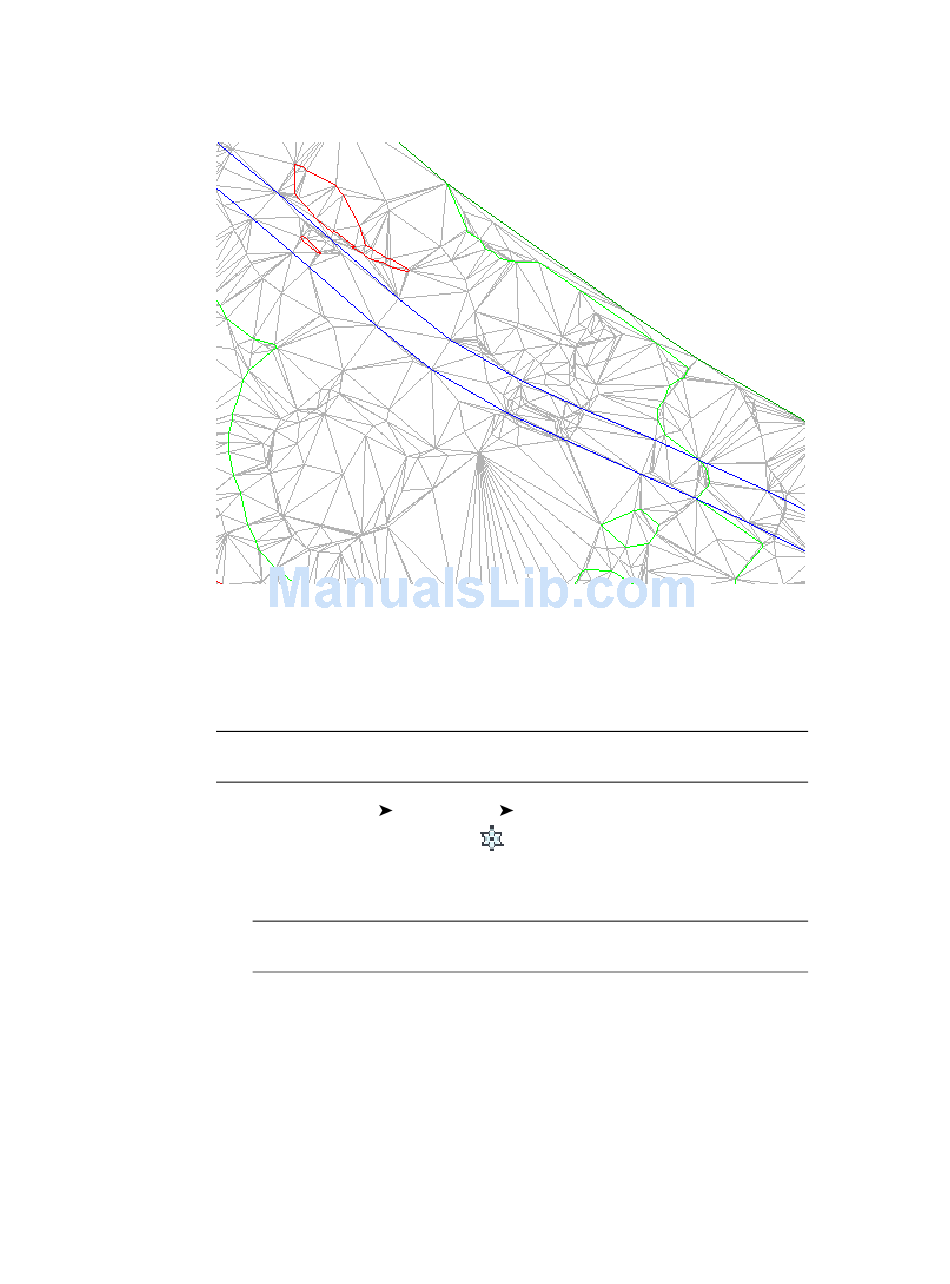

The 3D polylines that represent the edge of pavement (EP) of an existing
road are displayed on the east side of the site.
NOTE The EP polylines were included in the drawing template you used in
Exercise 1: Creating a TIN Surface
2 Select the surface. Right-click. Click Surface Properties.
3 In the Surface Properties dialog box, on the Information tab, for Surface
Style, select Contours and Triangles. Click OK.
66 | Chapter 5 Surfaces Tutorials
Exercise 2: Adding Point Data to a Surface
