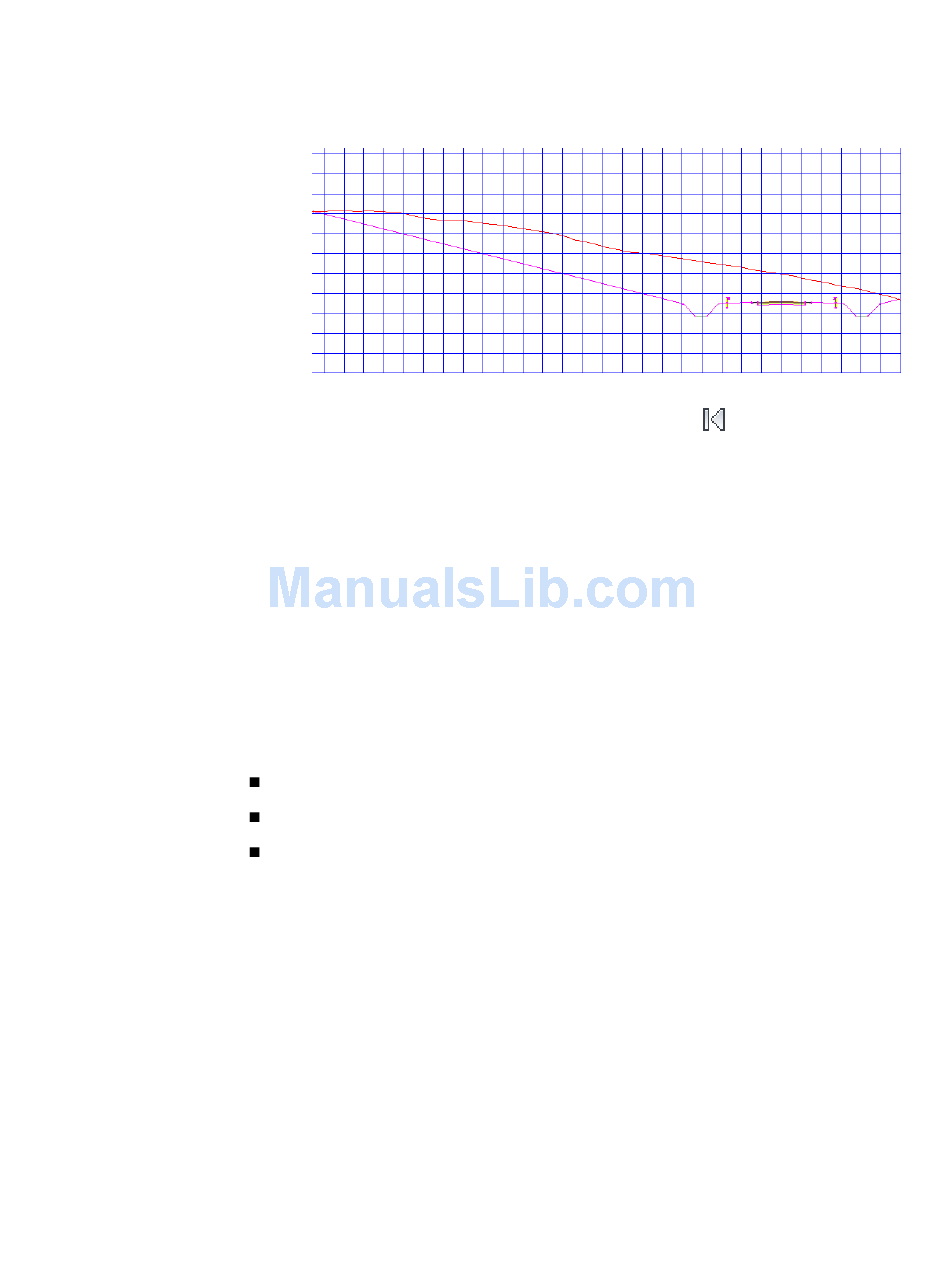

4 In the View/Edit Corridor Section Tools toolbar, click
station 0+00.
To continue this tutorial, go to
to a Corridor Assembly
Exercise 2: Adding Conditional Subassemblies to a
Corridor Assembly
In this exercise, you will add ConditionalCutOrFill subassemblies to an existing
corridor assembly.
You will specify two levels of ConditionalCutOrFill subassemblies. In the first
level, you will attach three ConditionalCutOrFill subassemblies to an existing
guardrail subassembly, and then add standard daylight subassemblies to them:
Cut: Add a ditch, and then daylight to surface at a 2:1 slope.
Fill < 5.0000': Add a ditch, and then daylight to surface at a 8:1 slope.
Fill > 5.0000': Add benching, and then daylight to surface at a 4.0:1 slope.

Exercise 2: Adding Conditional Subassemblies to a Corridor Assembly | 435

Exercise 2: Adding Conditional Subassemblies
(page 435).
to return to
