37 Using the same procedure that was used for SBSL and SBSW, add values
of 36, 48, 60, 72, 84, 96, and 108 for SFL. Add values of 24, 36, 48, and
60 for SFW.
These values are now controlled by lists that can ultimately be
manipulated from within AutoCAD Civil 3D when the part is in use.
38 Click OK to close the Edit Part Sizes dialog box. Click Save Part Family.
This saves the part as well as updates the Model Parameters to include
the newly added Size Parameters.
39 Right-click Size Parameters and then click Edit Values. Set the following
values:
SFL: 108
SFW: 48
Click the Update Model button in the Edit Part Sizes dialog box toolbar,
and then click OK. This updates the Model Parameter values so that they
match the Part Parameter values where applicable.

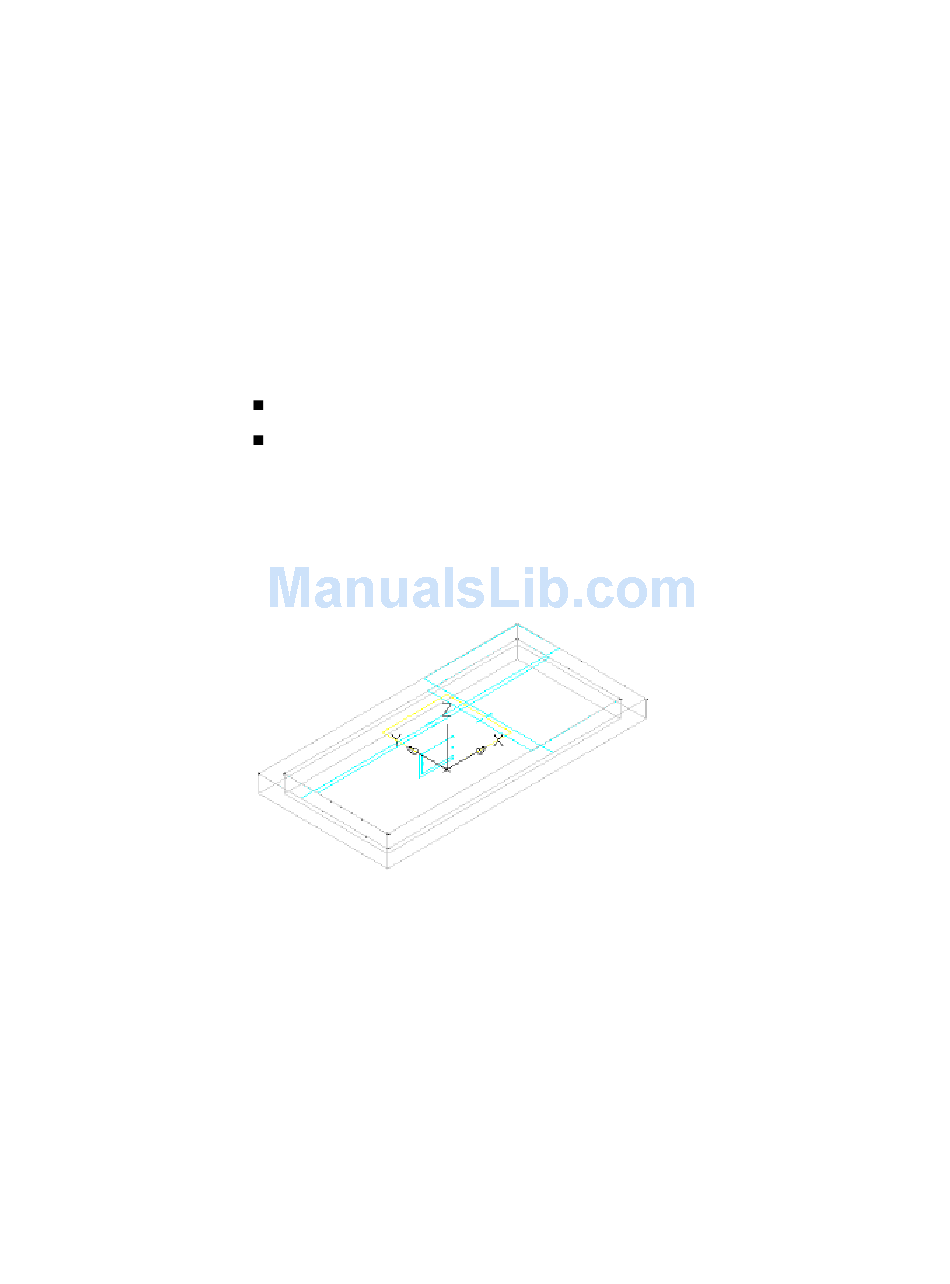

40 Expand Model Parameters, edit LenA3 and LenA4 to equate to SFL and
SFW respectively. The model updates to reflect the changes to the
dimensions.
41 Click Save Part Family. Remain in the Part Builder environment for the
next exercise.
To continue this tutorial, go to
(page 717).
716 | Chapter 18 Part Builder Tutorials
Exercise 3: Defining the Vault Box Geometry
