2 On the Proposed Road assembly, select the baseline.
NOTE Do not use the grips to drag the baseline marker.
3 Click the bottom of the baseline marker. Drag the baseline onto the
Tutorial Assemblies tool palette.
The image and name of the assembly are displayed on the tool palette.
4 Repeat Steps 2 and 3 for the remaining three assemblies.
5 On the Tutorial Assemblies tool palette, right-click an empty area. Click
View Options.
6 In the View Options dialog box, move the Image Size slider to the right
to increase the size of the images on the tool palette. Click OK.

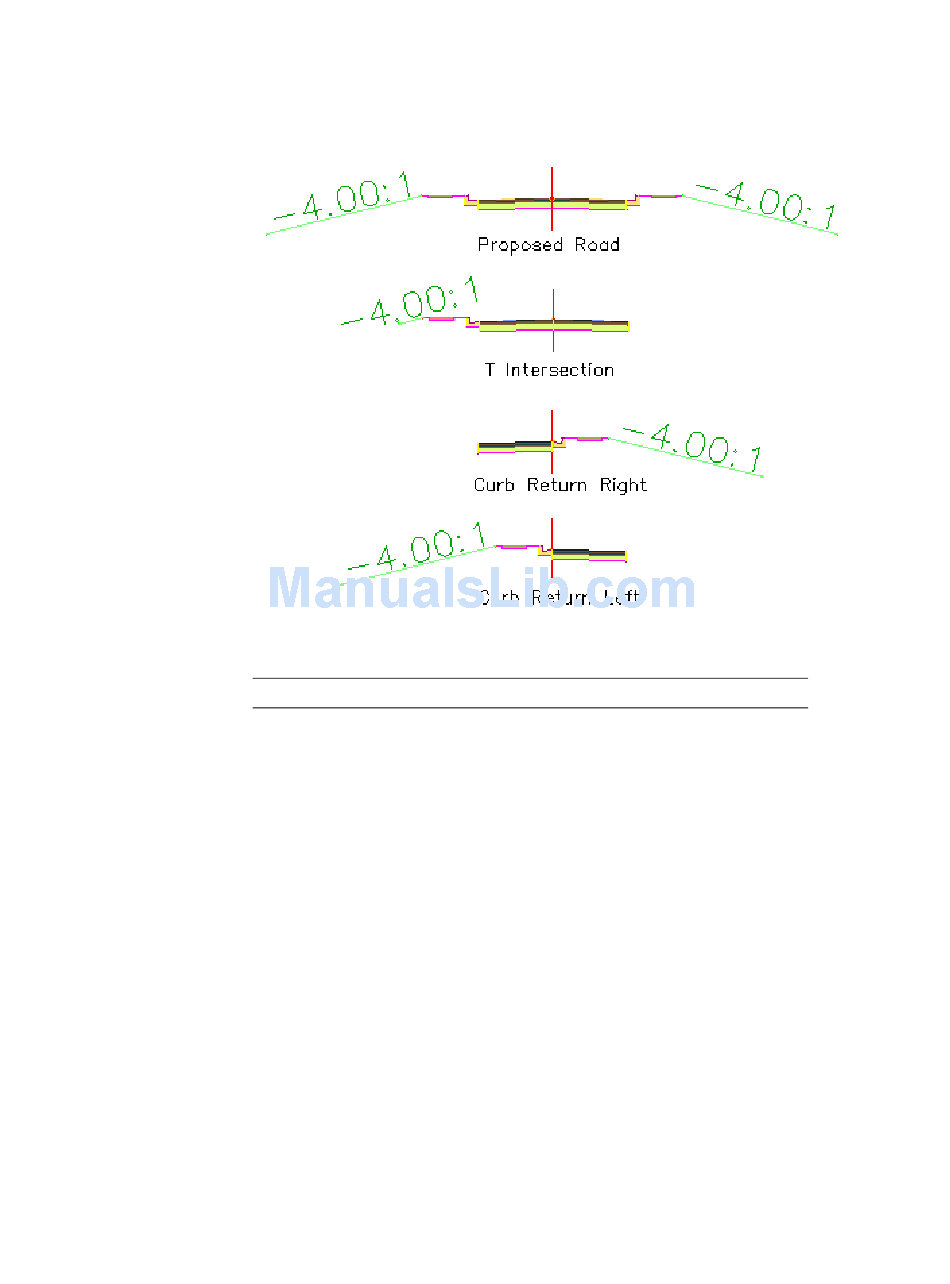

7 On the Tutorial Assemblies tool palette, hover the cursor over the Curb
Return Left (CR-L) assembly.
Notice that a tooltip is displayed. The tooltip text is automatically
generated from the description of the original assembly.
450 | Chapter 12 Corridor Assembly Tutorials
