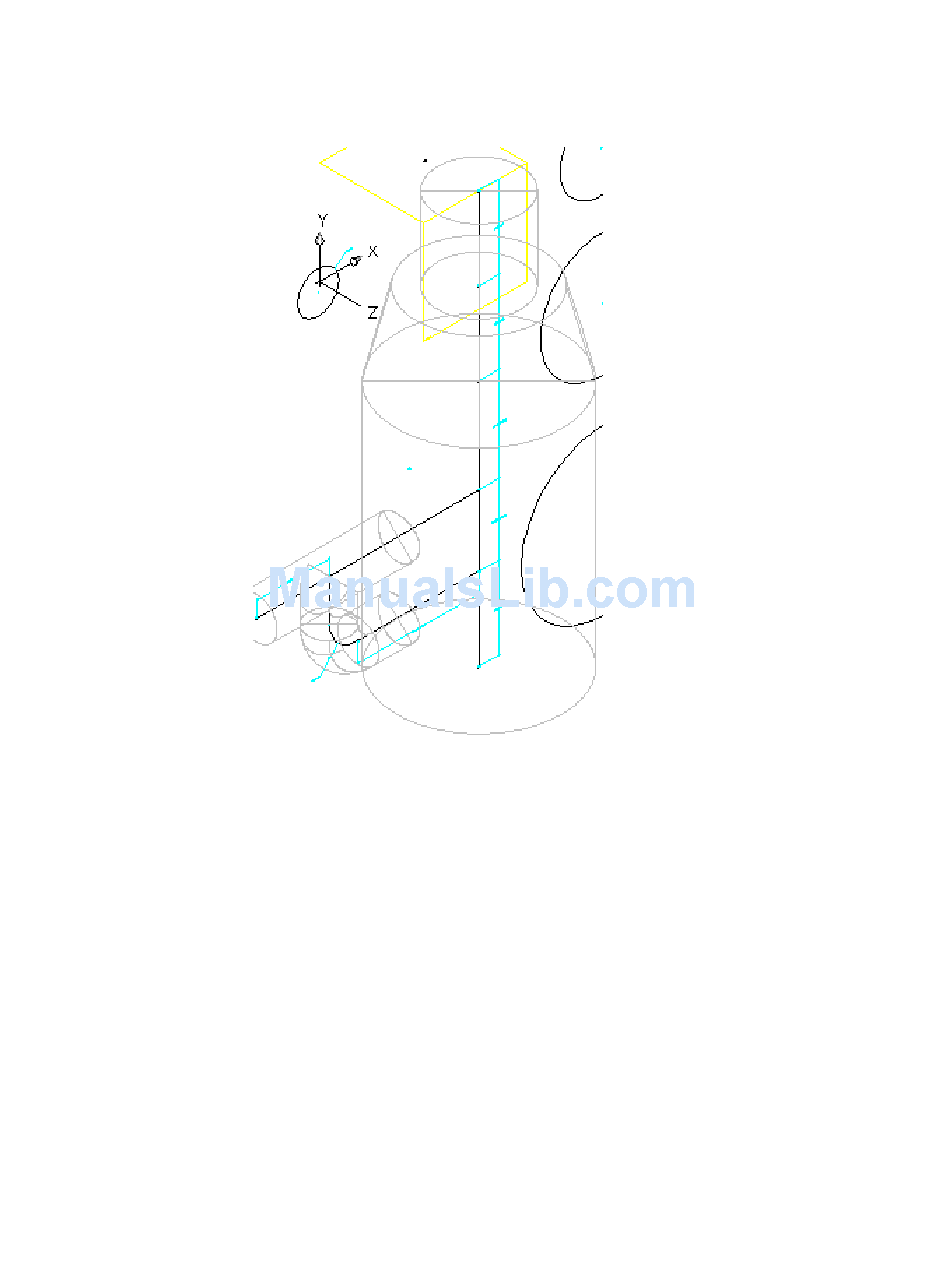

12 Next you will set the placement point for the part.
Add new Top workplane; Add Point reference; Select placement point on
Top workplane Expand AutoLayout Data. Right-click Layout Data, and
then click Set Placement Point. Use the node object snap to click the top
point on the vertical axis. This is the point at which the part is inserted
into the drawing (insertion point).
696 | Chapter 18 Part Builder Tutorials
