4 Using the Generic tool palette, add a
subassembly to the Fill 0.00 : 10000.00 conditional subassembly using
the following parameters:
Side: Left
Slope: 4.000%
Add Link In: Fill Only
NOTE The Fill 0.00 : 10000.00 conditional subassembly that is attached to
the cut branch of the assembly will be applied if the daylight basin
subassembly were to end in a fill condition.
5 Press Esc to exit subassembly placement mode.

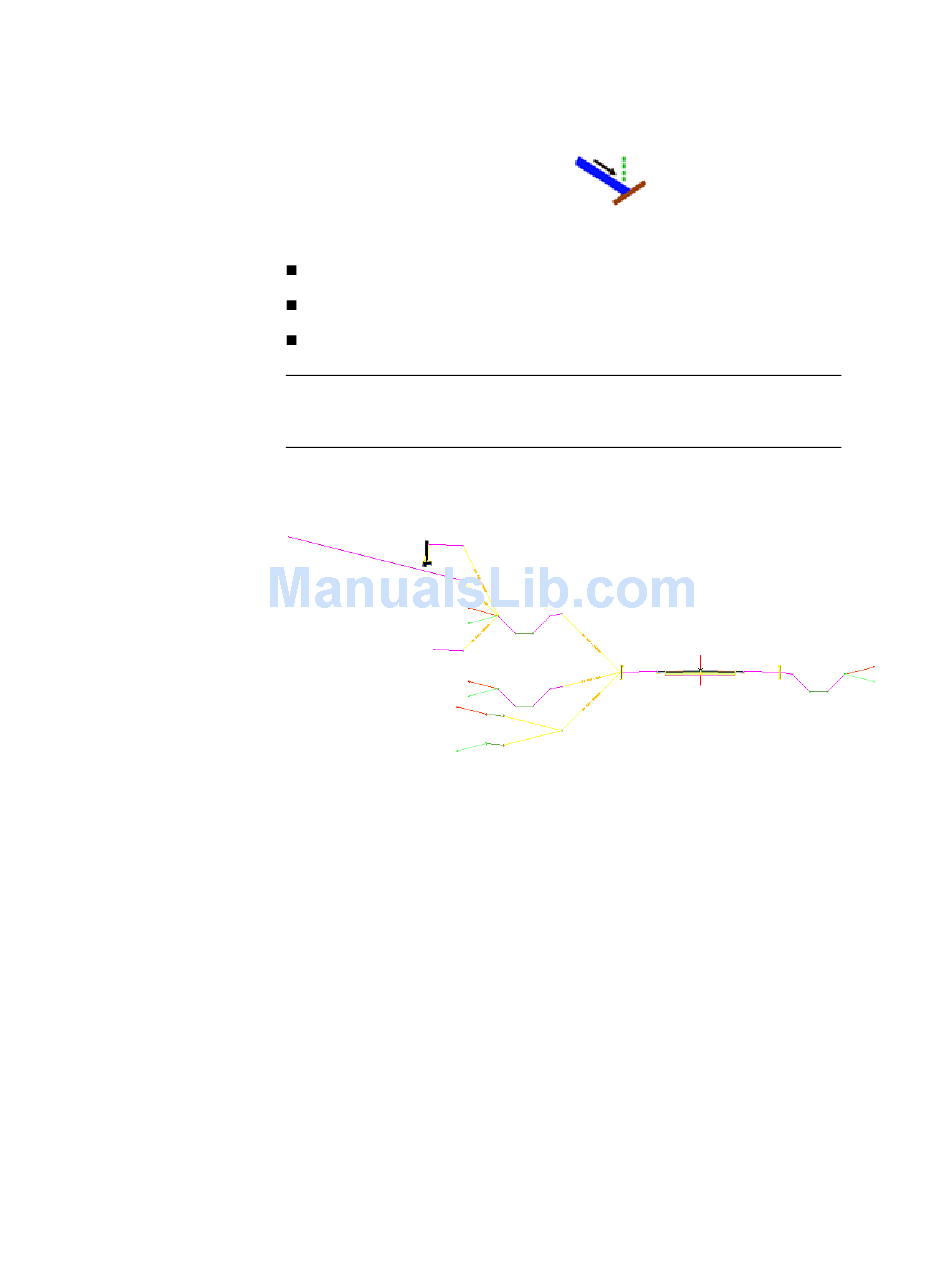

When you are finished, the assembly should look like this:
To continue this tutorial, go to
Properties
Exercise 3: Adjusting Conditional Subassembly
Properties
In this exercise, you will adjust the properties of one of the subassemblies,
and then assign descriptive names to each of the subassemblies in the Through
Road assembly.

Exercise 3: Adjusting Conditional Subassembly Properties | 443

Exercise 3: Adjusting Conditional Subassembly
(page 443).
LinkSlopeToSurface
