3 For the Vertical Geometry band, change the Profile1 setting to Layout -
(1).
4 Click Apply.
Now, this band shows the length of each grade segment along the layout
profile.
Rearrange the data bands
1 In the table of bands list, select the Vertical Geometry band. Click
twice, then click Apply.
The Vertical Geometry band moves to the bottom of the stack of data
bands.
2 Click OK.

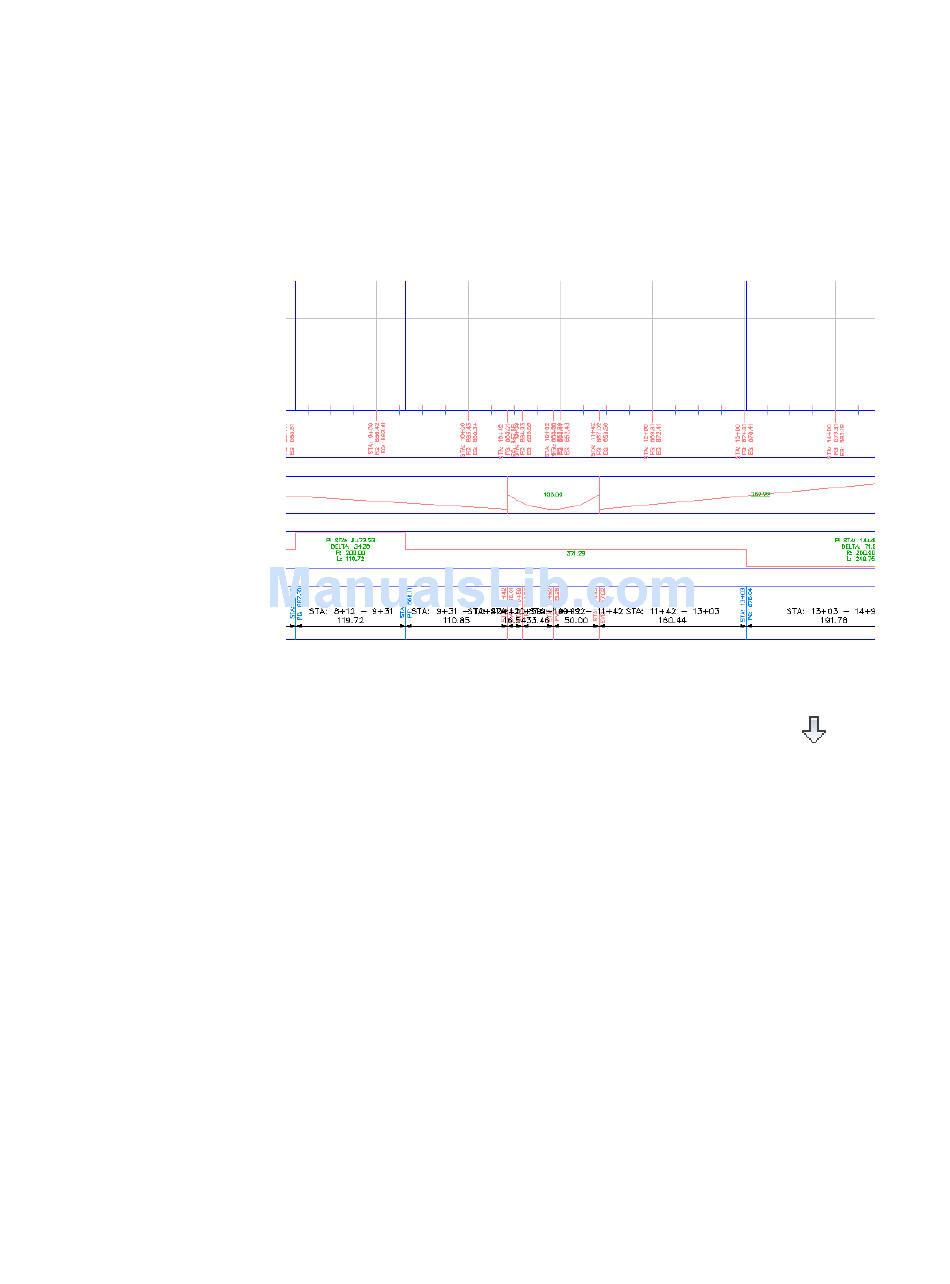

This arrangement of bands is convenient for analysis. It displays
horizontal and vertical geometry, as well as comparative elevation data
for the surface profile and the layout profile.
Notice that in the bottom, Vertical Geometry band, the labels in the
uphill tangents are obscured by the tangents. You will correct this in
Exercise 3: Modifying a Data Band Style
Exercise 1: Adding Data Bands to a Profile View | 335
(page 339).
