Exercise 3: Creating and Editing a Corridor in the
Intersection Area
In this exercise, you will create a corridor using existing vertical and horizontal
geometry. You will modify the corridor in the intersection area, and then
experiment with the corridor region recreation tools.
For more information, see the AutoCAD Civil 3D Help topics Updating Corridor
Regions in Intersections and Recreating Corridor Regions in Intersections.
Create a corridor in the intersection area
1 Open Intersection-Edit-Corridor.dwg, which is located in the
folder

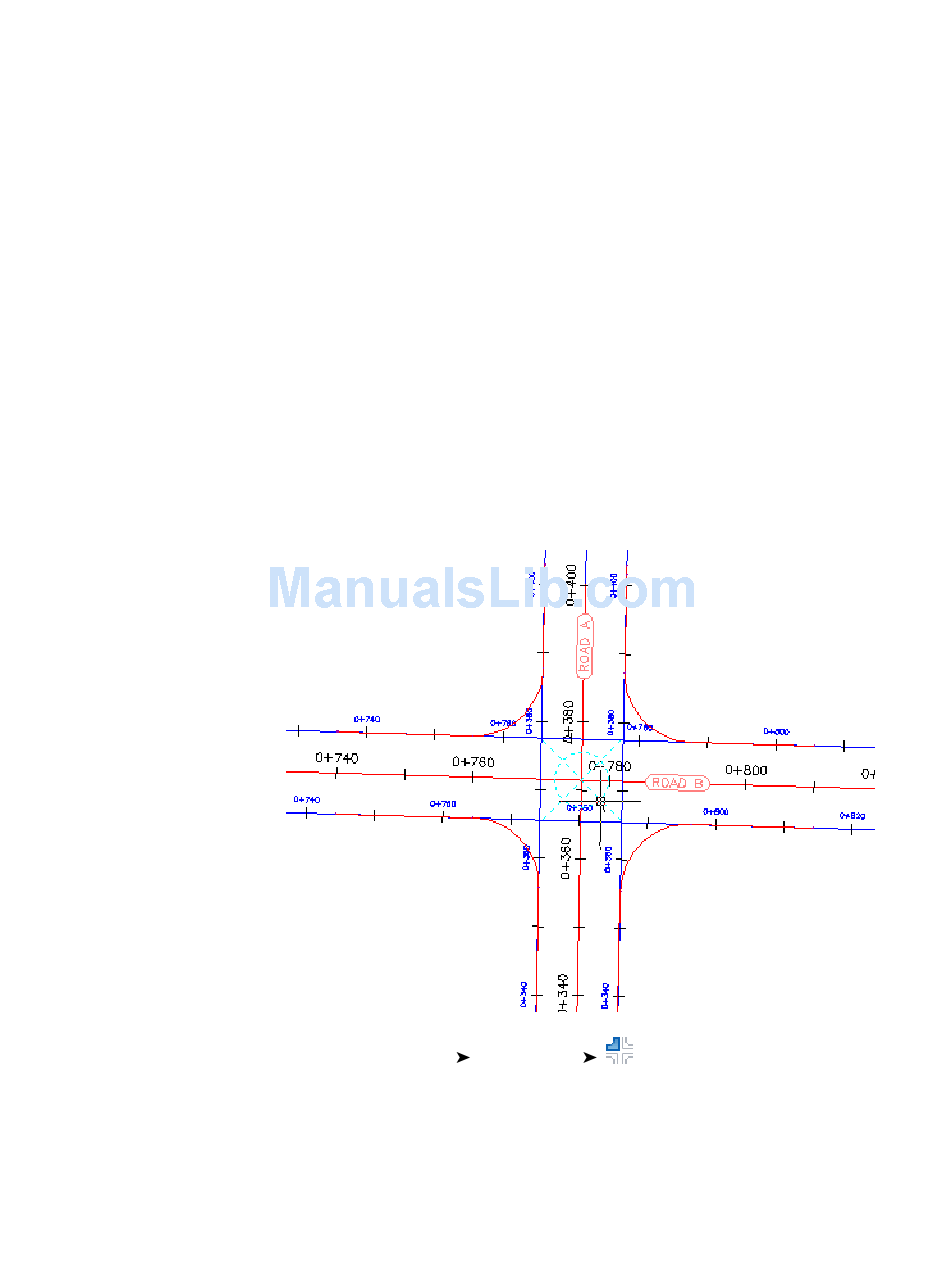

This drawing contains an intersection of a primary road (Road A) and a
secondary road (Road B). There currently are no corridors or corridor
assemblies in the drawing.
2 Select the intersection marker.
3 Click Intersection tab

Exercise 3: Creating and Editing a Corridor in the Intersection Area | 533

(page 819).
Modify panel
tutorial drawings
Recreate Corridor Regions.
