6 In the Pick A Surface dialog box, click Existing Ground.
7 Click OK three times to close the dialog boxes and rebuild the corridor.

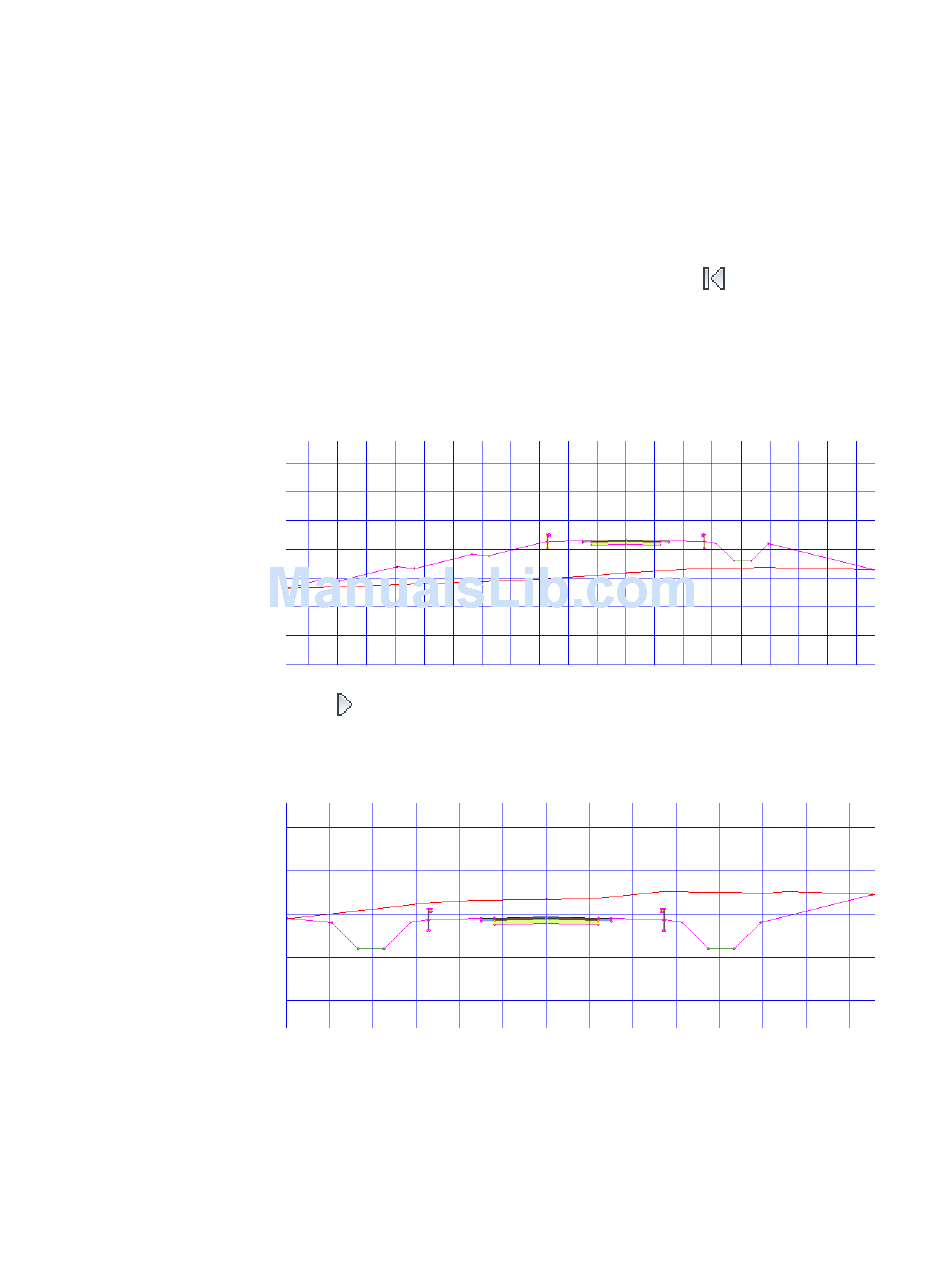

Examine the rebuilt corridor
1 In the View/Edit Corridor Section Tools toolbar, click
station 0+00.
At the first few stations, the corridor is in a relatively deep fill condition.
In Exercise 2: Adding Conditional Subassemblies to a Corridor Assembly
(page 435), you attached the DaylightBench subassembly to the Fill 5.00:
10000.00 conditional subassembly. The fill condition at this station is
greater than 5.0001', so the DaylightBench subassembly is applied.
2 Click eight times to advance to station 2+00.
Starting at station 2+00, the corridor enters a cut condition. At this station,
the cut is less than 5.0000', so the DaylightOffsetToSurface subassembly
is applied after the ditch.
Exercise 4: Rebuilding the Corridor and Examining the Results | 447
