Exercise 1: Adding Data Bands to a Profile View

In this exercise, you will add data bands along the bottom of a profile view.
For more information, see the AutoCAD Civil 3D Help topic Adding Data Bands
to a Profile View.
Add profile view data bands
1 Open Profile-6A.dwg, which is located in the
819).

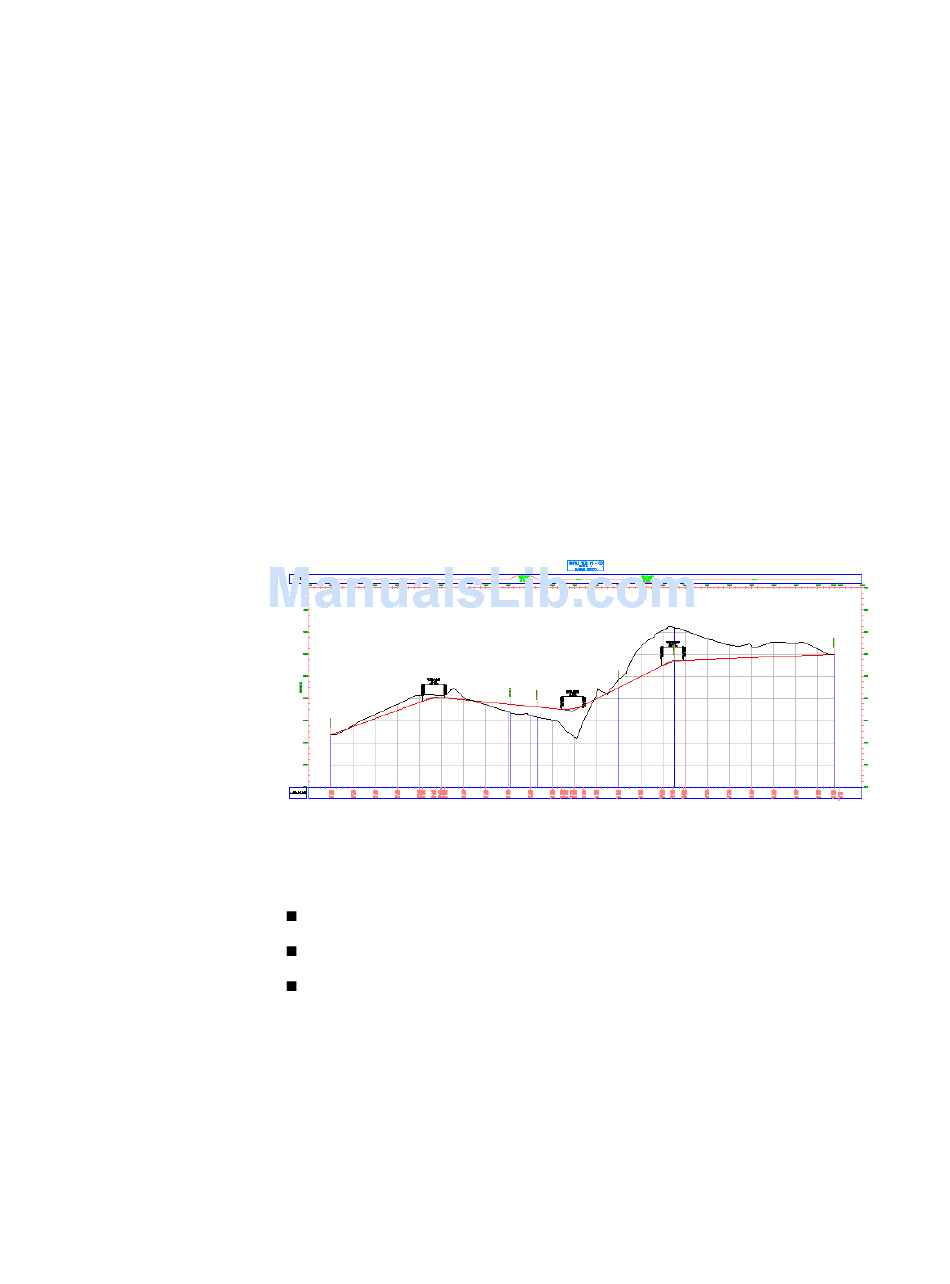

The data band at the top of profile view PV - (3) shows the locations of
horizontal curves in the parent alignment. Blue vertical lines cross the
profile view grid to mark the start and end of each horizontal curve. The
data band at the bottom annotates the elevation of both profiles at the
major stations.
2 Select the profile grid. Right-click. Click Profile View Properties.
3 In the Profile View Properties dialog box, on the Bands tab, specify the
following parameters:
Band Type: Vertical Geometry
Select Band Style: Geometry
Location: Bottom Of Profile View
4 Click Add.
The band is added to the bottom of the list.
Exercise 1: Adding Data Bands to a Profile View | 331
tutorial drawings folder (page
