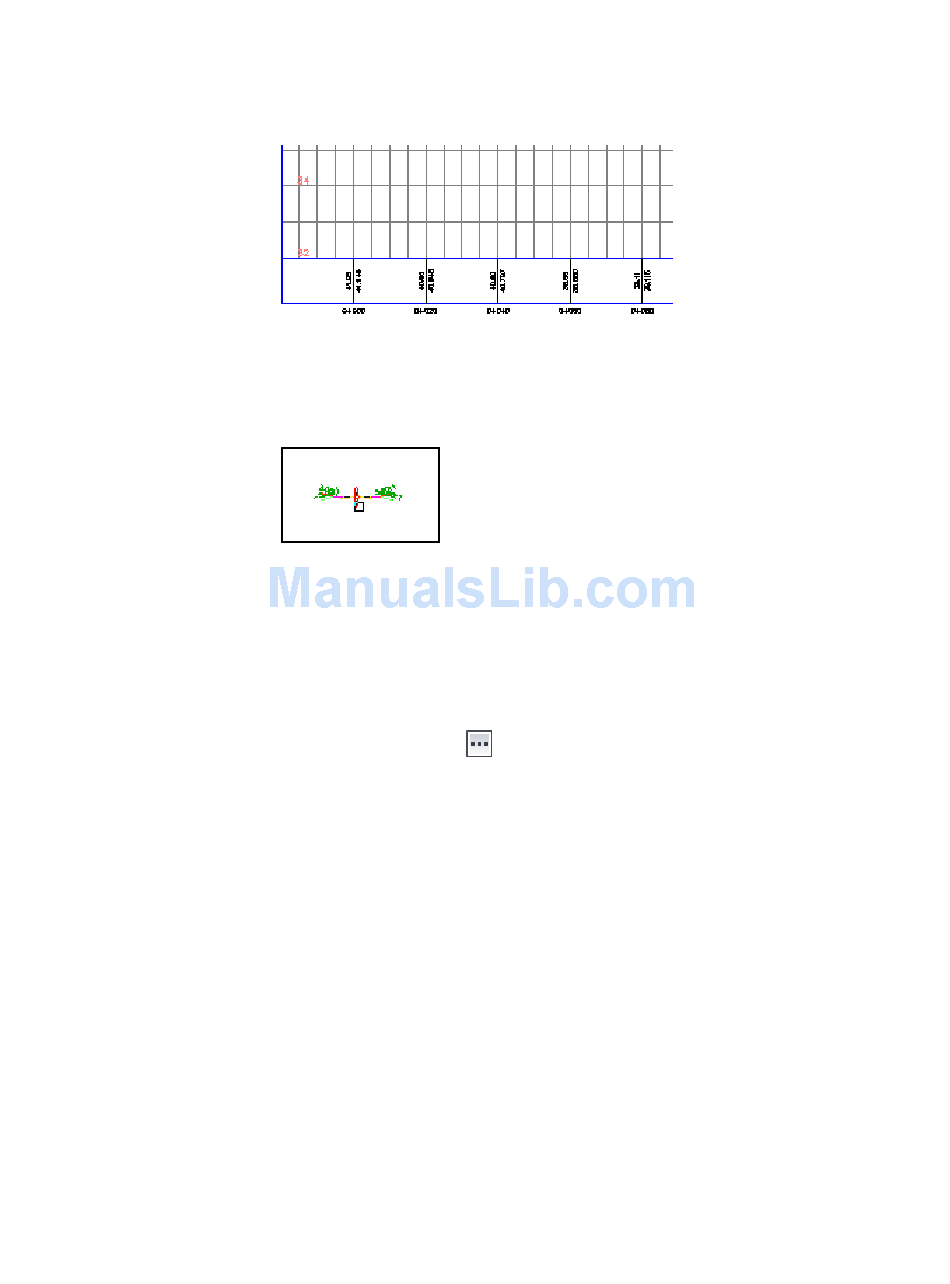

Specify the corridor parameters
1 In the Create Corridor dialog box, for Corridor Name, enter First Street.
2 In the RG-Primary Road Full Section - (1) row, in the End Station cell,
enter 0+440.00.
3 In the Frequency cell, click
4 In the Frequency To Apply Assemblies dialog box, under Apply Assembly,
for Along Curves, enter 3.000. Click OK.
5 In the Create Corridor dialog box, click Set All Targets.
In the Target Mapping dialog box, you can map logical names in
subassemblies to actual objects in the drawing. For example, the
BasicSideSlopeCutDitch subassembly requires that a surface be specified
for calculating the daylight points.
6 In the table, in the Object Name column, click <Click Here To Set All>.
7 In the Pick A Surface dialog box, select surface EG.
This sets the daylight points for both the BasicSideSlopeCutDitch
subassemblies to the same surface.
