5 Press Enter.
Two lot lines are created, separated at the point you specified.

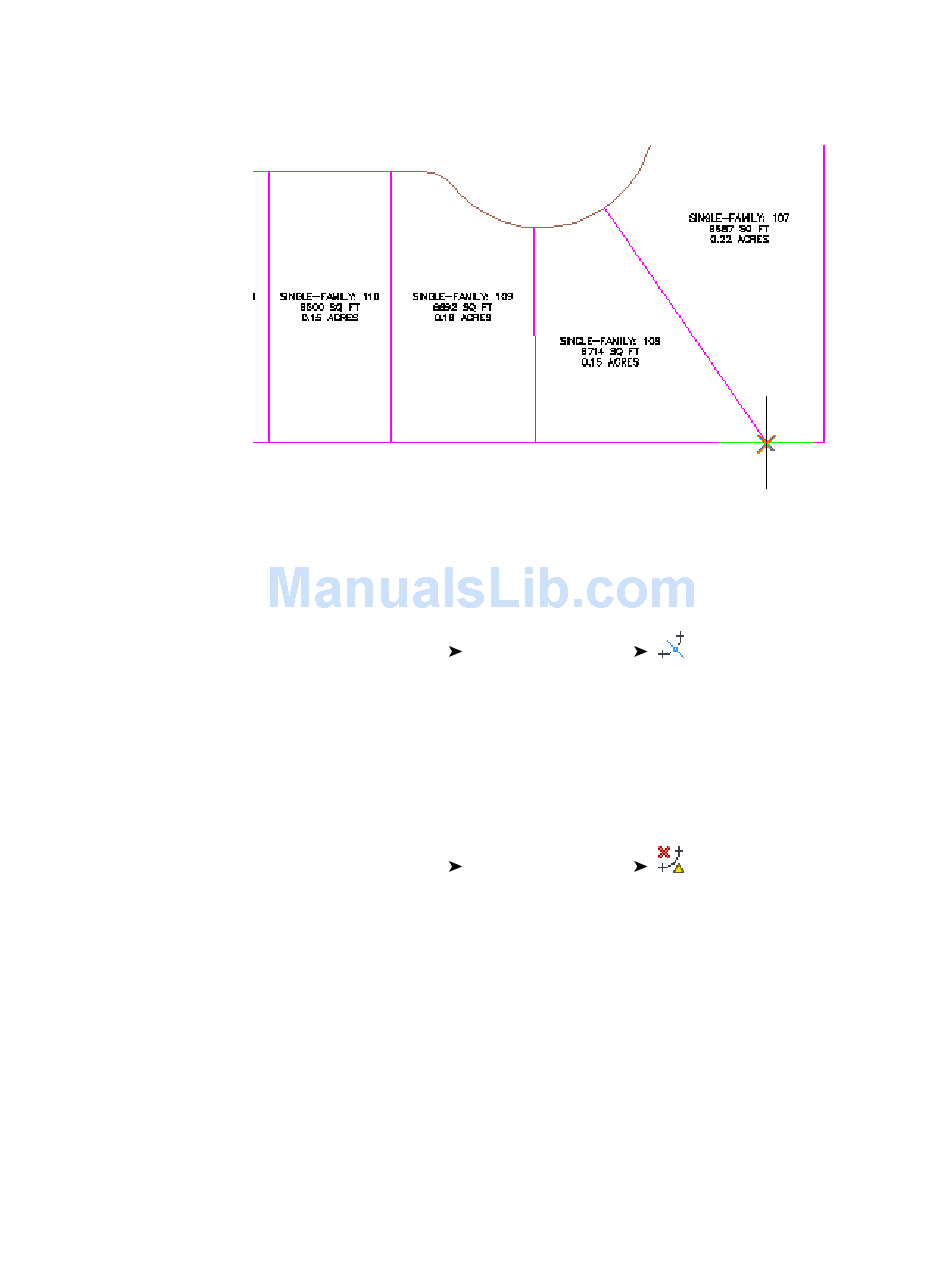

Join two parcel lot lines
1 Click Parcel Segment tab
2 In the drawing, click the two lot lines that form the southeast corner of
parcel 106.
3 Press Enter.
The two lot lines are now a single entity.
Delete a point of intersection
1 Click Parcel Segment tab
2 In the drawing, select the lot line that forms the south and east boundaries
of the parcel.
3 Click the green PI at the southeast corner of parcel 108.
380 | Chapter 10 Parcels Tutorials
Edit Geometry panel
Edit Geometry panel
Join.
Delete PI.
