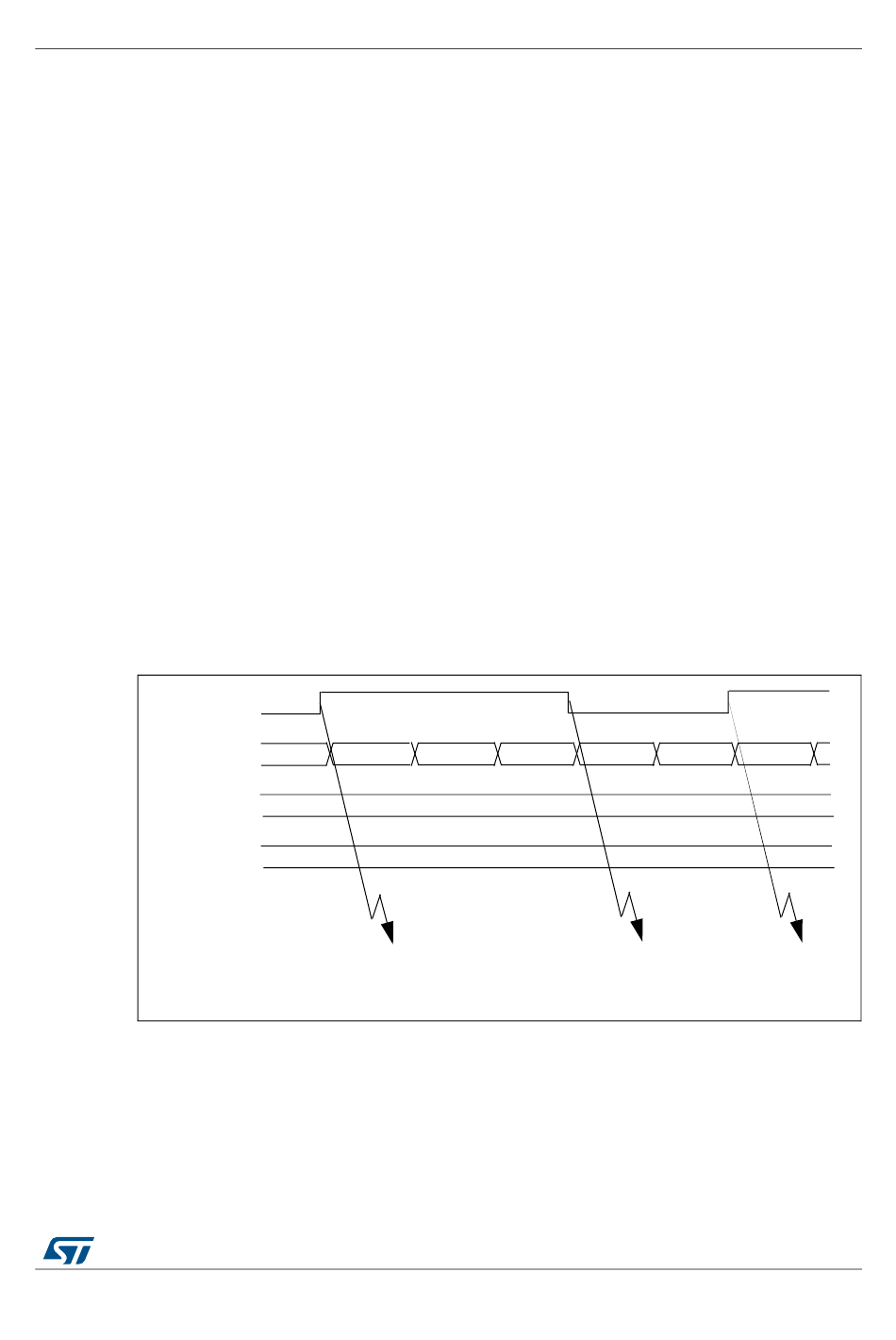

Pwm Input Mode; Forced Output Mode; Figure 117. Pwm Input Mode Timing - ST STM32F423 Reference Manual

Advanced arm-based 32-bit mcus

Hide thumbs Also See for STM32F423:

Table of Contents

PWM input mode

This mode is a particular case of input capture mode. The procedure is the same except:

Two ICx signals are mapped on the same TIx input.

These 2 ICx signals are active on edges with opposite polarity.

One of the two TIxFP signals is selected as trigger input and the slave mode controller

is configured in reset mode.

For example, you can measure the period (in TIMx_CCR1 register) and the duty cycle (in

TIMx_CCR2 register) of the PWM applied on TI1 using the following procedure (depending

on CK_INT frequency and prescaler value):

Select the active input for TIMx_CCR1: write the CC1S bits to 01 in the TIMx_CCMR1

Select the active polarity for TI1FP1 (used both for capture in TIMx_CCR1 and counter

clear): write the CC1P and CC1NP bits to '0' (active on rising edge).

Select the active input for TIMx_CCR2: write the CC2S bits to 10 in the TIMx_CCMR1

Select the active polarity for TI1FP2 (used for capture in TIMx_CCR2): write the CC2P

and CC2NP bits to '1' (active on falling edge).

Select the valid trigger input: write the TS bits to 101 in the TIMx_SMCR register

(TI1FP1 selected).

Configure the slave mode controller in reset mode: write the SMS bits to 100 in the

TIMx_SMCR register.

Enable the captures: write the CC1E and CC2E bits to '1' in the TIMx_CCER register.

In output mode (CCxS bits = 00 in the TIMx_CCMRx register), each output compare signal

(OCxREF and then OCx/OCxN) can be forced to active or inactive level directly by software,

independently of any comparison between the output compare register and the counter.

reset counter

Advanced-control timers (TIM1&TIM8)

RM0430 Rev 8
