RM0430
10.2.5

External interrupt/event line mapping

Up to STM32F413/423 are connected to the 16 external interrupt/event lines in the following
manner:
The five other EXTI lines are connected as follows:
• EXTI line 16 is connected to the PVD output
•
EXTI line 17 is connected to the RTC Alarm event
• EXTI line 18 is connected to the USB OTG FS Wakeup event
•
EXTI line 21 is connected to the RTC Tamper and TimeStamp events
• EXTI line 22 is connected to the RTC Wakeup event
•
EXTI line 23 is connected to the LPTIM1 asynchronous event

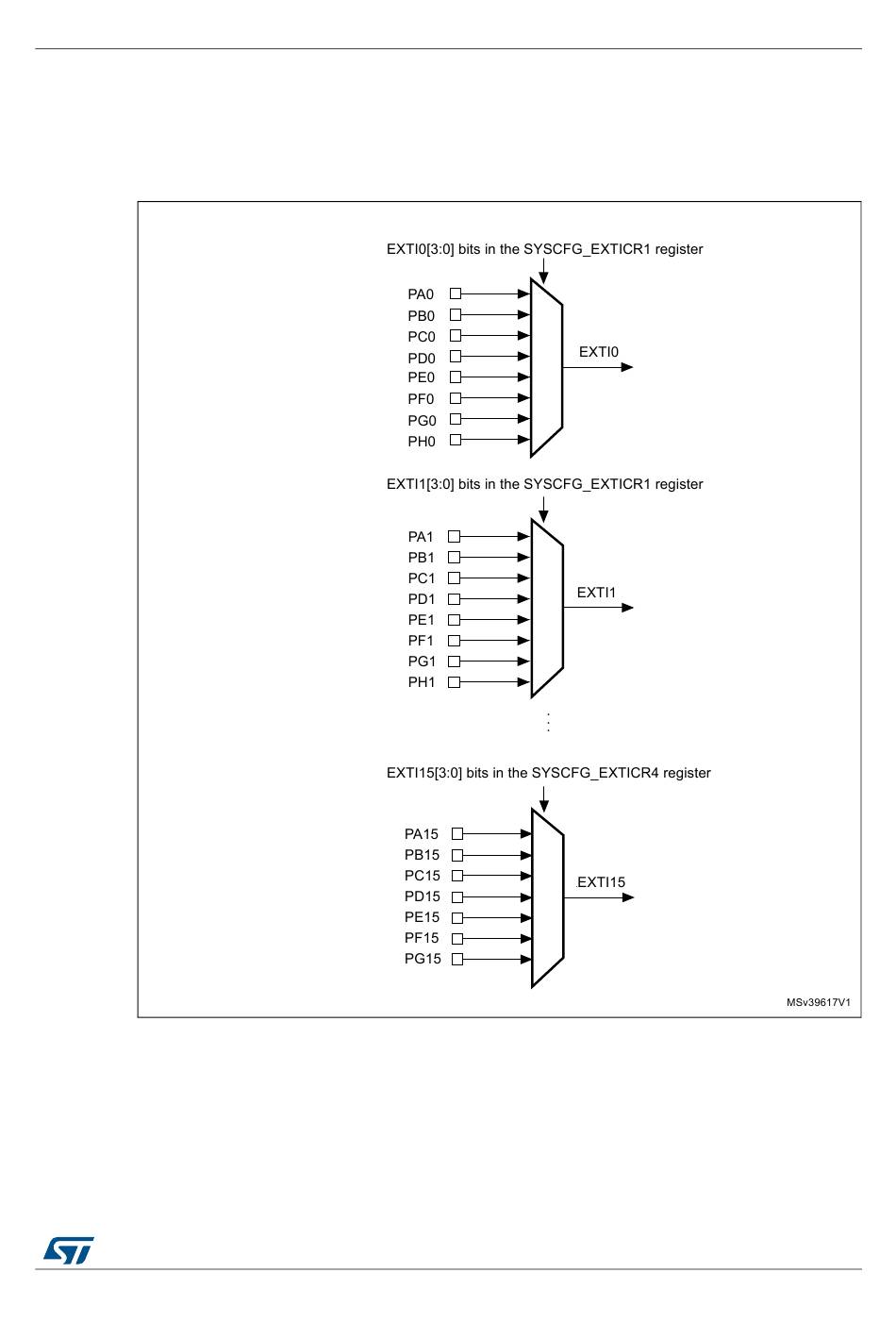

Figure 30. External interrupt/event GPIO mapping

RM0430 Rev 8
Interrupts and events
257/1324
