Basic timers (TIM6/7)

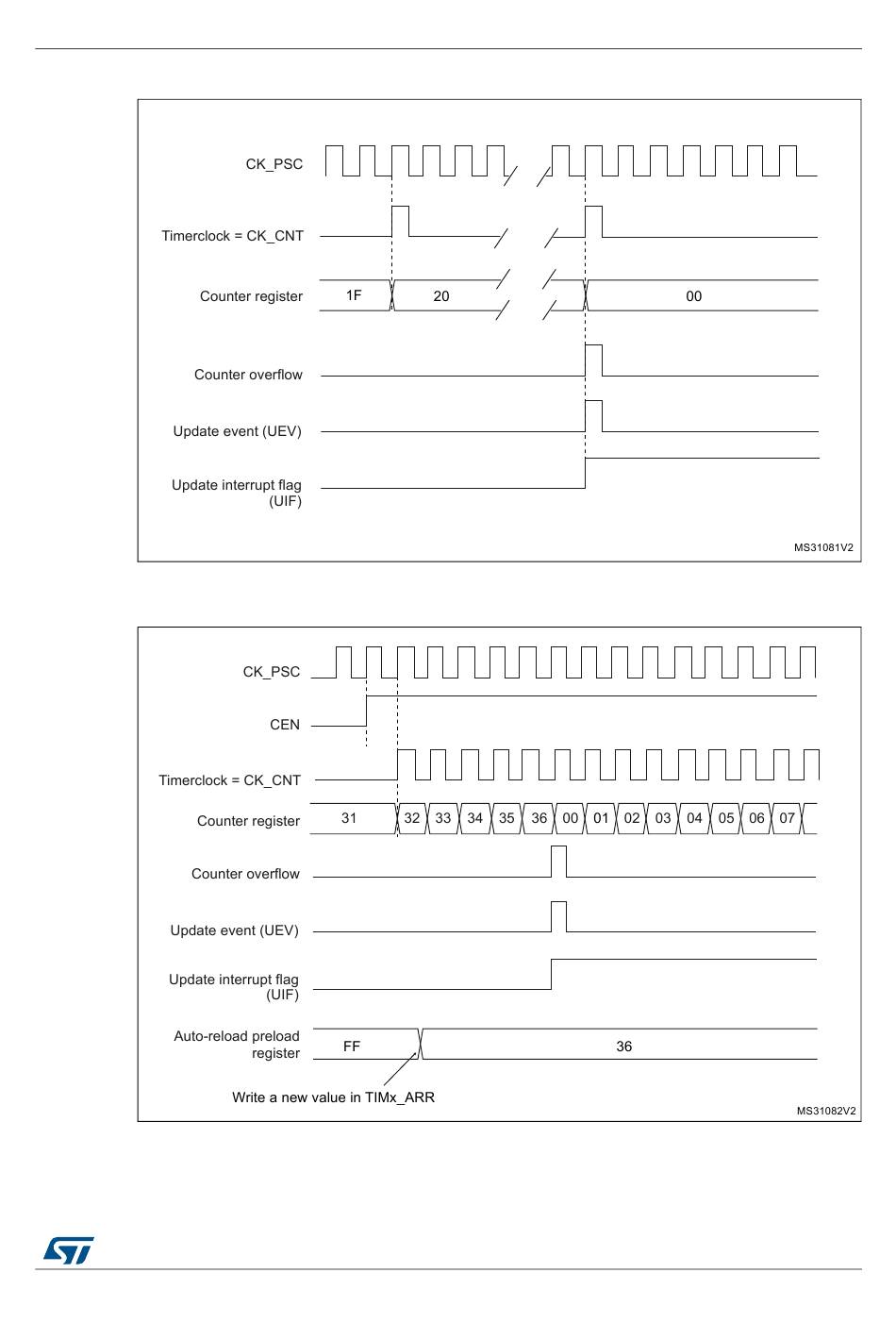

Figure 210. Counter timing diagram, internal clock divided by N

Figure 211. Counter timing diagram, update event when ARPE = 0 (TIMx_ARR not

preloaded)

RM0430 Rev 8

647/1324

654
