Advanced-control timers (TIM1&TIM8)

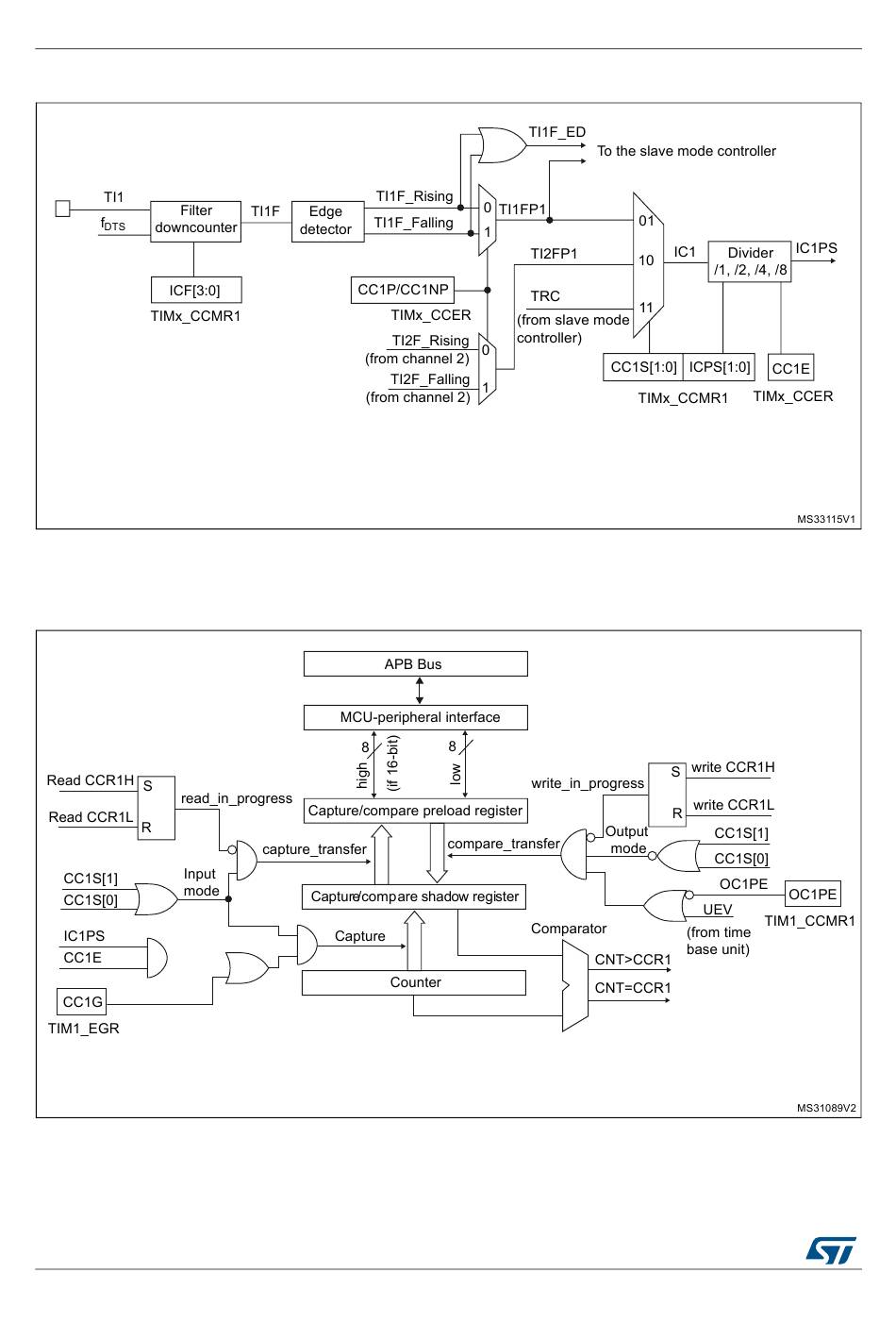

Figure 113. Capture/compare channel (example: channel 1 input stage)
The output stage generates an intermediate waveform which is then used for reference:
OCxRef (active high). The polarity acts at the end of the chain.
482/1324
Figure 114. Capture/compare channel 1 main circuit
RM0430 Rev 8
RM0430
