RM0430
11.2

FMC block diagram

The FSMC consists of the following main blocks:
•
The AHB interface (including the FSMC configuration registers)
• The NOR Flash/PSRAM/SRAM controller
The block diagram is shown in the figure below.
Flexible static memory controller (FSMC)

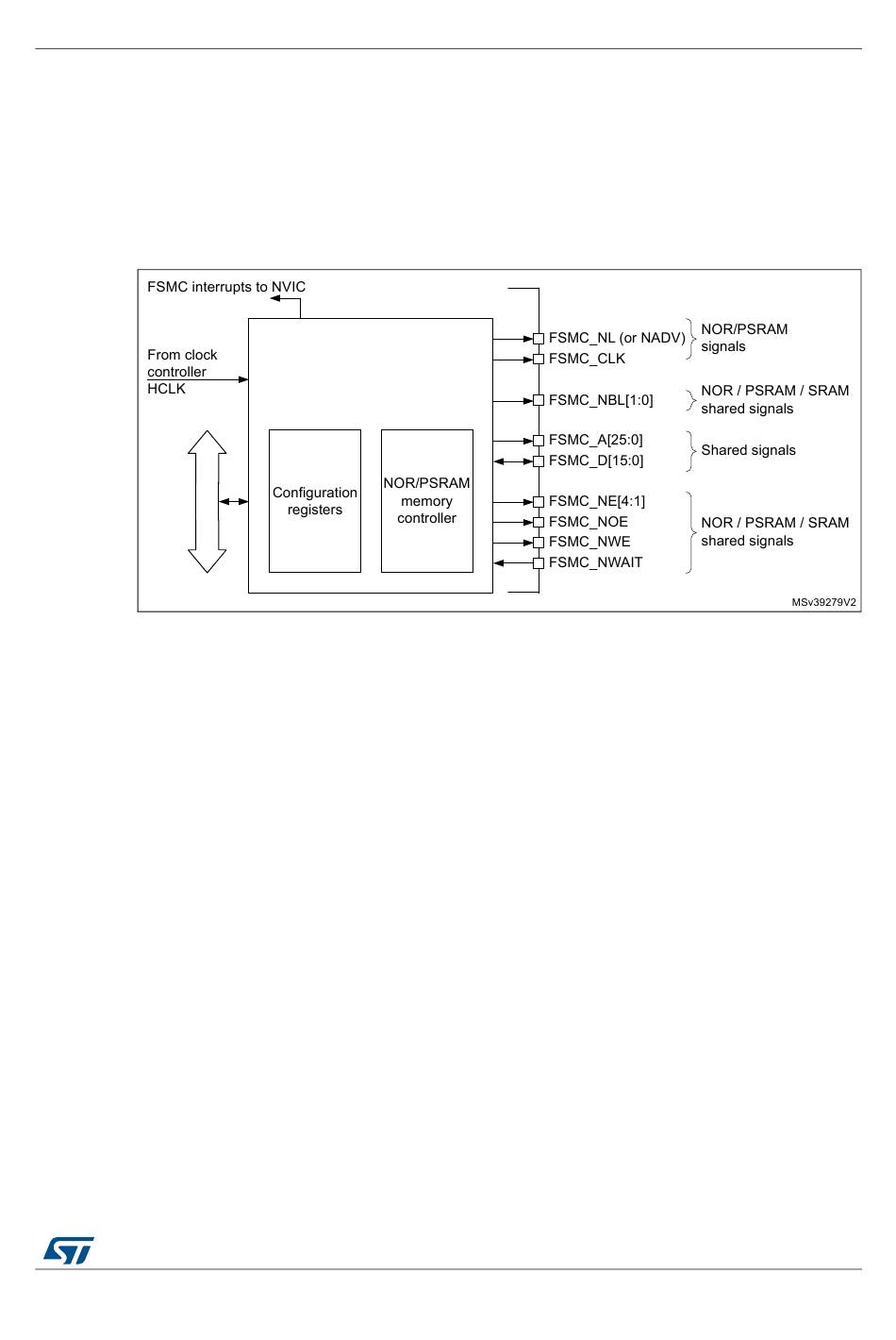

Figure 31. FSMC block diagram

RM0430 Rev 8 265/1324
306
