General-purpose timers (TIM2 to TIM5)
Using one timer as prescaler for another timer
For example, you can configure Timer 1 to act as a prescaler for Timer 2. Refer to
Figure 175
•
Configure Timer 1 master mode to send its Update Event (UEV) as trigger output
(MMS=010 in the TIM1_CR2 register). then it outputs a periodic signal on each counter
overflow.
•
Configure the Timer 1 period (TIM1_ARR registers).
•
Configure Timer 2 to get the input trigger from Timer 1 (TS=000 in the TIM2_SMCR
register).
•
Configure Timer 2 in external clock mode 1 (SMS=111 in TIM2_SMCR register).
•
Start Timer 2 by writing '1 in the CEN bit (TIM2_CR1 register).
•
Start Timer 1 by writing '1 in the CEN bit (TIM1_CR1 register).
Starting 2 timers synchronously in response to an external trigger
In this example, we set the enable of timer 1 when its TI1 input rises, and the enable of
Timer 2 with the enable of Timer 1. Refer to
570/1324

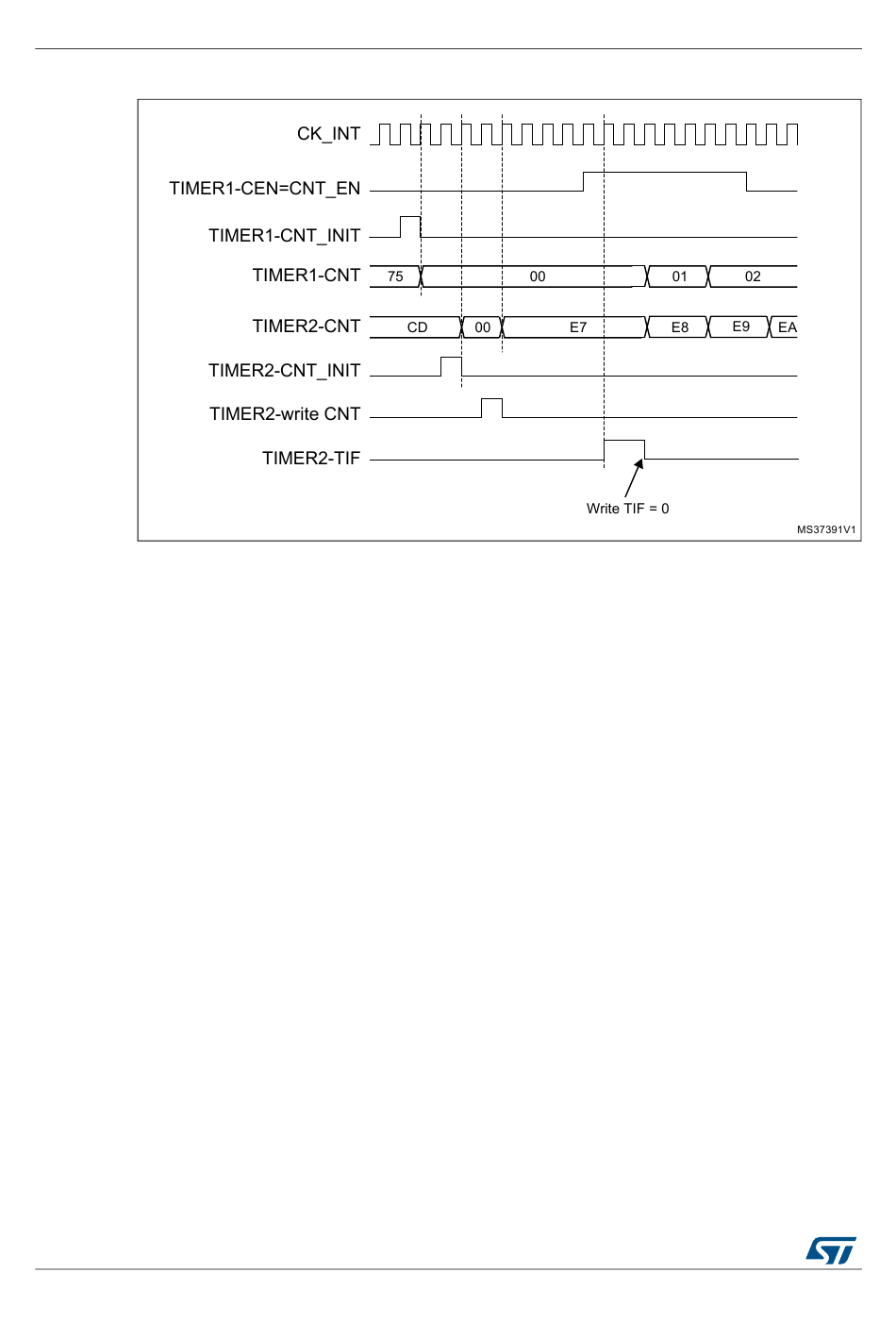

Figure 179. Triggering timer 2 with Enable of timer 1

for connections. To do this:
RM0430 Rev 8
Figure 175 for connections. To ensure the
