Fast-mode Plus Inter-integrated circuit (FMPI2C) interface
This section is relevant only when SMBus feature is supported. Refer to
FMPI2C
In addition to FMPI2C master transfer management (refer to
master
mode) some additional software flowcharts are provided to support SMBus.
SMBus Master transmitter
When the SMBus master wants to transmit the PEC, the PECBYTE bit must be set and the
number of bytes must be programmed in the NBYTES[7:0] field, before setting the START
bit. In this case the total number of TXIS interrupts will be NBYTES-1. So if the PECBYTE
bit is set when NBYTES=0x1, the content of the FMPI2C_PECR register is automatically
transmitted.
If the SMBus master wants to send a STOP condition after the PEC, automatic end mode
should be selected (AUTOEND=1). In this case, the STOP condition automatically follows
the PEC transmission.
824/1324

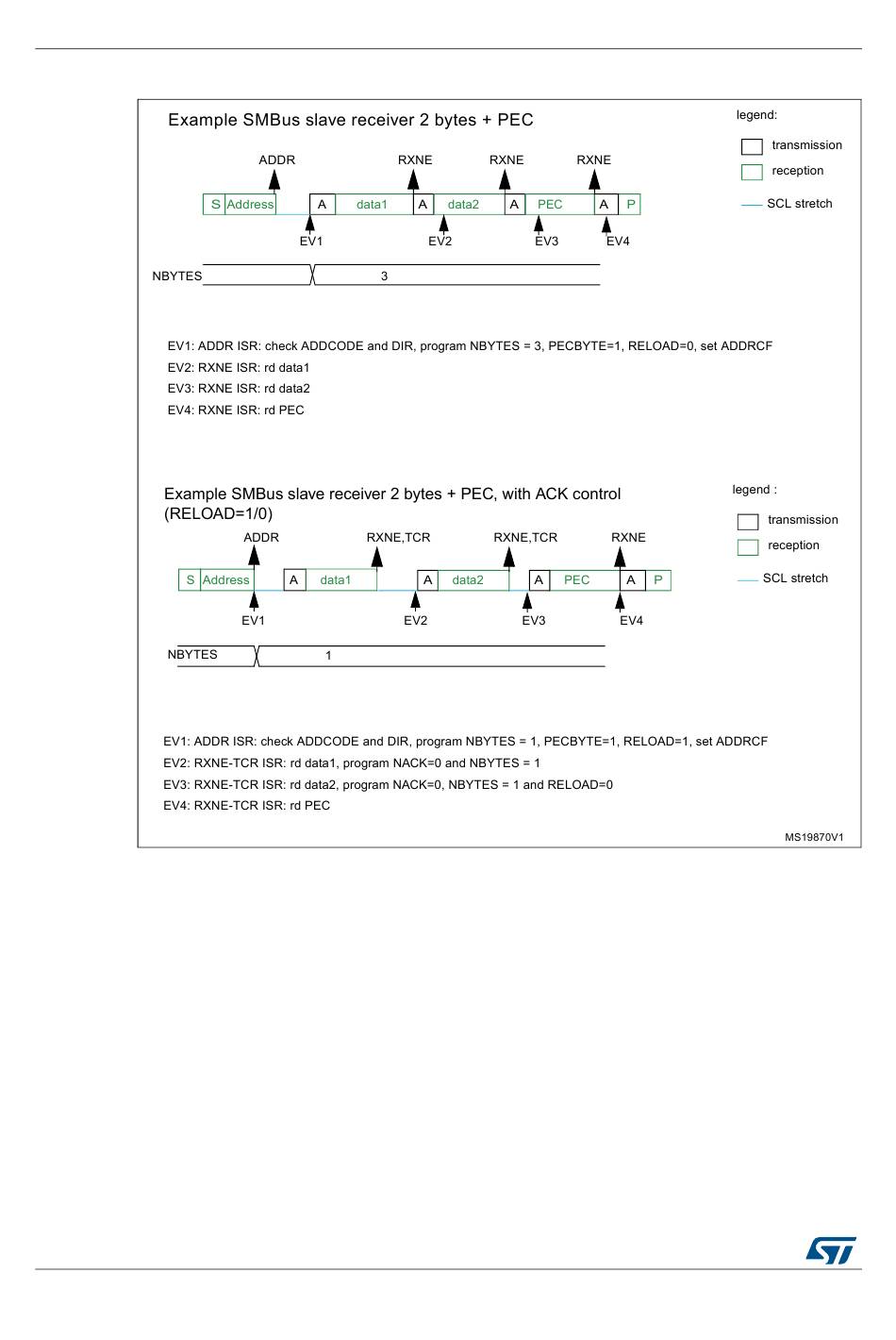

Figure 282. Bus transfer diagrams for SMBus slave receiver (SBC=1)

implementation.
RM0430 Rev 8
Section 26.3:
Section 26.4.8: FMPI2C
RM0430
