Figure 257. Setup And Hold Timings - ST STM32F423 Reference Manual

RM0430 Fast-mode Plus Inter-integrated circuit (FMPI2C) interface
FMPI2C timings
The timings must be configured in order to guarantee a correct data hold and setup time,
used in master and slave modes. This is done by programming the PRESC[3:0],
SCLDEL[3:0] and SDADEL[3:0] bits in the FMPI2C_TIMINGR register.
The STM32CubeMX tool calculates and provides the I2C_TIMINGR content in the I2C
configuration window

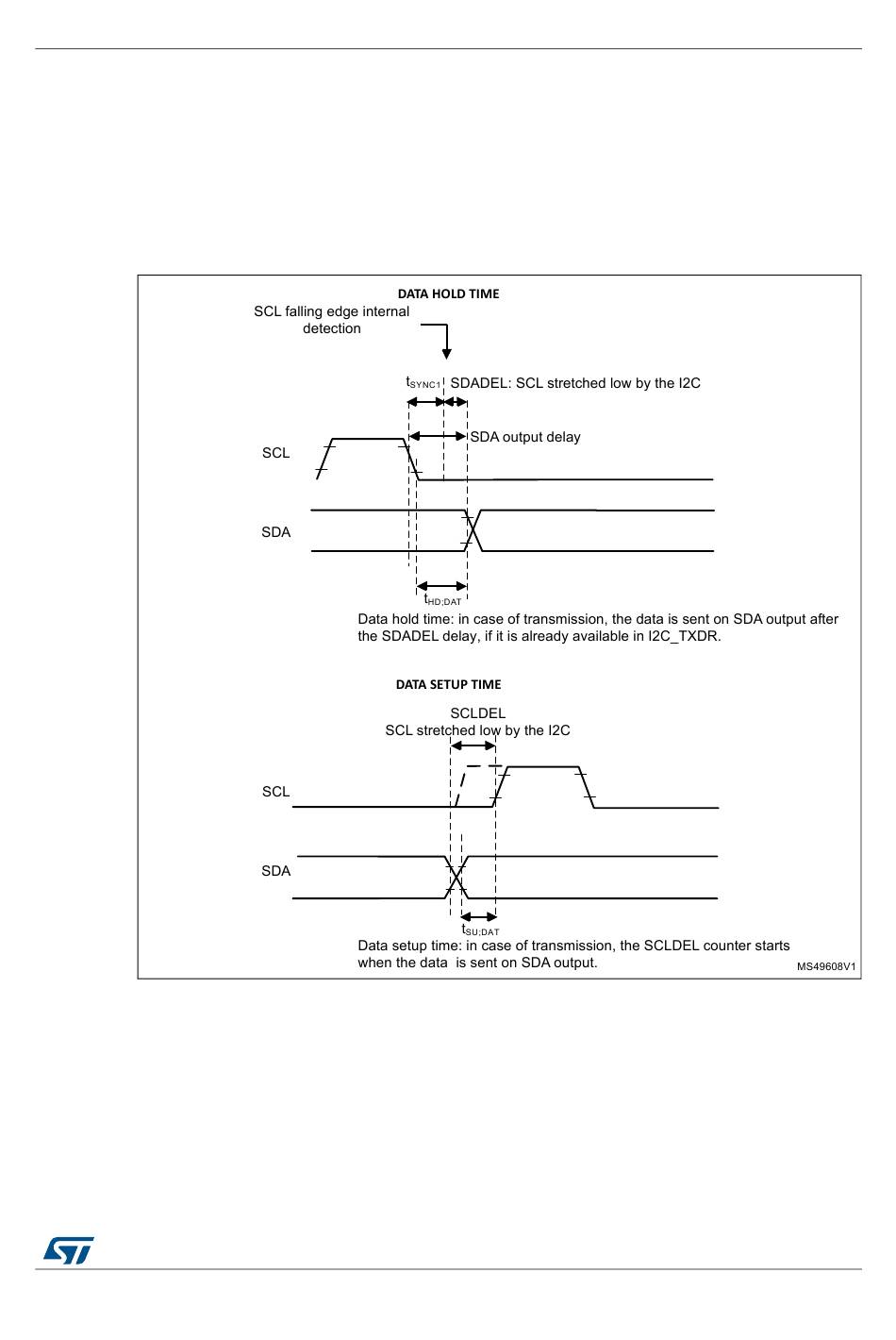

Figure 257. Setup and hold timings
