Advanced-control timers (TIM1&TIM8)

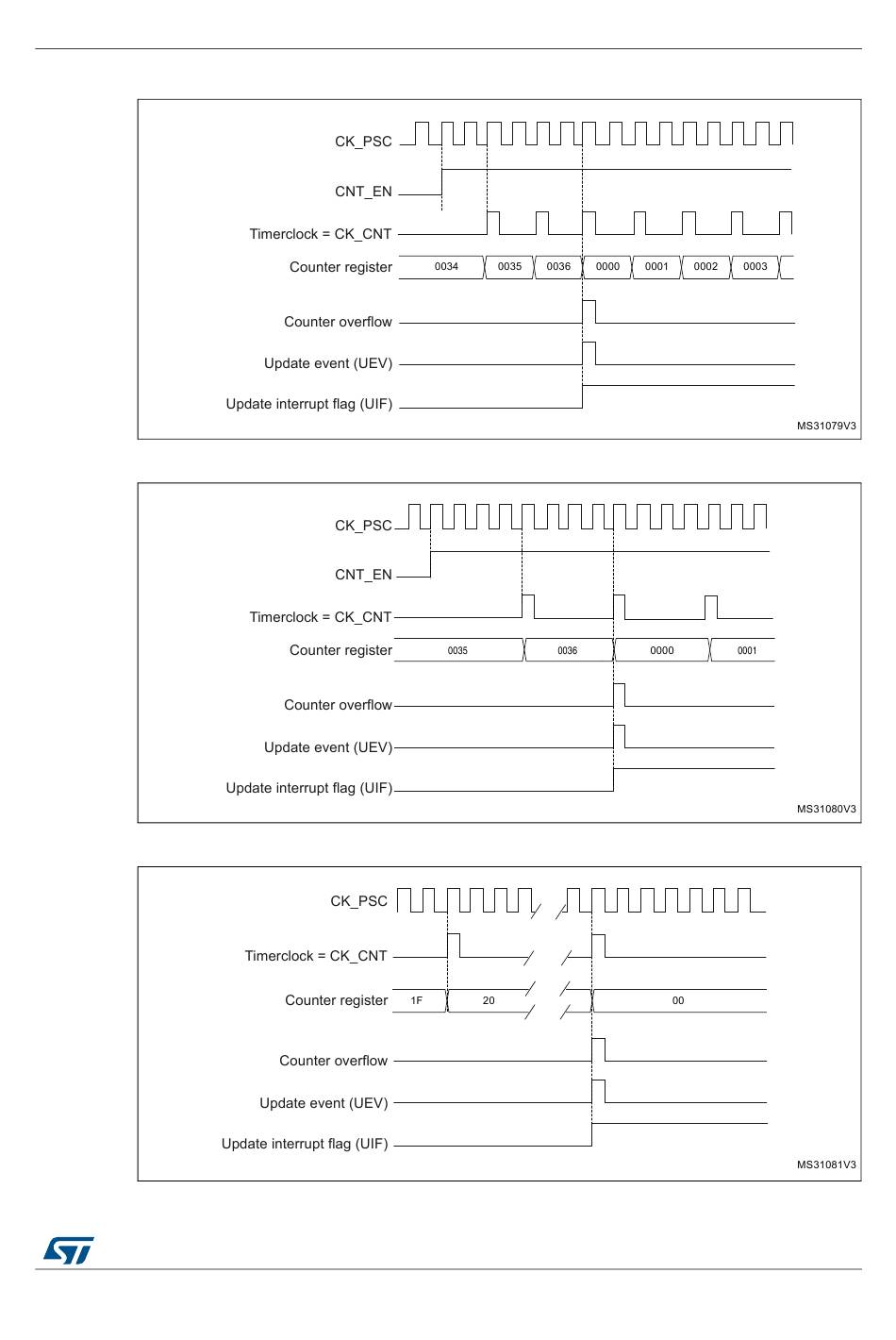

Figure 91. Counter timing diagram, internal clock divided by 2

Figure 92. Counter timing diagram, internal clock divided by 4

Figure 93. Counter timing diagram, internal clock divided by N

RM0430 Rev 8

467/1324
