RM0430 Digital filter for sigma delta modulators (DFSDM)
The detection of a clock absence in Manchester coding (after a first successful
synchronization) is based on changes comparison of coded serial data input signal with
output clock generation (CKOUT signal). There must be a voltage level change on DATINy
pin during 2 periods of CKOUT signal (which is controlled by CKOUTDIV bits in
DFSDM_CH0CFGR1 register). This condition also defines the minimum data rate to be able
to correctly recover the Manchester coded data and clock signals.
The maximum data rate of Manchester coded data must be less than the CKOUT signal.
So to correctly receive Manchester coded data, the CKOUTDIV divider must be set
according the formula:
( ( ) × ) T < < ( × × )
CKOUTDIV 1 T 2 CKOUTDIV T
+
SYSCLK Manchester clock SYSCLK
A clock absence flag is set (CKABF[y] = 1) and an interrupt can be invoked (if CKABIE=1) in
case of an input clock recovery error (see CKABF[7:0] in DFSDM_FLT0ISR register and
CKABEN in DFSDM_CHyCFGR1). After a clock absence flag clearing (by CLRCKABF in
DFSDM_FLT0ICR register), the clock absence flag is refreshed.

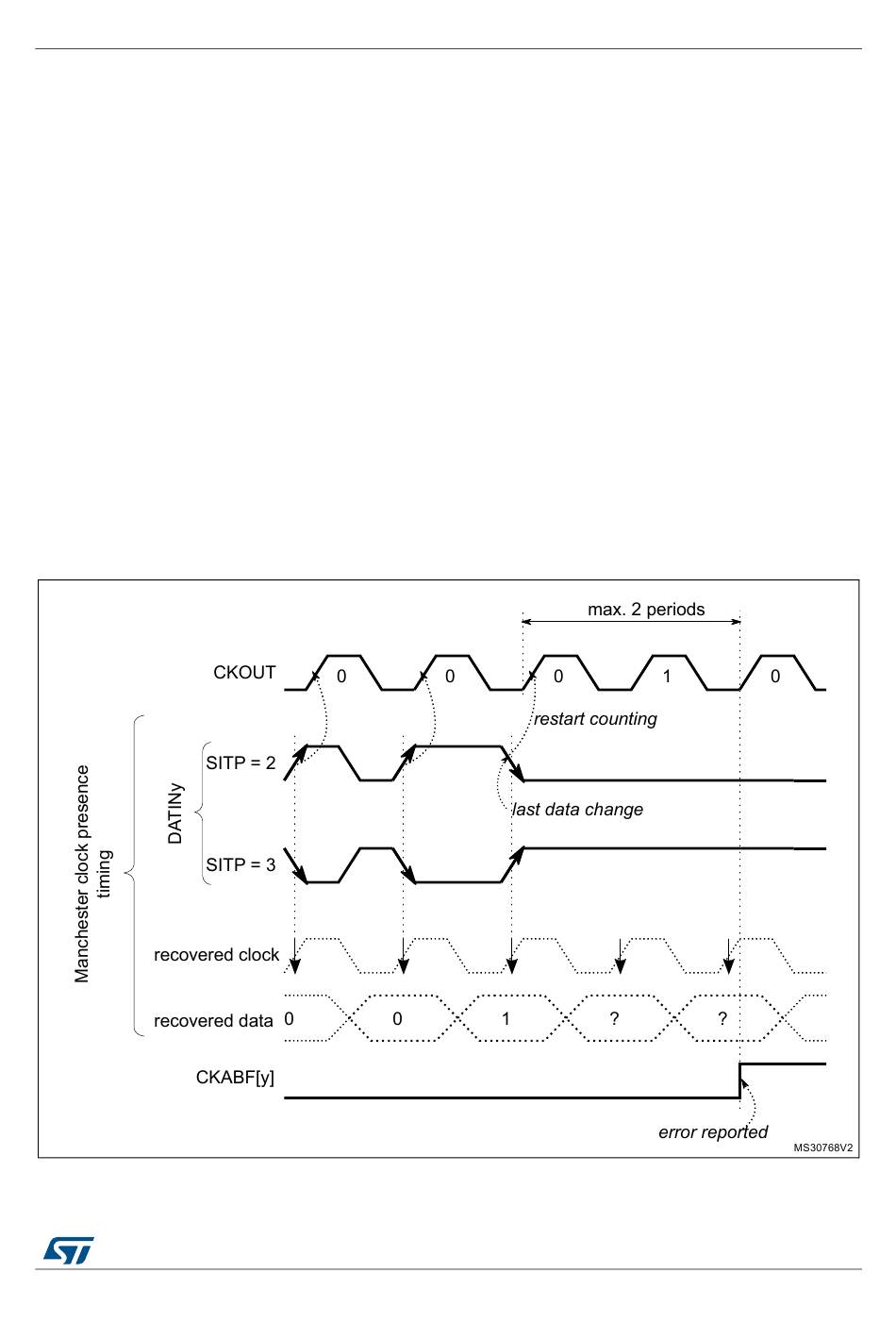

Figure 79. Clock absence timing diagram for Manchester coding
