Figure 186. Counter Timing Diagram, Internal Clock Divided By 2; Figure 187. Counter Timing Diagram, Internal Clock Divided By 4; Figure 188. Counter Timing Diagram, Internal Clock Divided By N - ST STM32F423 Reference Manual

RM0430 General-purpose timers (TIM9 to TIM14)

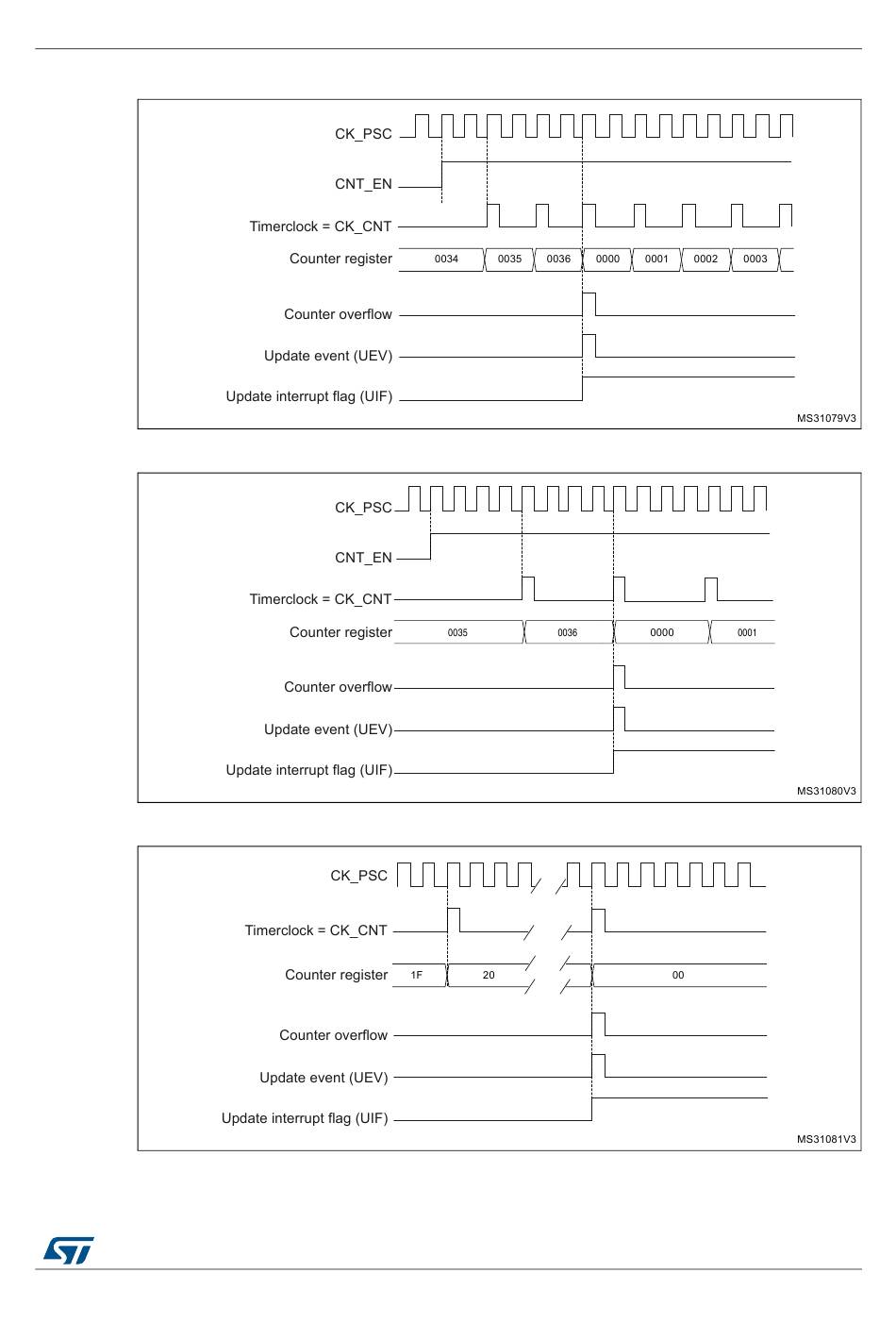

Figure 186. Counter timing diagram, internal clock divided by 2

Figure 187. Counter timing diagram, internal clock divided by 4

Figure 188. Counter timing diagram, internal clock divided by N
