General-purpose timers (TIM2 to TIM5)

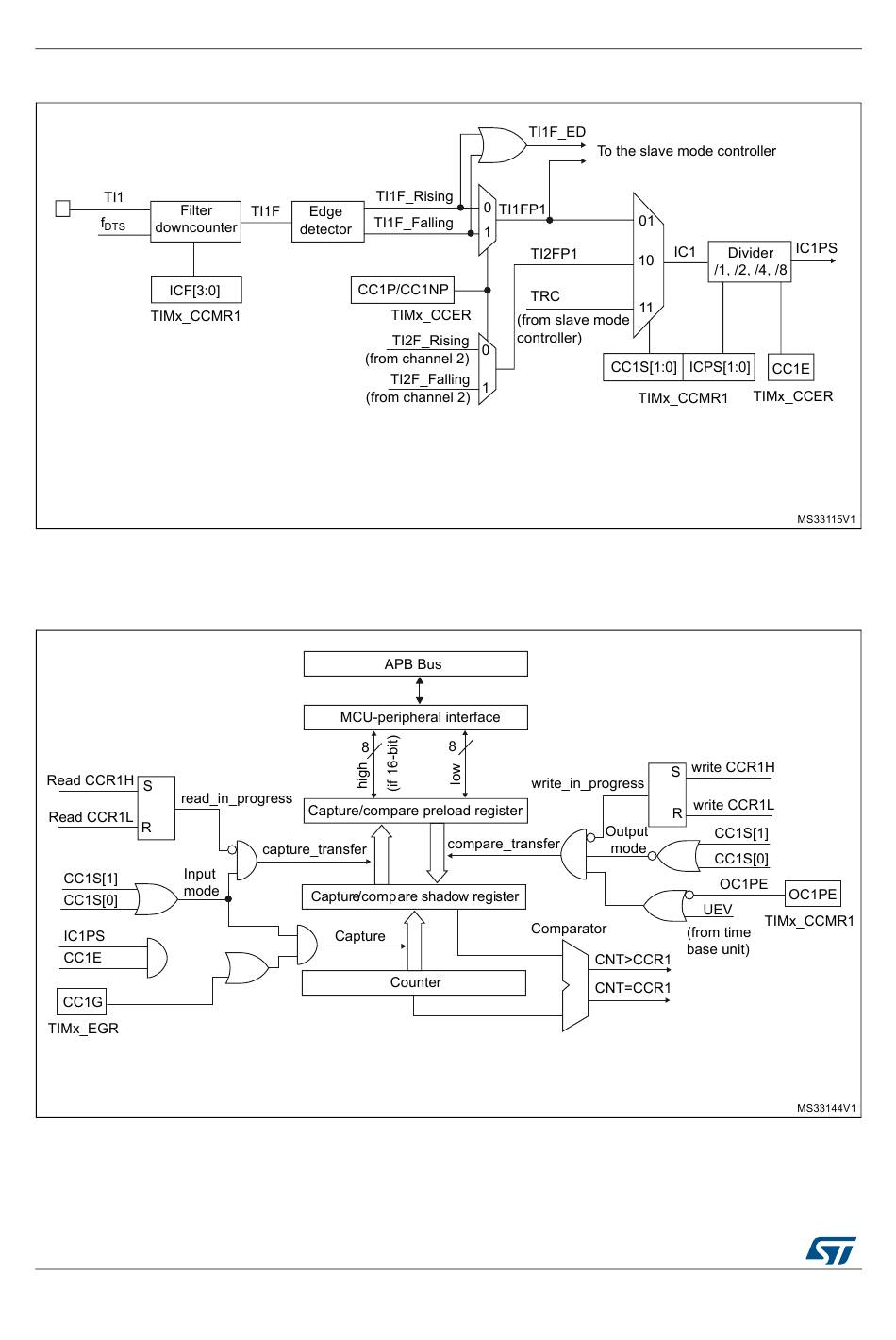

Figure 160. Capture/compare channel (example: channel 1 input stage)
The output stage generates an intermediate waveform which is then used for reference:
OCxRef (active high). The polarity acts at the end of the chain.
550/1324
Figure 161. Capture/compare channel 1 main circuit
RM0430 Rev 8
RM0430
