Operating elements for crane operation
9.2 Short description of the operating elements
9.2.10
9 - 106
Inclination indicators
à
Inclination indicators , p. 12 - 60

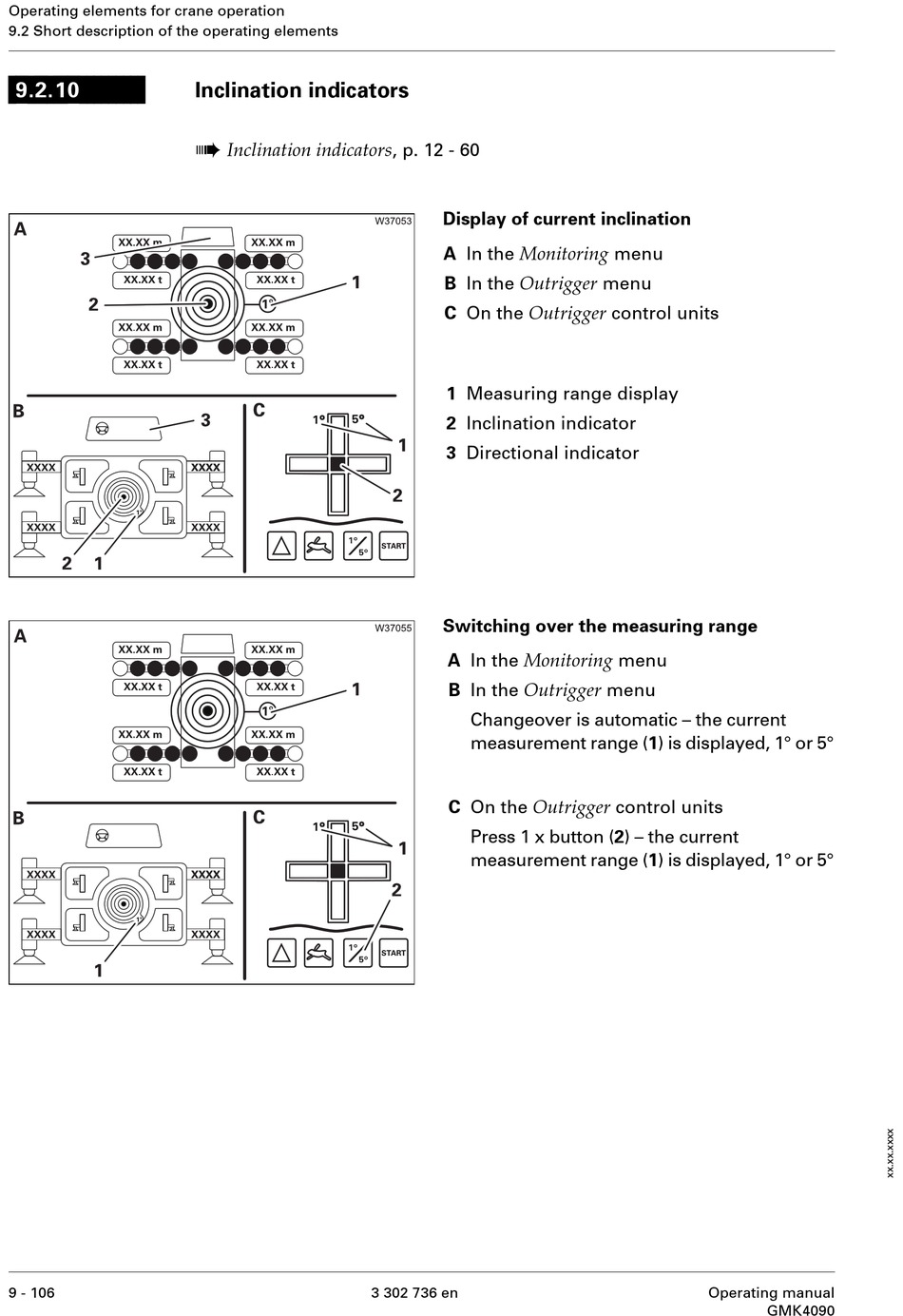

Display of current inclination
A In the Monitoring menu
B In the Outrigger menu
C On the Outrigger control units
1 Measuring range display
2 Inclination indicator
3 Directional indicator
Switching over the measuring range
A In the Monitoring menu
B In the Outrigger menu
Changeover is automatic – the current
measurement range (1) is displayed, 1° or 5°
C On the Outrigger control units
Press 1 x button (2) – the current
measurement range (1) is displayed, 1° or 5°
