Figure 240. Counter Timing Diagram, Internal Clock Divided By 1; Figure 241. Counter Timing Diagram, Internal Clock Divided By 2 - ST STM32WL5 Series Reference Manual

Advanced arm-based 32-bit mcus with sub-ghz radio solution
Hide thumbs Also See for STM32WL5 Series:
Table of Contents

Advertisement

RM0453
Timerclock = CK_CNT
Counter register
Counter overflow
Update event (UEV)
Update interrupt flag
Timerclock = CK_CNT
Counter register
Counter overflow
Update event (UEV)
Update interrupt flag

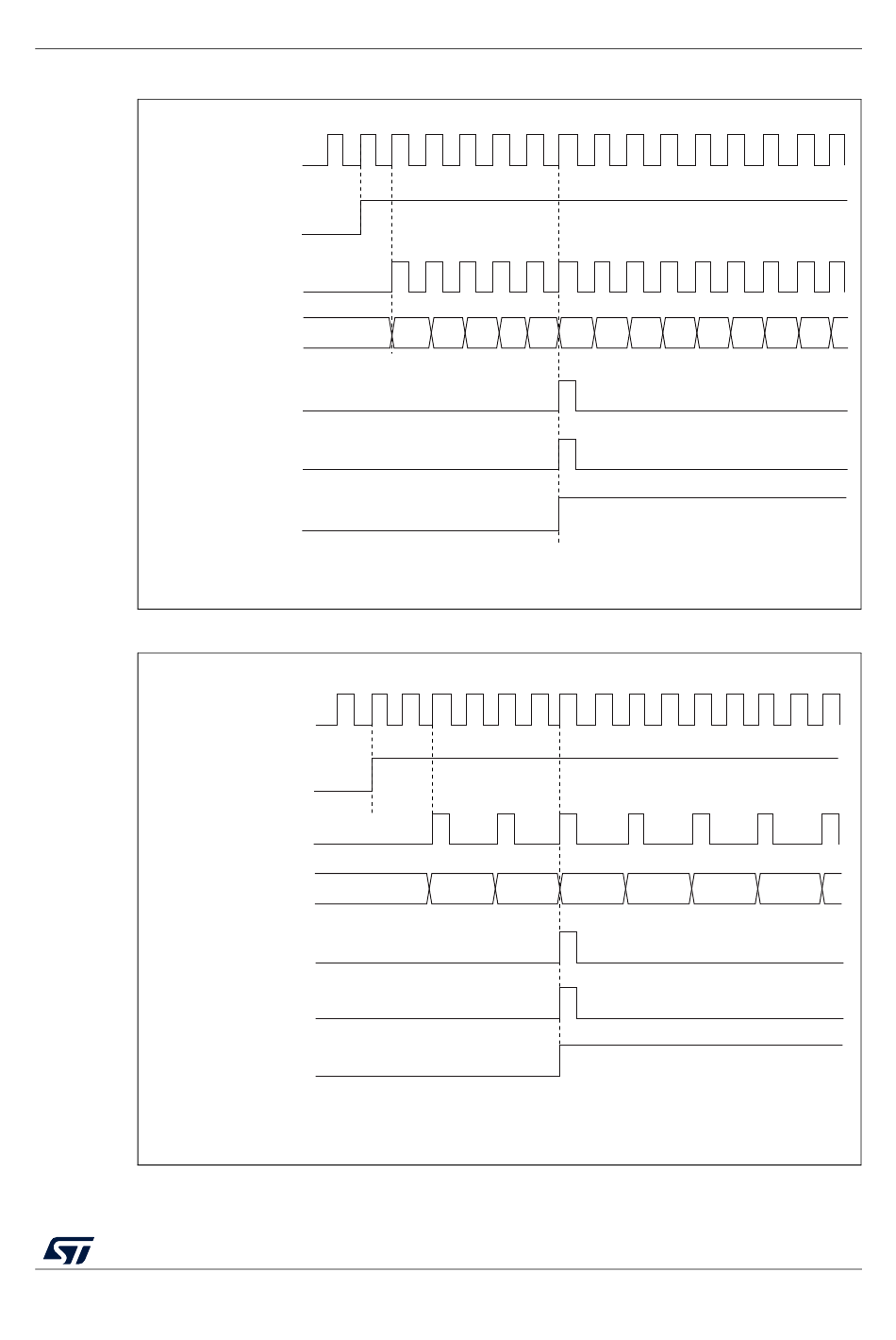

Figure 240. Counter timing diagram, internal clock divided by 1

CK_PSC
CNT_EN
31
(UIF)

Figure 241. Counter timing diagram, internal clock divided by 2

CK_PSC
CNT_EN
0034
(UIF)
RM0453 Rev 1
General-purpose timers (TIM16/TIM17)
32
33
34 35 36
00
0036
0035
01
02
03
04
05
0000
0002
0001
06
07
MS31078V2
0003
MS31079V2
