Inter-integrated circuit (I2C) interface
RM0453

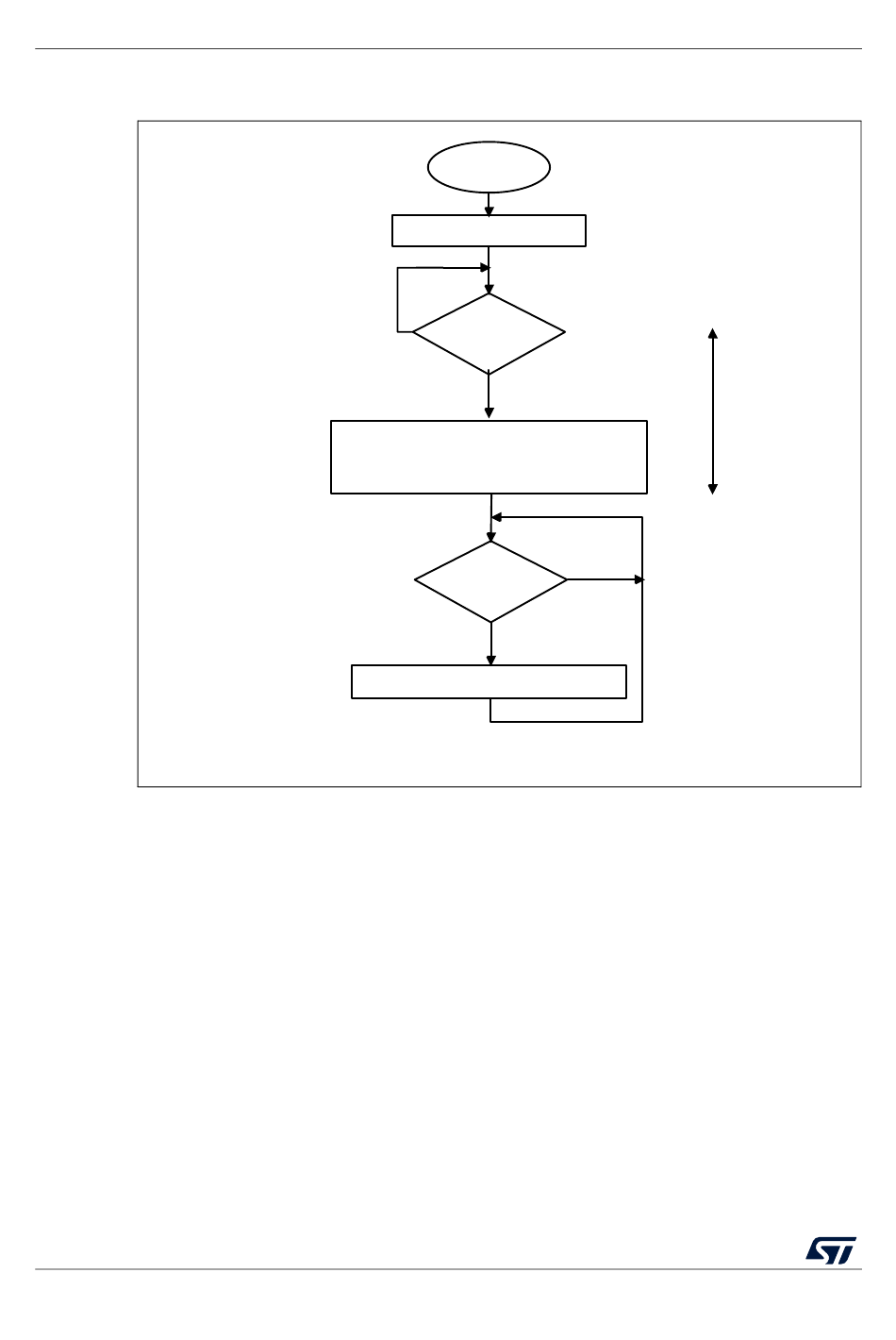

Figure 282. Transfer sequence flowchart for I2C slave transmitter,
NOSTRETCH= 0
Slave
transmission
Slave initialization
No
I2C_ISR.ADDR
=1?
Yes
SCL
stretched
Read ADDCODE and DIR in I2C_ISR
Optional: Set I2C_ISR.TXE = 1
Set I2C_ICR.ADDRCF
No
I2C_ISR.TXIS
=1?
Yes
Write I2C_TXDR.TXDATA
MS19851V2
1074/1461
RM0453 Rev 1
