Slave receiver

RXNE is set in I2C_ISR when the I2C_RXDR is full, and generates an interrupt if RXIE is

set in I2C_CR1. RXNE is cleared when I2C_RXDR is read.

When a STOP is received and STOPIE is set in I2C_CR1, STOPF is set in I2C_ISR and an

interrupt is generated.

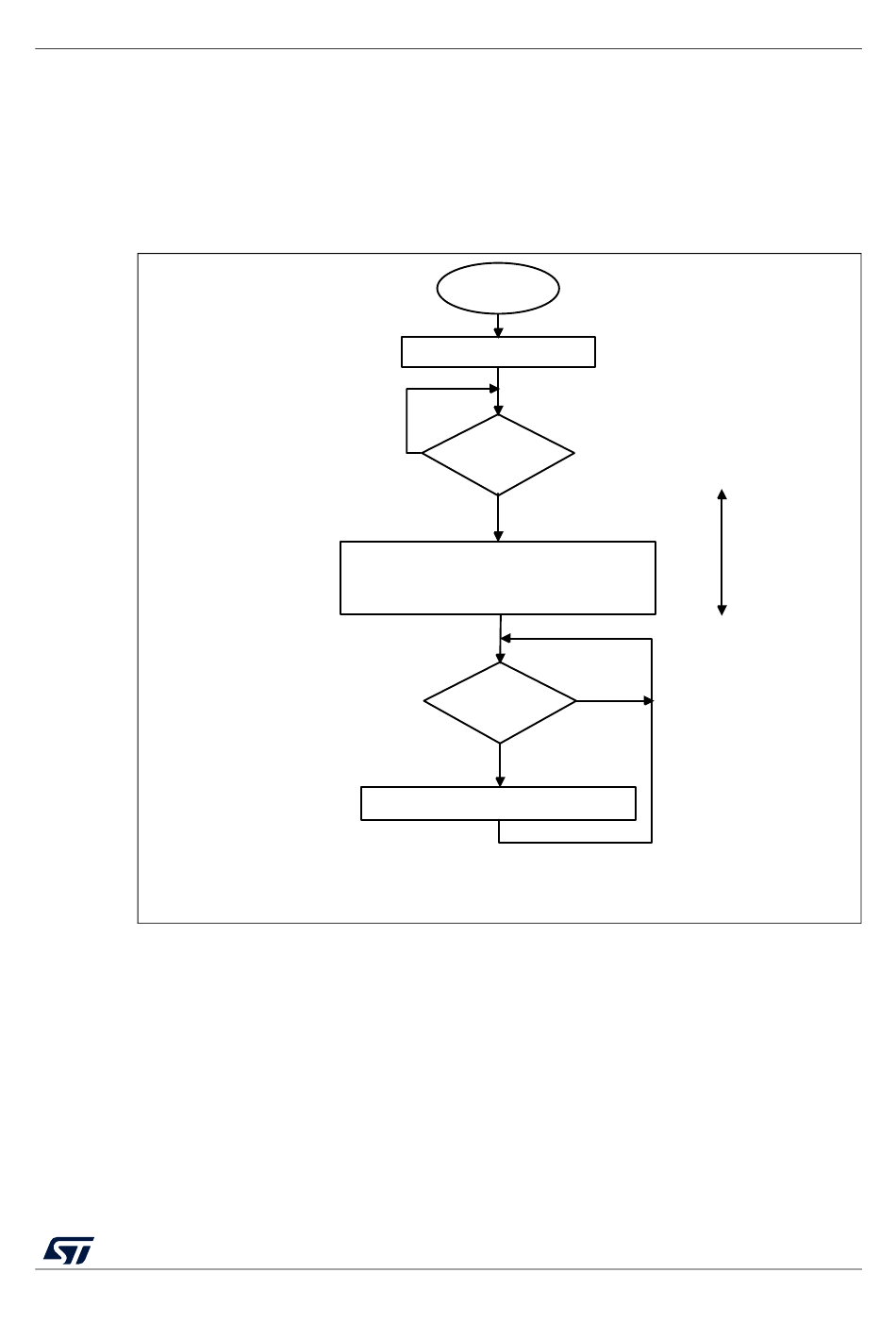

Figure 285. Transfer sequence flowchart for slave receiver with NOSTRETCH=0

Inter-integrated circuit (I2C) interface

Slave reception

Slave initialization

I2C_ISR.ADDR

Read ADDCODE and DIR in I2C_ISR

Set I2C_ICR.ADDRCF

I2C_ISR.RXNE

Write I2C_RXDR.RXDATA

RM0453 Rev 1
