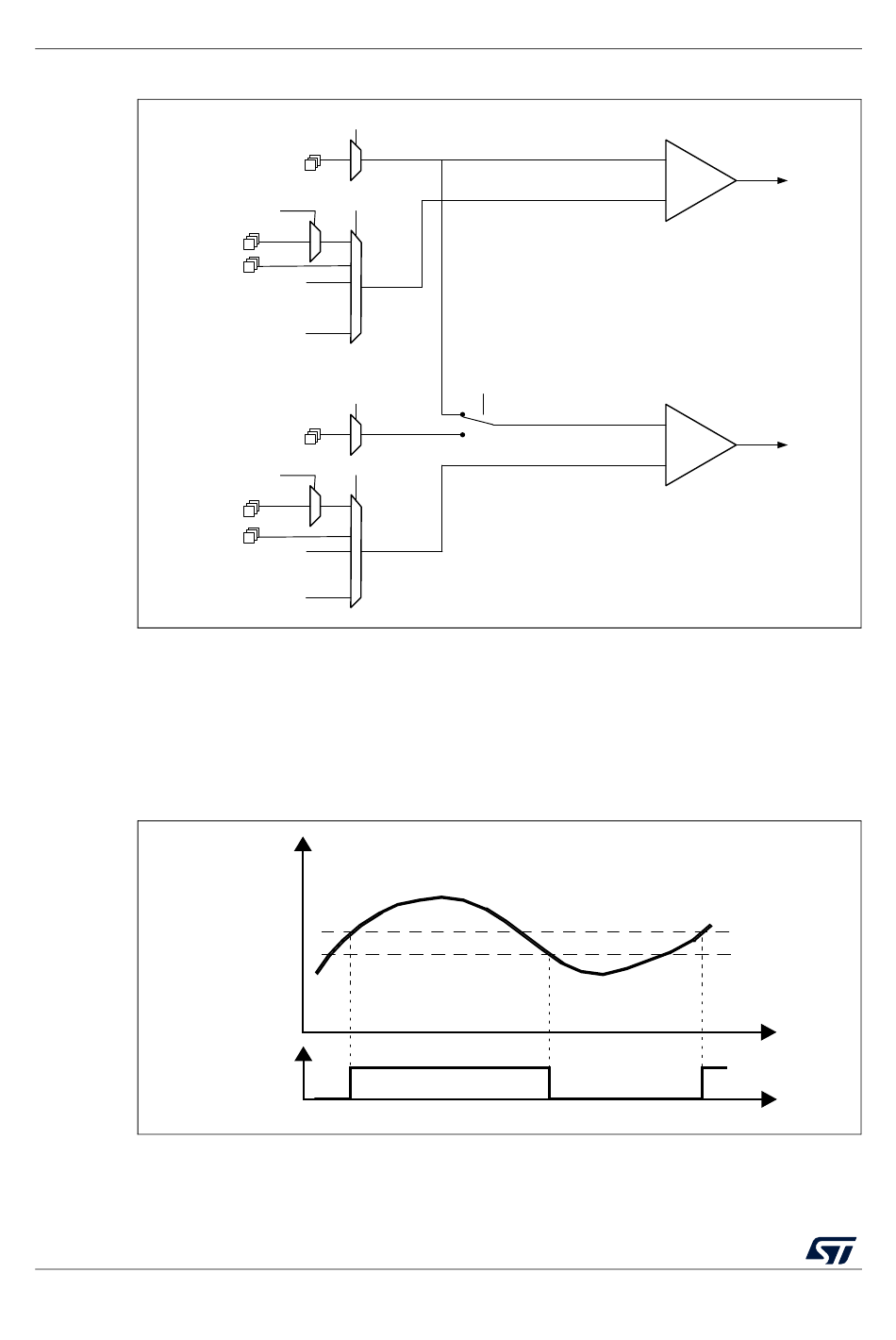

Hysteresis; Figure 95. Window Mode; Figure 96. Comparator Hysteresis - ST STM32WL5 Series Reference Manual

Advanced arm-based 32-bit mcus with sub-ghz radio solution

Hide thumbs Also See for STM32WL5 Series:

Table of Contents

Comparator (COMP)

COMPx_INMESEL

COMPx_INM I/Os

COMPy_INMESEL

COMPy_INM I/Os

Hysteresis

The comparator includes a programmable hysteresis to avoid spurious output transitions in

case of noisy signals. The hysteresis can be disabled if it is not needed (for instance when

exiting from low-power mode) to be able to force the hysteresis value using external

COMPx_INPSEL

COMPx_INP I/Os

COMPx_INMSEL

Internal sources

COMPx_INPSEL

COMPy_INP I/Os

COMPy_INMSEL

Internal sources

INM - V hyst
