I2S functional description

37.7.1

I2S general description

The block diagram of the I2S is shown in
MOSI/SD
MISO
NSS/WS
CK
I2SMOD
MCK
1. MCK is mapped on the MISO pin.
The SPI can function as an audio I2S interface when the I2S capability is enabled (by
setting the I2SMOD bit in the SPIx_I2SCFGR register). This interface mainly uses the same
pins, flags and interrupts as the SPI.
1294/1461

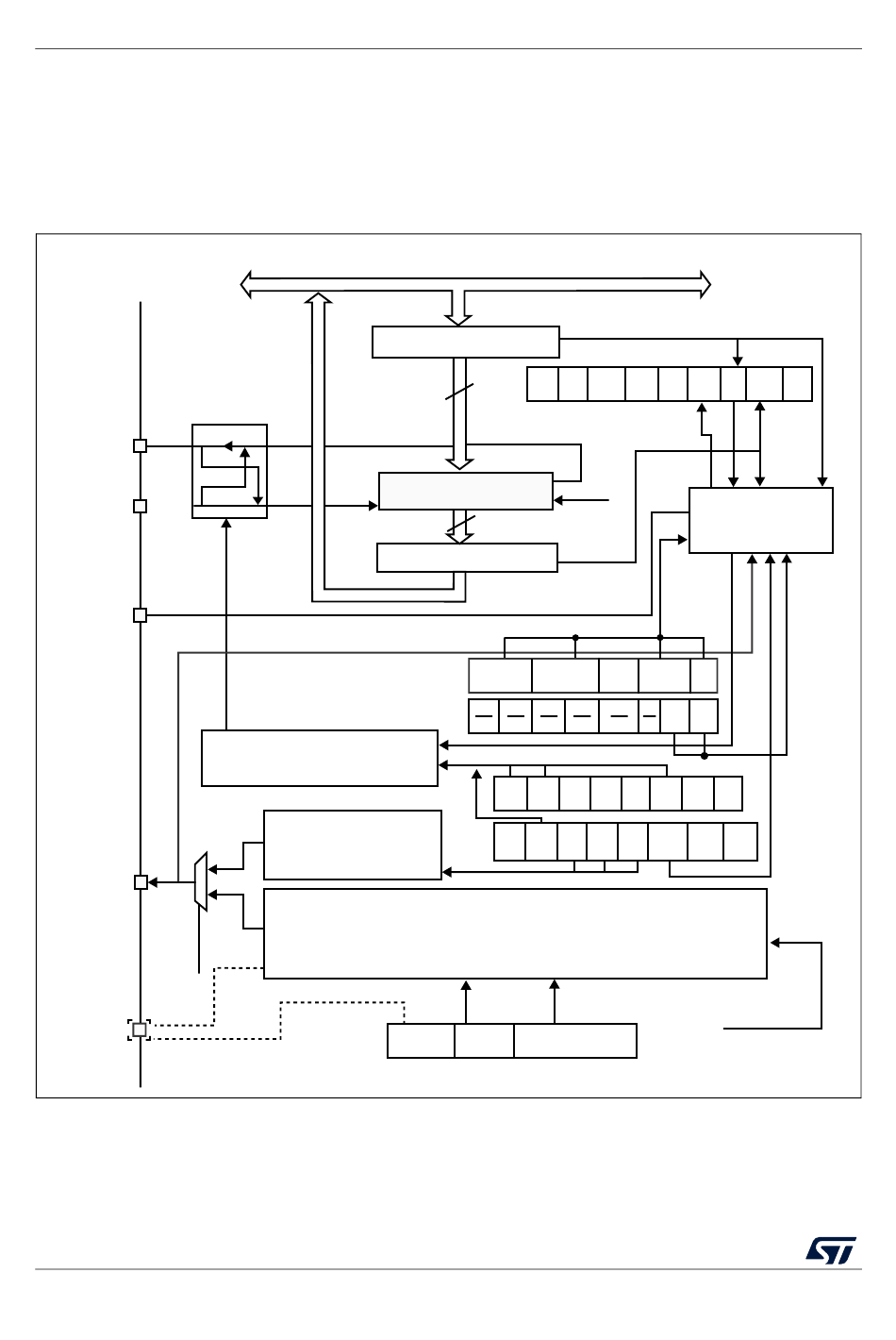

Figure 362. I2S block diagram
