RM0453
NSS
pin
37.5.6
Communication formats
During SPI communication, receive and transmit operations are performed simultaneously.
The serial clock (SCK) synchronizes the shifting and sampling of the information on the data
lines. The communication format depends on the clock phase, the clock polarity and the
data frame format. To be able to communicate together, the master and slaves devices must
follow the same communication format.
Clock phase and polarity controls
Four possible timing relationships may be chosen by software, using the CPOL and CPHA
bits in the SPIx_CR1 register. The CPOL (clock polarity) bit controls the idle state value of
the clock when no data is being transferred. This bit affects both master and slave modes. If
CPOL is reset, the SCK pin has a low-level idle state. If CPOL is set, the SCK pin has a
high-level idle state.
If the CPHA bit is set, the second edge on the SCK pin captures the first data bit transacted
(falling edge if the CPOL bit is reset, rising edge if the CPOL bit is set). Data are latched on
each occurrence of this clock transition type. If the CPHA bit is reset, the first edge on the
SCK pin captures the first data bit transacted (falling edge if the CPOL bit is set, rising edge
if the CPOL bit is reset). Data are latched on each occurrence of this clock transition type.
The combination of CPOL (clock polarity) and CPHA (clock phase) bits selects the data
capture clock edge.
Serial peripheral interface / integrated interchip sound (SPI/I2S)

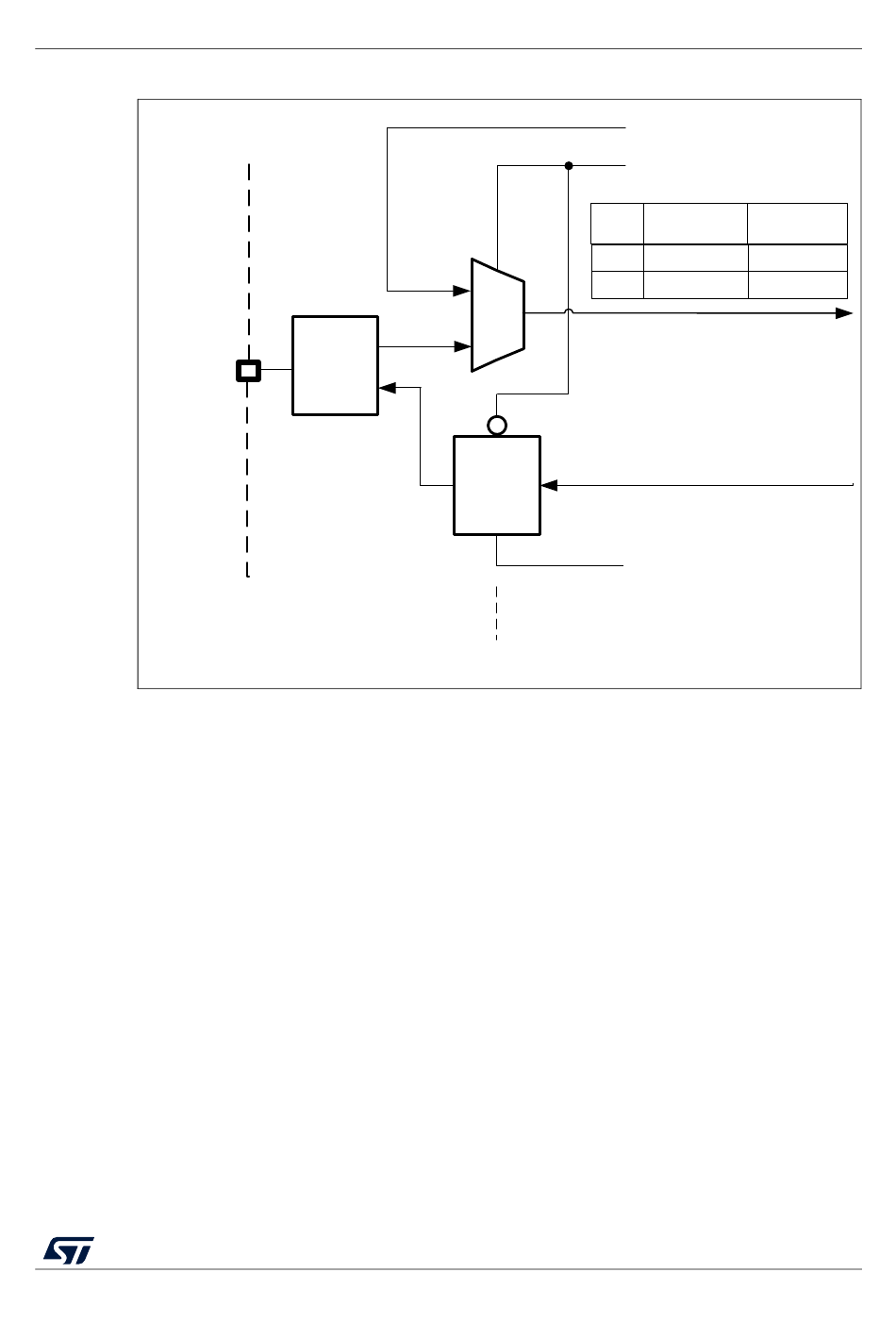

Figure 352. Hardware/software slave select management
GPIO
logic
NSS external logic
RM0453 Rev 1
SSI control bit
SSM control bit
NSS
Inp.
Vdd
Vss
1
0
NSS
Output
(used in Master mode and NSS
Control
SSOE control bit
NSS internal logic
Master
Slave mode
mode
OK
Non active
Conflict
Active
NSS Input
NSS Output
HW management only)
MSv35526V6
1275/1461
