Inter-integrated circuit (I2C) interface
34.4.4

Mode selection

The interface can operate in one of the four following modes:
•
Slave transmitter
•
Slave receiver
•
Master transmitter
•
Master receiver
By default, it operates in slave mode. The interface automatically switches from slave to
master when it generates a START condition, and from master to slave if an arbitration loss
or a STOP generation occurs, allowing multimaster capability.
Communication flow
In Master mode, the I2C interface initiates a data transfer and generates the clock signal. A
serial data transfer always begins with a START condition and ends with a STOP condition.
Both START and STOP conditions are generated in master mode by software.
In Slave mode, the interface is capable of recognizing its own addresses (7 or 10-bit), and
the general call address. The general call address detection can be enabled or disabled by
software. The reserved SMBus addresses can also be enabled by software.
Data and addresses are transferred as 8-bit bytes, MSB first. The first byte(s) following the
START condition contain the address (one in 7-bit mode, two in 10-bit mode). The address
is always transmitted in Master mode.
A 9th clock pulse follows the 8 clock cycles of a byte transfer, during which the receiver must
send an acknowledge bit to the transmitter. Refer to the following figure.
SDA
SCL
Acknowledge can be enabled or disabled by software. The I2C interface addresses can be
selected by software.
34.4.5

I2C initialization

Enabling and disabling the peripheral
The I2C peripheral clock must be configured and enabled in the clock controller.
Then the I2C can be enabled by setting the PE bit in the I2C_CR1 register.
1062/1461

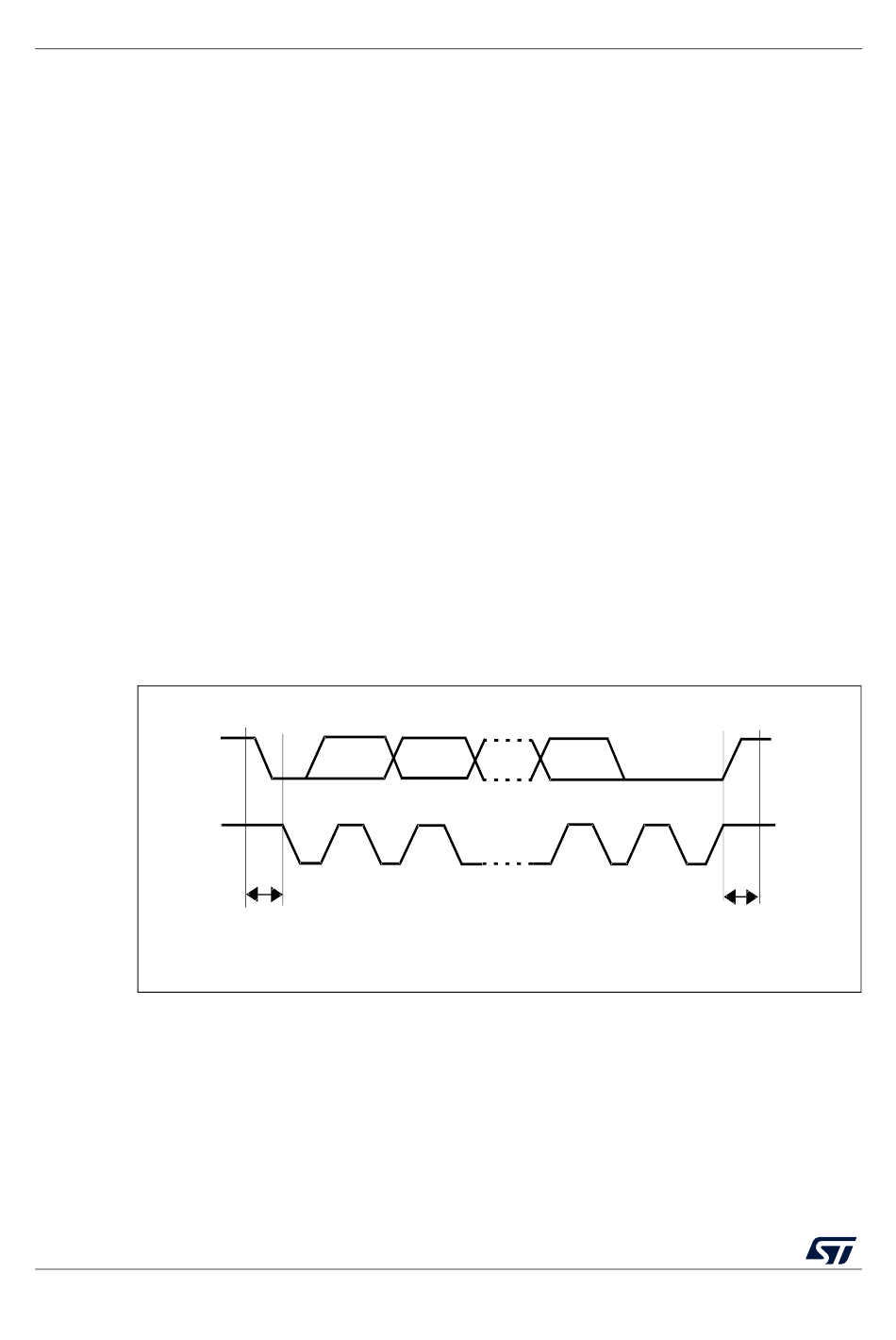

Figure 276. I
MSB
1
Start
condition
RM0453 Rev 1
2
C bus protocol
2 8
RM0453
ACK
9
Stop
condition
MS19854V1
