Avaya DEFINITY Server CSI Maintenance Manual page 1876

Maintenance Objects
Backplane Adapter

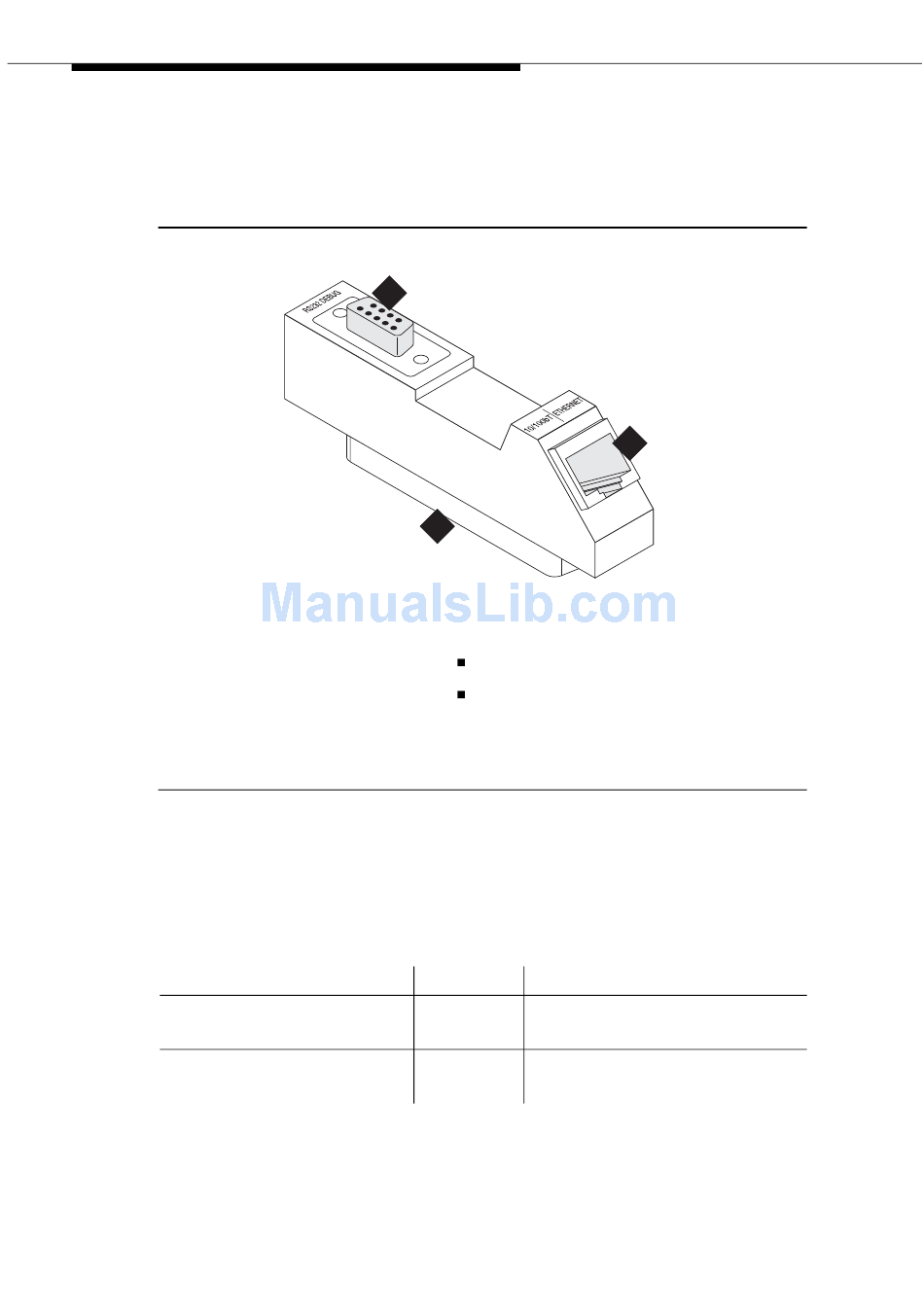

The following figure shows the Backplane Adapter (label reads IP Media
Processor).
Figure Notes:
1. Amphenol connector
attaches to the back of the
switch cabinet,
corresponding to the
TN2501AP circuit pack slot.
Figure 62. Backplane Adapter (Comcode 848525887)
LAN cable
The TN2501AP circuit pack does not include cables to connect the circuit pack to
your LAN. The following table lists the cable category and connection port.
Ethernet connection speed
10 Mbps
100 Mbps
1876
Issue 5 October 2002
3
1
addfipm2 KLC 083000
2. RJ-45 LAN cable connection
3. This connector is not used for VAL.
Cable
Category 3
Category 5
2
10 Mbps uses Category 3 cable.
100 Mbps uses Category 5 cable.
Connection description
Connects through the RJ45 jack
(note #2 in Figure
Connects through the RJ45 jack
(note #2 in Figure
62),
62),
