MONITORING SUBMENU

The Monitoring submenu shows the most important
measured values.

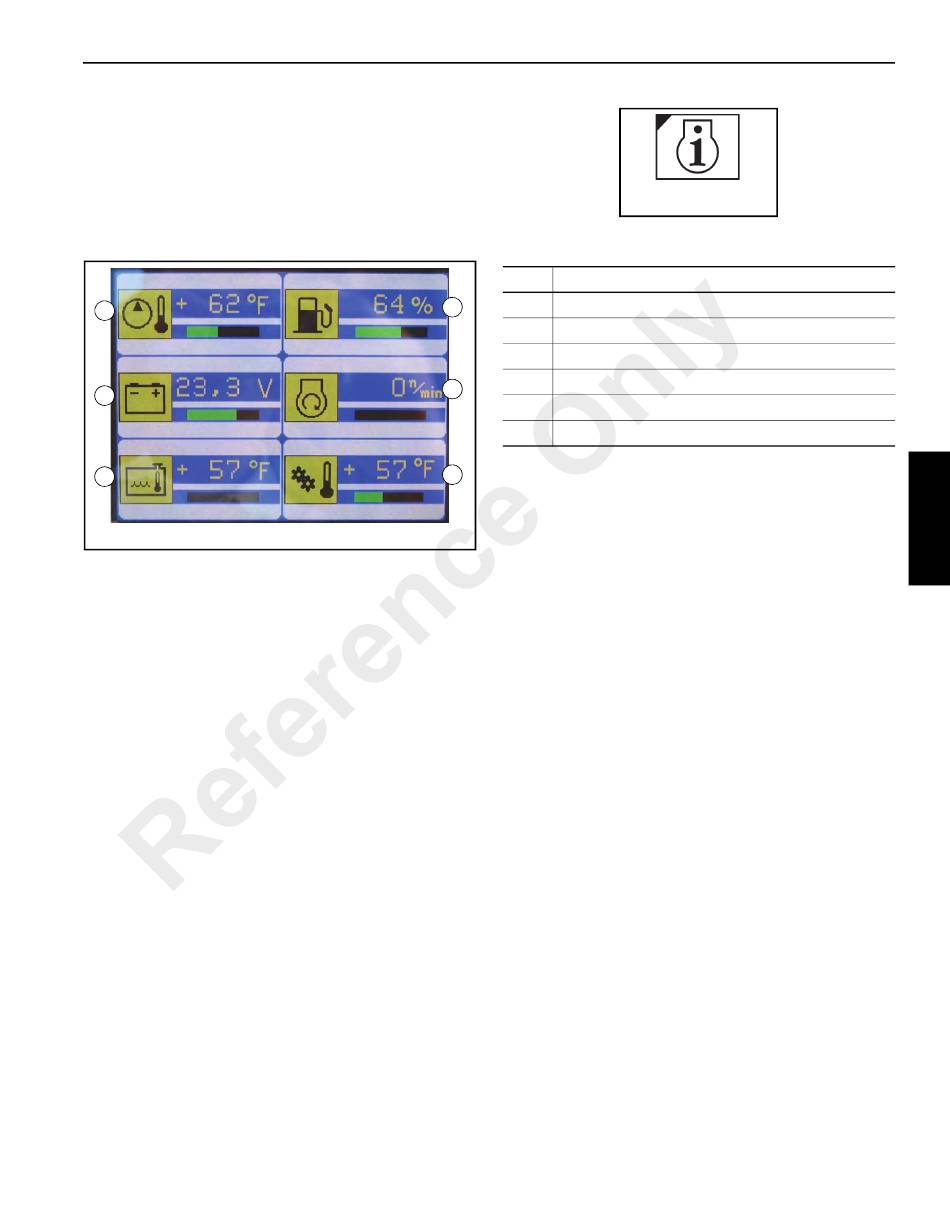

Press the monitoring submenu button (Figure 3-40) in the
main menu to open the submenu.

Monitoring Submenu

1
2
3
Grove
OPERATING CONTROLS AND PROCEDURES
Item
1
4
2
3
4
5
5
6
With the monitoring submenu open, the indicated values are
6
displayed.
The color of the bar indicates the following:
• Green: Value OK
FIGURE 3-41
• Yellow: Limit value almost reached
• Red: Maximum limit value exceeded or minimum value
not reached, refer to Warning Messages, page 3-62.
Published 2-23-2017, Control # 644-00
FIGURE 3-40
Description
Hydraulic oil temperature, in °C (°F)
Battery voltage, in Volts
Coolant temperature, in °C (°F)
Fuel supply, as a percentage
Engine speed, in RPM
Transmission oil temperature, in °C (°F)
