2.7 Power Supply

2.7:A Power Supply
Control panel
+5V
Counter PCB
Counter
+24V
Motor
Roll holder
PCB
+5V
Sensor
AC
Intermec ColorCoder V4 – Service Manual Ed. 1

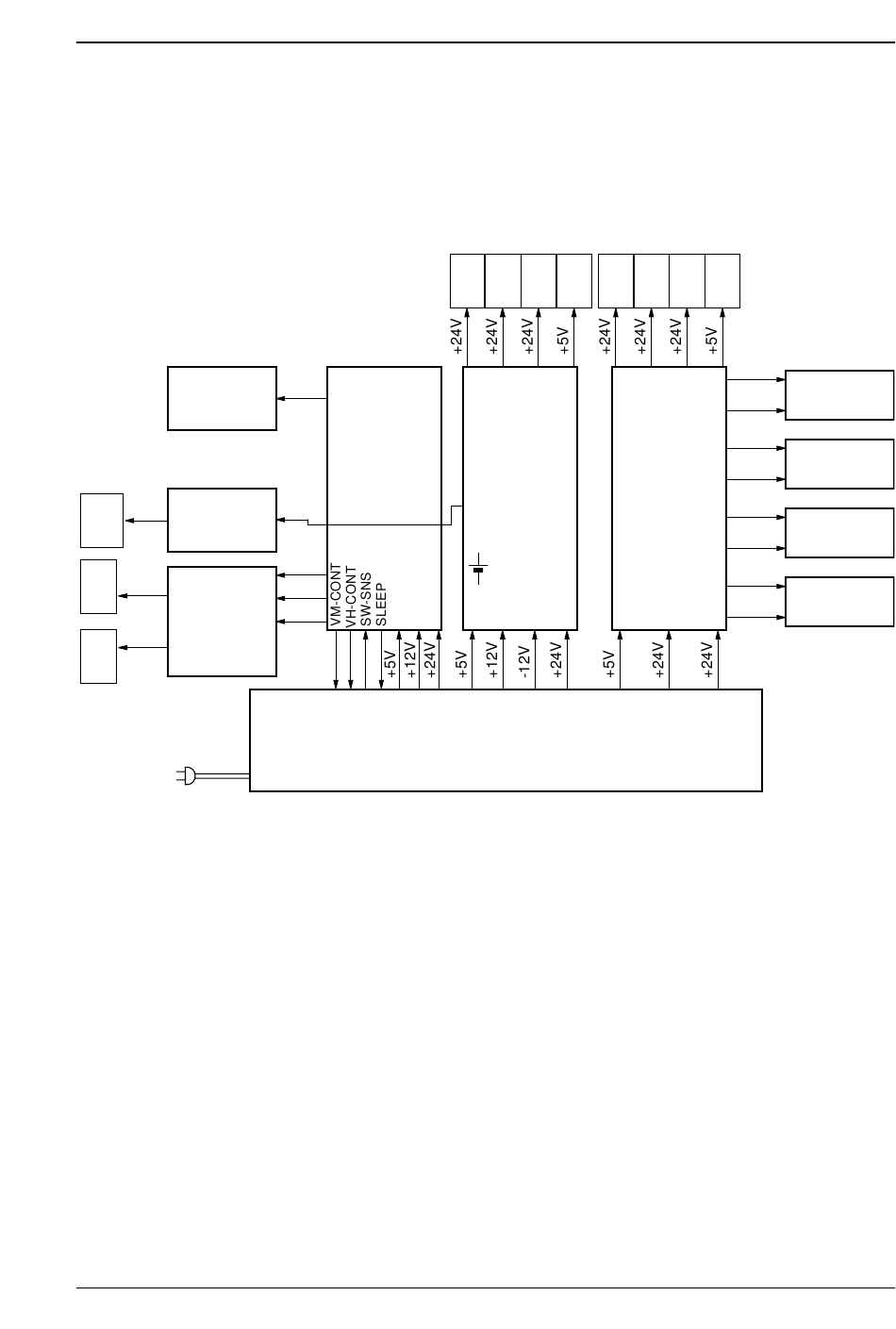

Figure 2-60 is a block diagram showing how the power is distrib-
uted within the printer.
Motor Clutch Solenoid
+5V
Formatter PCB
+5V
+5V
+12V
+24V
DC power supply unit
Figure 2-60
Chapter 2
Sensor Motor
motor
Engine 1 PCB Engine 2 PCB
Battery
BH301
Operation and Timing
Fan
Sensor
Solenoid
+5V
BJ head
+24V
+5V
BJ head
+24V
+5V
BJ head
+24V
(Magenta)
+5V
BJ head
+24V
(Black)
(Cyan)
(Yellow)
