3.2 Image Formation System, cont'd.
3.2:C Fan Unit, cont'd.
Intermec ColorCoder V4 – Service Manual Ed. 1
Detaching the Fan Unit, cont'd.

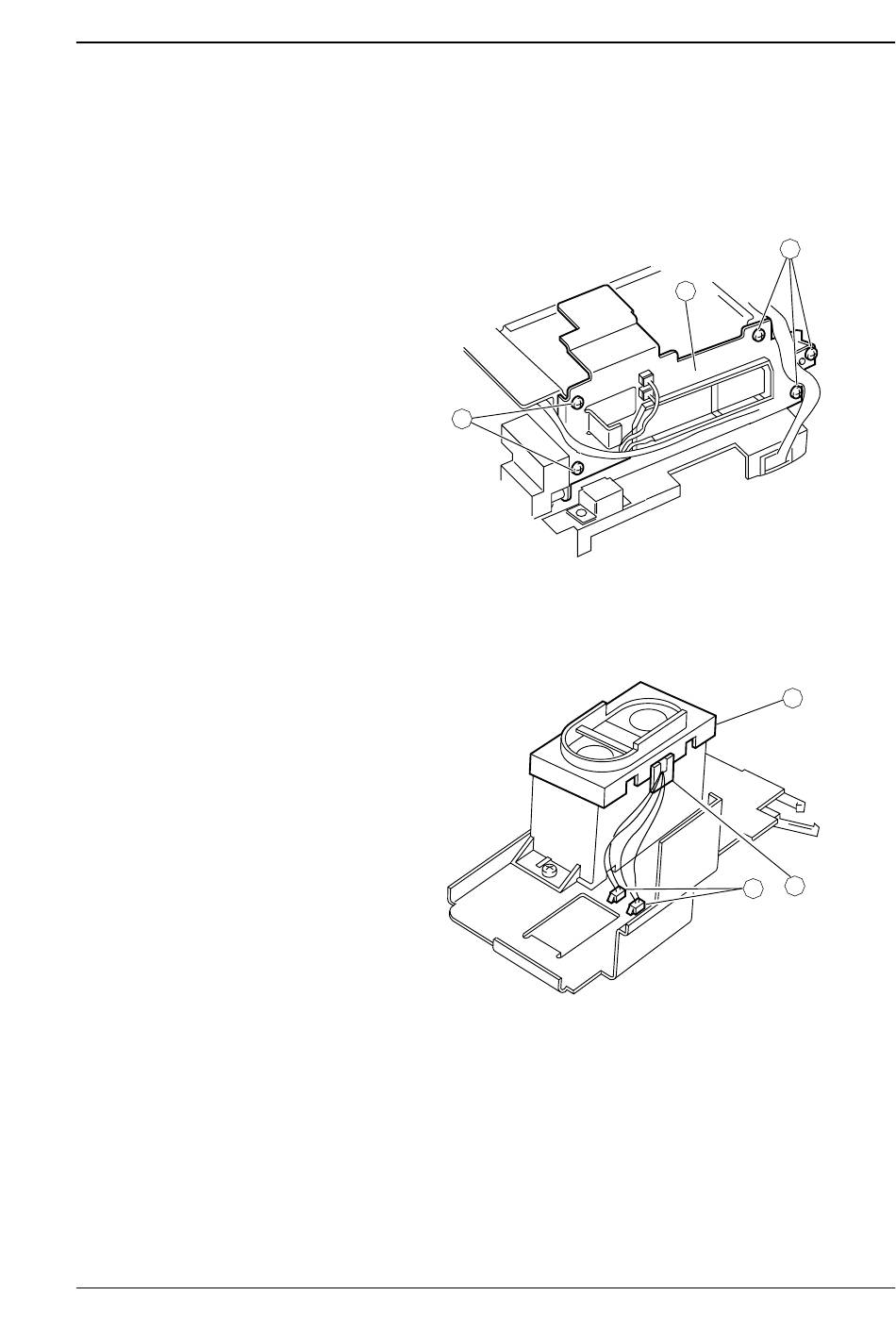

7. Remove the five mounting screws (1) from the PHS rear plate
(2), and detach the fan unit.
1
8. Disconnect the connectors J20 and J21 (1) from the back side of
the fan mounting plate, and disengage the claw (3) of the fan rear
duct (2), and then detach the fan rear duct.
9. Detach the fan motor.
Chapter 3 Mechanical System
2
Figure 3-44
1
Figure 3-45
1
2
3
