Media Supply Roll Post

EasyCoder PF4i User's Guide (IPL Version)
The EasyCoder PF4i uses a media supply roll post that can be
fitted in three different positions inside the media compartment.
The position depends on the type of side door (long or short) and
whether or not the printer is fitted with an integral liner takeup.
Alternatively, an external media supply (for example a box of fan-
folded tickets) behind the printer can be used. A rotating media
supply hub is also available as an option, see Chapter 7,
"Options" on page 67.

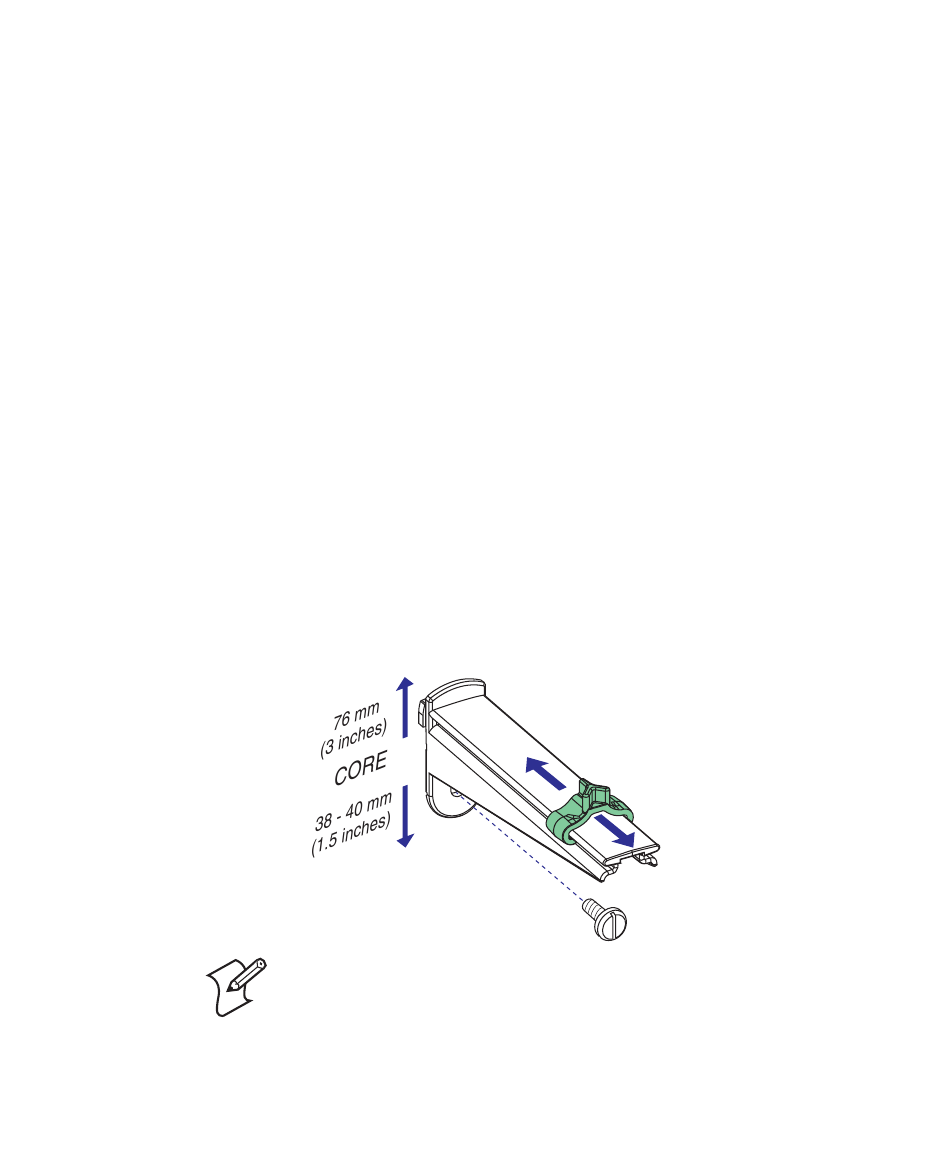

To move the post to a different slot; remove the screw, twist the
post a quarter of a turn, and pull it out.
To fit the post; rotate it a quarter of a turn, insert it into the
appropriate slot in the center section (see next page), and twist
back so the lips engage the cutouts in the sides of the slot. Move
it up (large core) or down (small core) as far as it goes and secure
it with the screw.
The media supply roll post fits both 38-40 mm (1.5 inches) and
76 mm (3.0 inches) cores since it can be moved vertically in the
slot in the center section. The bottom position is intended for
small cores and the top position is for large cores. The post is
locked by a straight-slot screw and has a moveable edge guide to
fit various media widths.
Note: Make sure to adjust the position of the post according to
the size of the media roll core. When the post is fitted in the top
position, the head of the screw will interfere with small (38 mm/
1.5 inches) cores, causing media misalignment.
