6.3 Test Print, cont'd.
6.3:B Test Patterns, cont'd.
Intermec ColorCoder V4 – Service Manual Ed. 1
2-INCH FEED PATTERN
"2-INCH FEED PATTERN" is similar to "4-INCH FEED PAT-
TERN". Objective and method of registration adjustment are the
same as in the "4-INCH FEED PATTERN". (See Chapter 6.3:B 4-
Inch Feed Pattern.)
Vertical linearity check pattern
Chapter 6 Troubleshooting
Horizonal linearity
check pattern

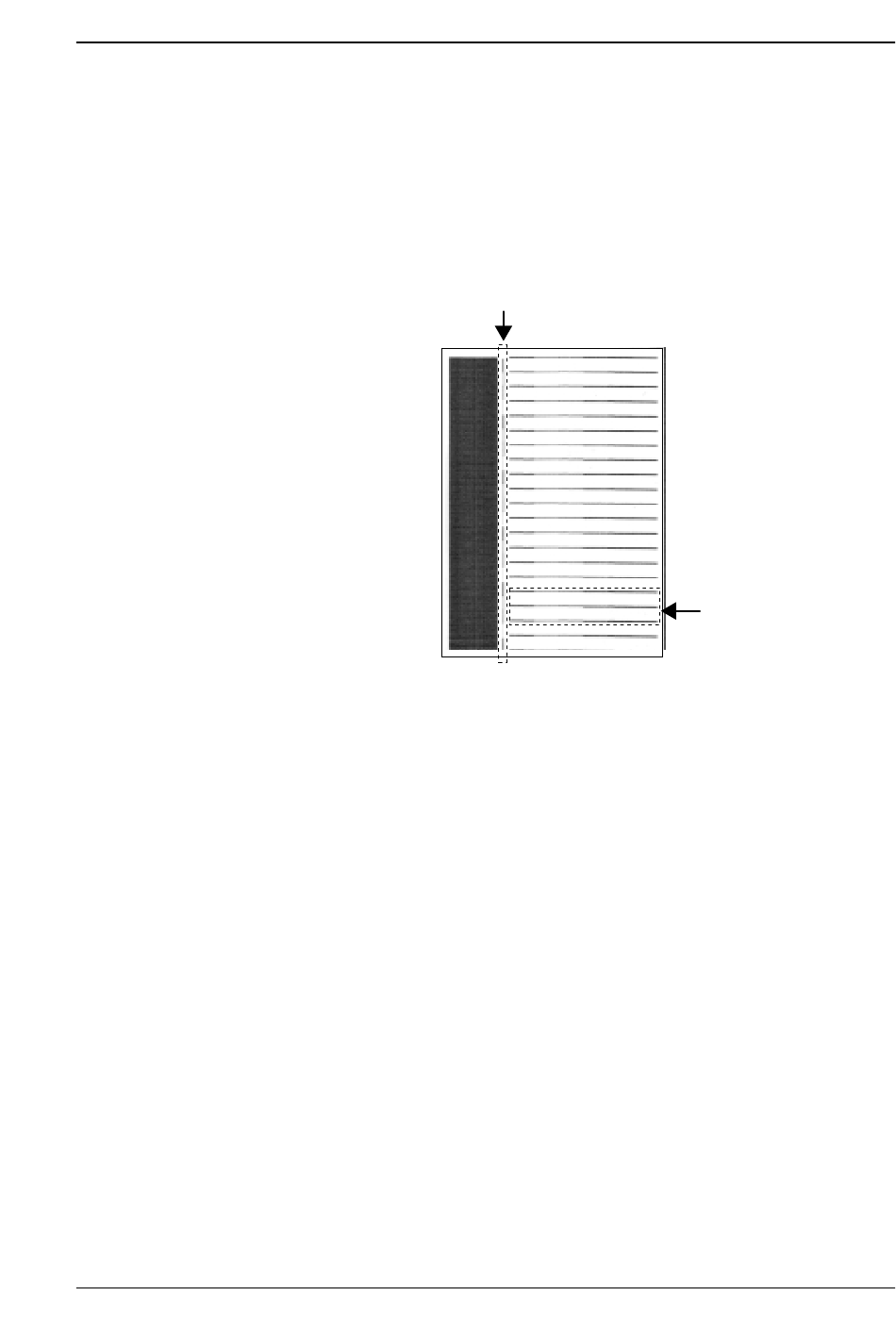

Figure 6-10
