3.2 Image Formation System, cont'd.
3.2:C Fan Unit, cont'd.
Intermec ColorCoder V4 – Service Manual Ed. 1
Detaching the Fan Unit, cont'd.
5. Remove the two mounting screws (2) from the tube station (1),
and detach the tube station.
6. Disconnect the connectors J20 and J21 (1). Detach the tie-wraps
(2), and then remove the wiring cable.
Chapter 3 Mechanical System
1
2

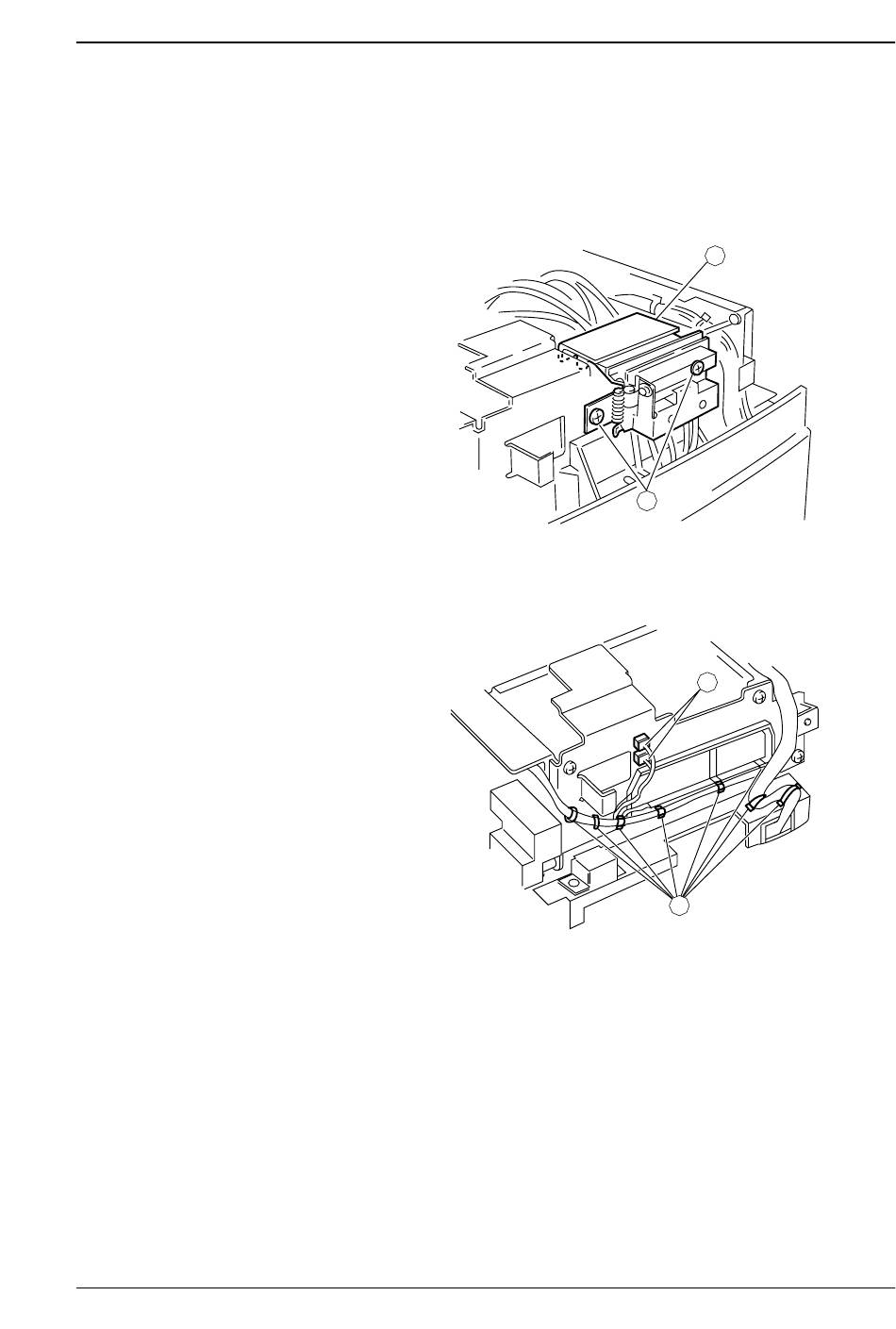

Figure 3-42
1
2
Figure 3-43
