3. Mechanical System
General Instructions
1. Disconnect the power cord for safety before disassembly or reassembly work.
2. Group the screws by type (length and diameter) and location.
3. The fixing screw for the grounding wire and varistors is fitted with a washer to ensure electric
continuity; be sure to use the washer for reassembly.
4. As a rule, avoid operating the machine with any of its parts removed.
5. Unless otherwise noted, re-assembly is the reverse of disassembly.
3.1 Externals

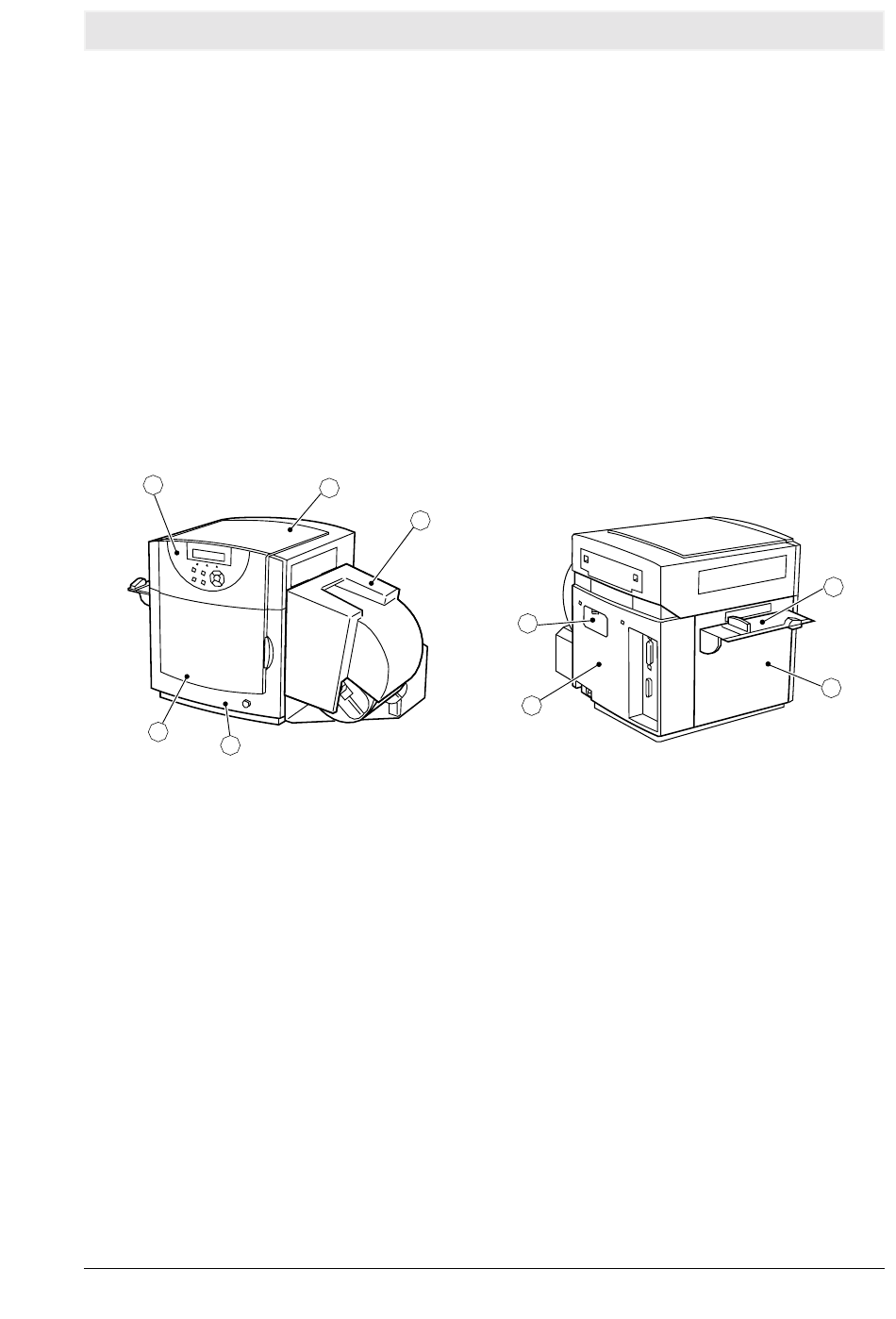

3.1:A External Covers
1
3
8
Figure 3-1
Intermec ColorCoder V4 – Service Manual Ed. 1
2
7
1. Control panel (2)
2. PHS cover (2)
3. Front cover
4. Left cover (2)
5. Rear cover (3)
6. Sub cover
7. Roll cover
8. Inner cover (2)
9. Manual cutter [tightened together with the (2) left cover]
Note:
The number in parentheses indicates the number of mounting
screws used.
Detach the covers as necessary to clean, inspect, or repair the inside
of the printer. Those that can be detached by mere removal of the
mounting screws without detaching any others in advance are omit-
ted from the discussions.
6
5
Figure 3-2
Chapter 3
9
4
