6.4 Head Shading, cont'd.
6.4:B Procedure to Make HS Data,
cont'd.
Intermec ColorCoder V4 – Service Manual Ed. 1
Partial rewrite of specific BJ HS, cont'd.
A. "Extracting from existing HS file"
1. Specify the existing file from which colour data is extracted by
clicking "OK", in the way, new HS data file is created.
2. Copy the new HS data file to the customer's host computer,
(Replacement with the old data.) and finish the setting-up work.
Execute test printing and confirm that it is printed properly.
B. "Read in from scanner"
1. Set the test chart into the inlet of the scanner. Press the START/
STOP button of the scanner. Click
Chapter 6 Troubleshooting

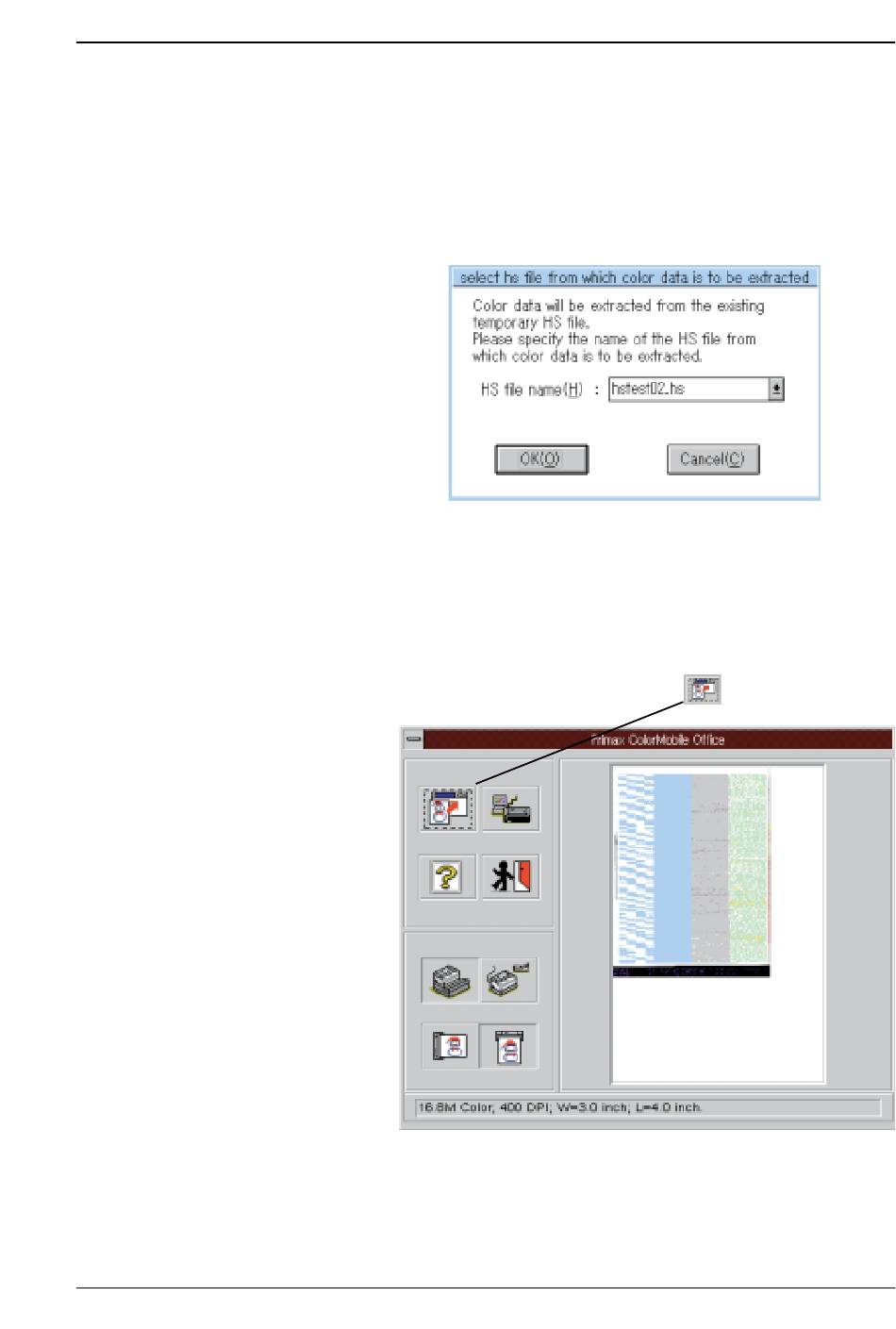

Figure 6-32
in the twain display.
Figure 6-33
