3.4 Pick Up/Feeder System, cont'd.
3.4:B Feeder Unit, cont'd.
Intermec ColorCoder V4 – Service Manual Ed. 1

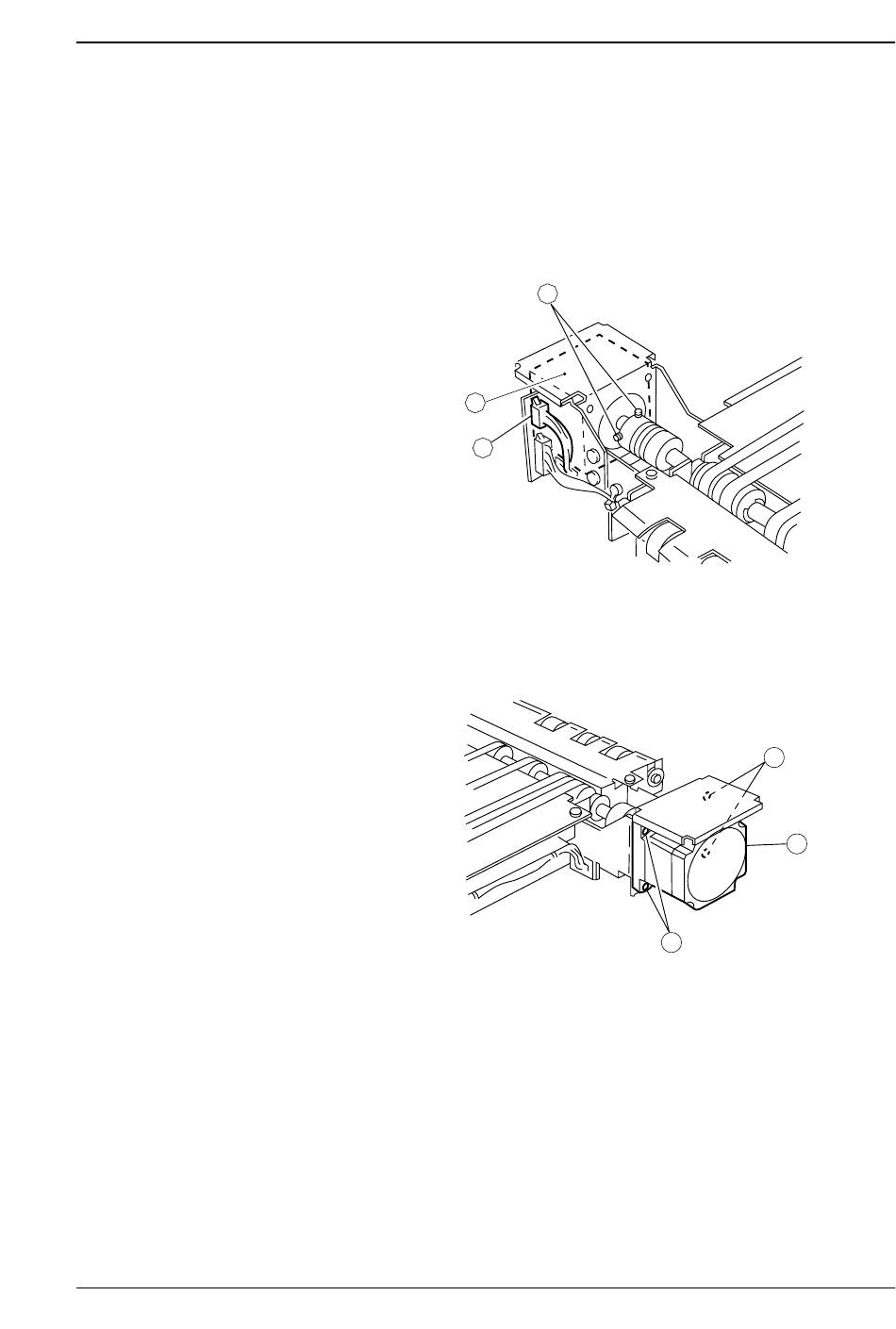

Detaching the Feed Motor
1. Loosen the two joint mounting screws (2) on the side of the feed
motor (1) with a hex wrench.
2. Disconnect the connector J8 (3).
1
3
3. Remove the four mounting screws (2) of the feed motor (1), and
detach the feed motor.
Chapter 3
2
Figure 3-99
2
Figure 3-100
Mechanical System
2
1
